EN Installation
03/2020 15 / 84

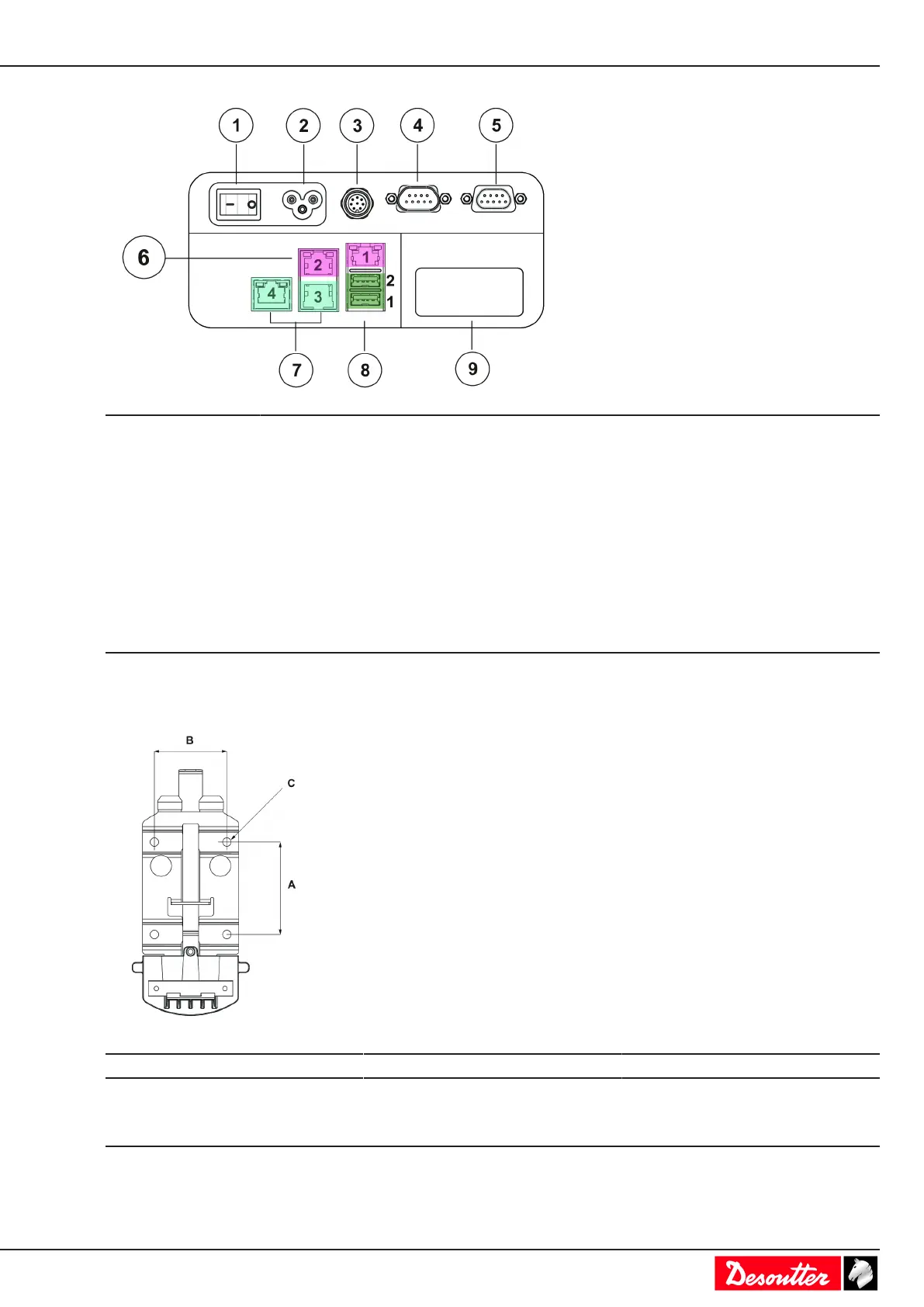

Inside panel
1 ON/OFF switch
2 Plug for power cord
3 24 V DC connector
4 RS232 port
5 eBUS port
6 Ethernet ports 1 and 2
7 Ethernet ports 3 and 4
Port 4 is a PoE Ethernet port.
"PoE" stands for "Power over Ethernet"
8 2 USB ports
9 Fieldbus module slot
Installing the wall mounting kit
Use the following drilling template to properly install the wall-mounting kit.
mm in.
A 70 2.76
B 55 1.16
C 6.5 0.26
Mount the wall-mounting kit on the rail or wall.
