LAC Series Oven Owner’s Manual ASSEMBLY & SETUP
Version 106 23
Copyright © 2011 by Despatch Industries.
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.
Power cord
fitting or
conduit
Access plate to
assist in tightening
conduit fitting
4.2.3.1. Wire LAC-6 Models 2-12 and 2-18
For units that must be hardwired or where a power cord is
shipped loose, run the power lines from the rear of the oven to
the front control panel.
1. Open the knock-out near the rear-access panel (Figure 6).
2. Turn hinged front panel latches ¼ turn for easy access to access power connection
(Figure 7).

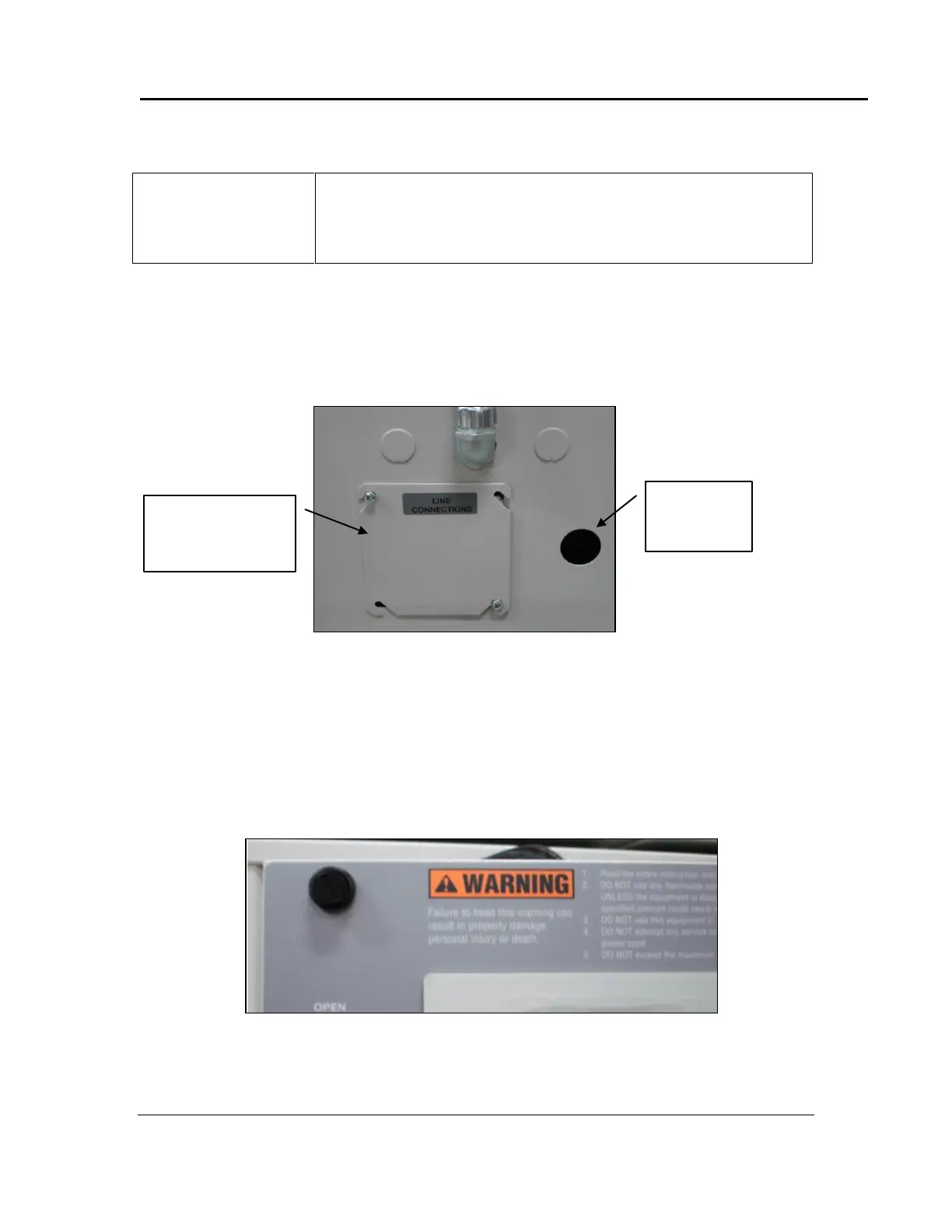

Figure 6. Rear Access Panel for Hard-Wired Connections.
Figure 7. Hinged Panel for Simpler Access to Power Connections.
