ASSEMBLY & SETUP LAC Series Oven Owner’s Manual
24 Version 106
Copyright © 2011 by Despatch Industries.
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.
3. Connect power at main circuit board (access by opening hinged control panel),
terminals L1 and L2 (Figure 8).
a. Tighten terminals on the circuit board to 10.6 to 13.2 lb-in (1.2 to 1.5 nM)
b. Attach the ground wire to the ground buss on the panel.
c. Close hinged control panel after attaching the power supply wires or cord.
Connect
power at
main circuit
board
terminals L1
and L2.

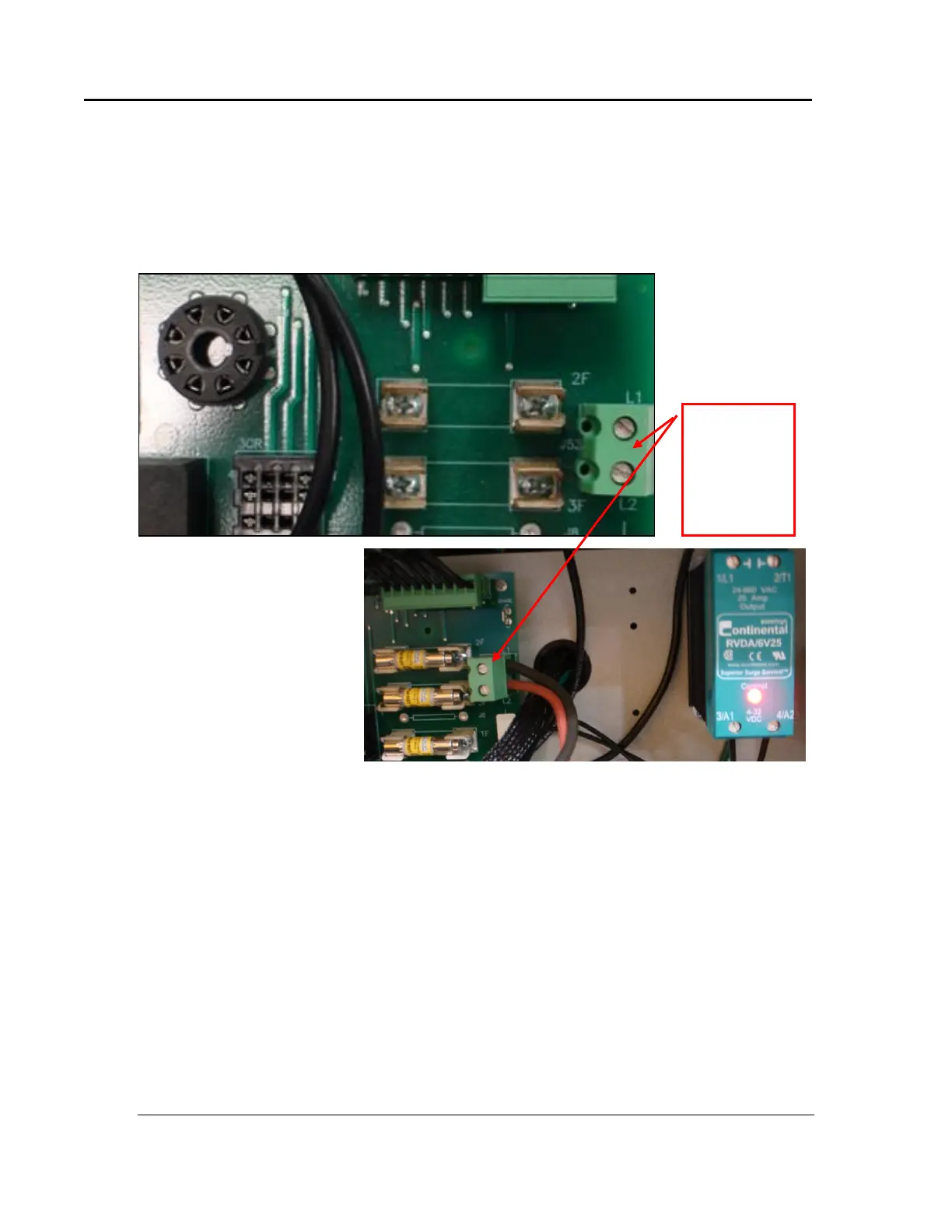

Figure 8. Power Connections at Main Circuit Board.
