MAINTENANCE LAC Series Oven Owners Manual
32 Version 106
Copyright © 2011 by Despatch Industries.
All rights reserved. No part of the contents of this manual may be reproduced, copied or transmitted in any form or by any
means including graphic, electronic, or mechanical methods or photocopying, recording, or information storage and
retrieval systems without the written permission of Despatch Industries, unless for purchaser's personal use.
2. Remove side walls by removing the screws on the
front edge of each panel (Figure 11).
3. Disconnect the heater leads from heater element with
wrench.
4. Unscrew the screws holding the heater frame to the
oven body (Figure 12).
5. Remove heater and discard.
6. Screw down the new heater frame.
7. Attach the heater leads to appropriate
terminals.
8. Replace and screw in interior floor and side
panels.
6.5.3. Replace Fan Motor
Tools needed: T20 Torx bit driver, 5/32 inch Allen wrench, one quarter (¼) inch socket
set
1. Remove the floor plate.
a. Remove the screws from the floor plate (Figure 9).
b. Lift the floor plate out of the oven to expose heater panel/inlet cone
(Figure 10).
c. Lift the floor plate out of the oven to expose heater panel/inlet cone
(Figure 10).
2. Remove side walls by removing the screws on the front edge of each panel
(Figure 11).
3. Disconnect the heater leads from heater element with wrench.
Before disconnecting leads, carefully
diagram (or note) which wires connect to
which terminals.

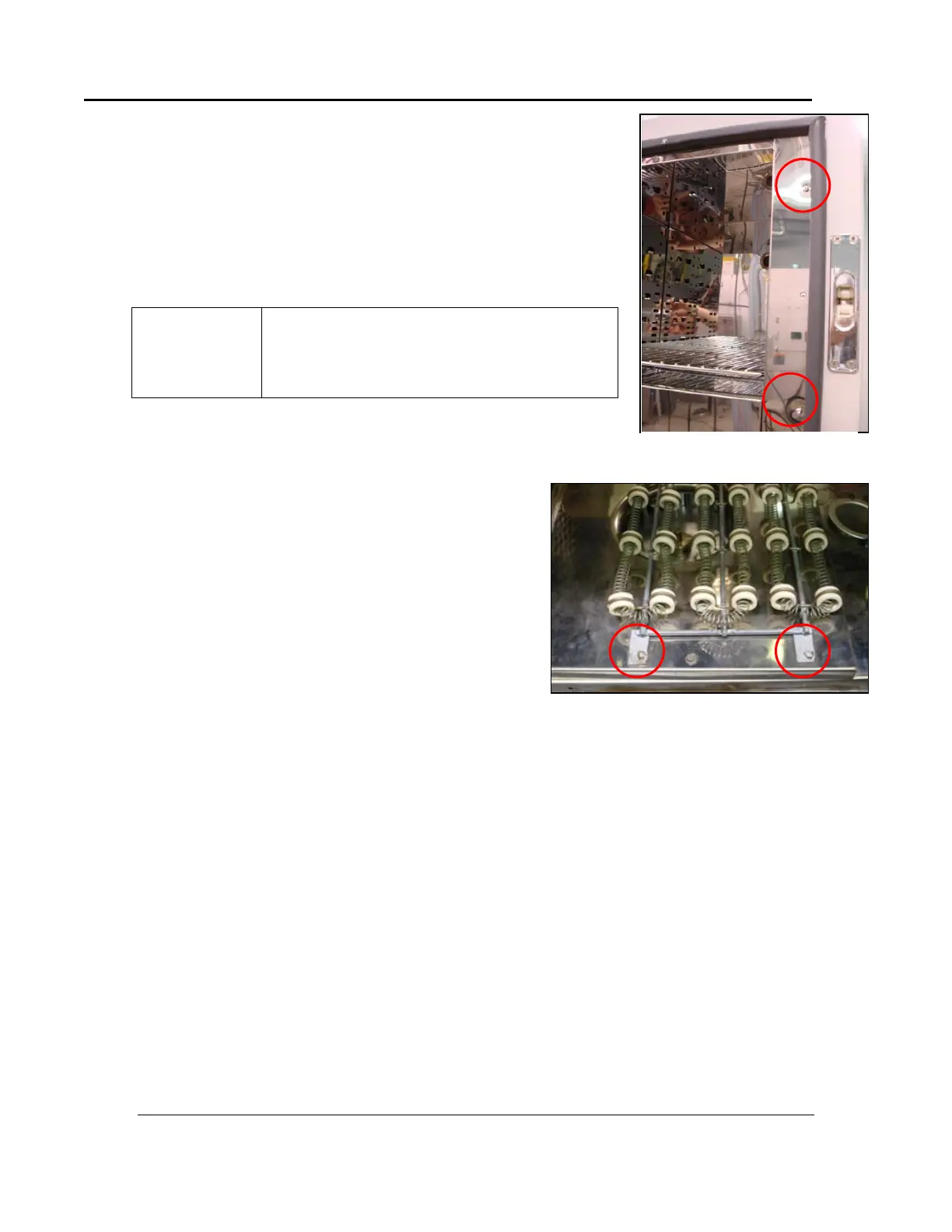

Figure 11. Remove Screws to
Remove Side Panels.
Figure 12. Remove Heater Panel by Removing
Screw in Front Edge of Each Panel.
