PARTS IDENTIFICATION
FINAL ASSEMBLY, CONT.
ITEM QTY PART NUMBER DESCRIPTION
1 2 0065-B610-08 BUSHING
2 2 0065-B613-08 CYLINDER SLIDE
3 2 0065-B621-08 BUMPER MOUNT
4 1 0065-b638-0A INDICATOR CABLE 7550
5 2 0065-C609-08 PIVOT BLOCK
6 2 0065-C618-08 FRAME COVER
8 1 0065-D630-08 DECK, 7550
9 1 0065-D639-0A SUPPORT TRAY ASSEMBLY
10 1 0065-D640-0A FRAME ASSEMBLY
11 2 6021-1058 SCW TRUSS-HEAD MACHINE-SCW 10-32X.375
12 2 6021-1246 SCW SHOULDER.. SOCKET HEAD 5/16-18X1.0”
13 4 6021-1801 SCW FLAT-HEAD. SOCKET CAP
.25-20X.375 BLACK OXIDE
14 28 6021-2033 SCW BUTTON-HD. CAP-SCREW.. 10-32X.25
15 2 6031-0219 CYLINDER, GAS SPRING, 191 LBS,
TWO SOCKET 8 INCH STROKE
16 2 6031-0221 CYLINDER, GAS SPRING, 191 LBS,
ONE SOCKET 8 INCH STROKE
17 AR 6050-3049 GREASE, FOOD GRADE, MOLYKOTE G-4500 14OZ
18 AR 6560-1125 ADHESIVE LOCTITE 242 THRDLCKR, REMOVABLE
19 3 6610-5007 CABLE CLIP, 1” X 1” GREY
20 2 6680-0021 SPACER NYLON 1.000 OD X .450 ID X .219 LONG
21 2 8529-B215-08 SUPPORT, TRAY
30
1 0065-C641-08 MAT-DECK, 7550
NOT SHOWN

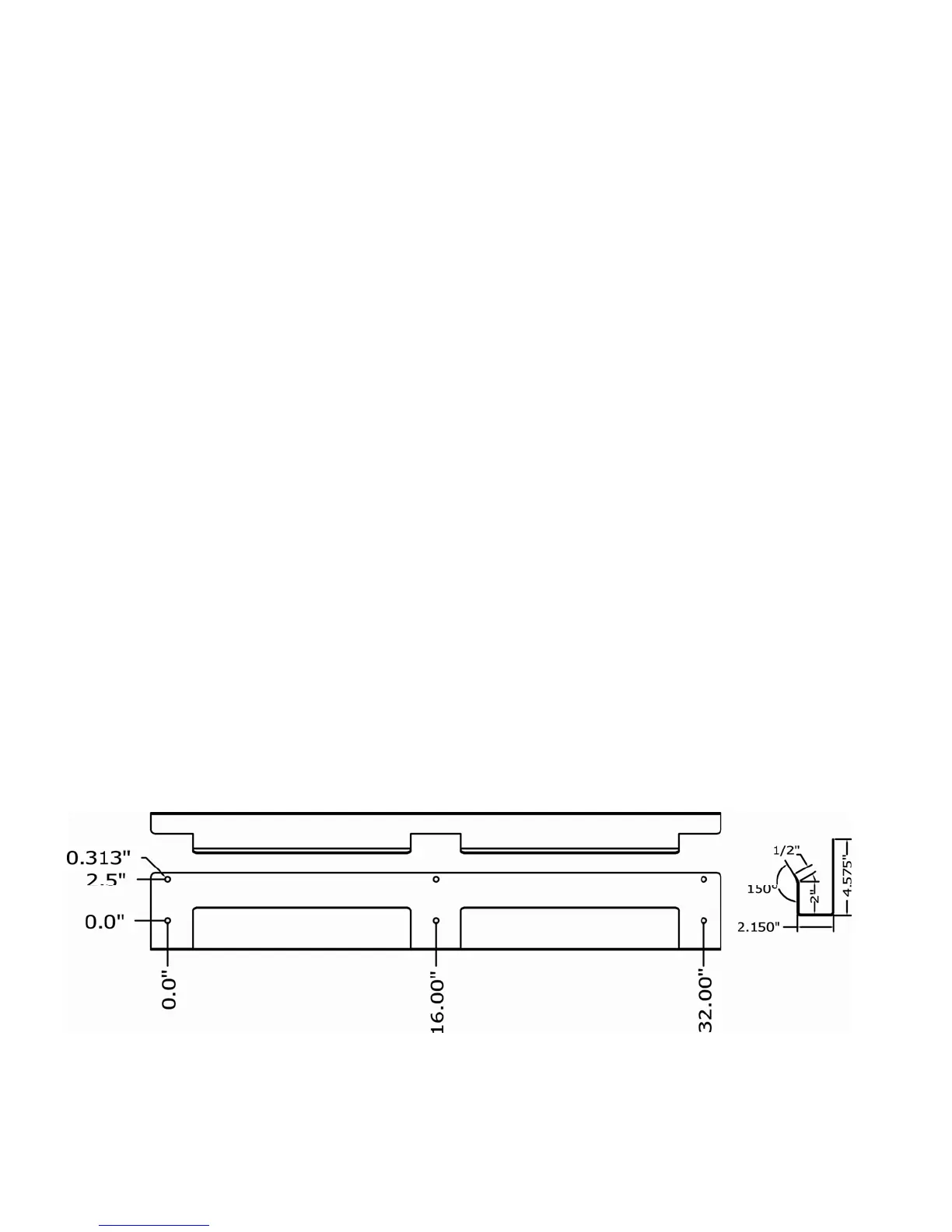

7550 WALL MOUNT (0065-C623-08) AND HOLE SPACING
0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE
