0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE
6
Step 2 – Install the Wall Mount
NOTE: Due to the various types of wall construction, no mounting hardware is
furnished with the scale. Appropriate mounting hardware suitable to the wall’s
construction will need to be obtained to secure the wall mount to the wall.
The wall mount allows the scale to be adjusted up or
down and left or right to accommodate floors that
may not be perfectly flat. This insures the accuracy
of the weighing platform and prevents undue stress
to the scale.
The wall mount should be secured to the wall using
mounting hardware suitable to the wall’s construction.
The six (6) holes (in groups of two, sixteen (16) inchs
apart) in the wall mount allow for 1/4" hardware to be
used to secure the wall mount to the wall.
1. Determine the desired location where the scale is
to be mounted.

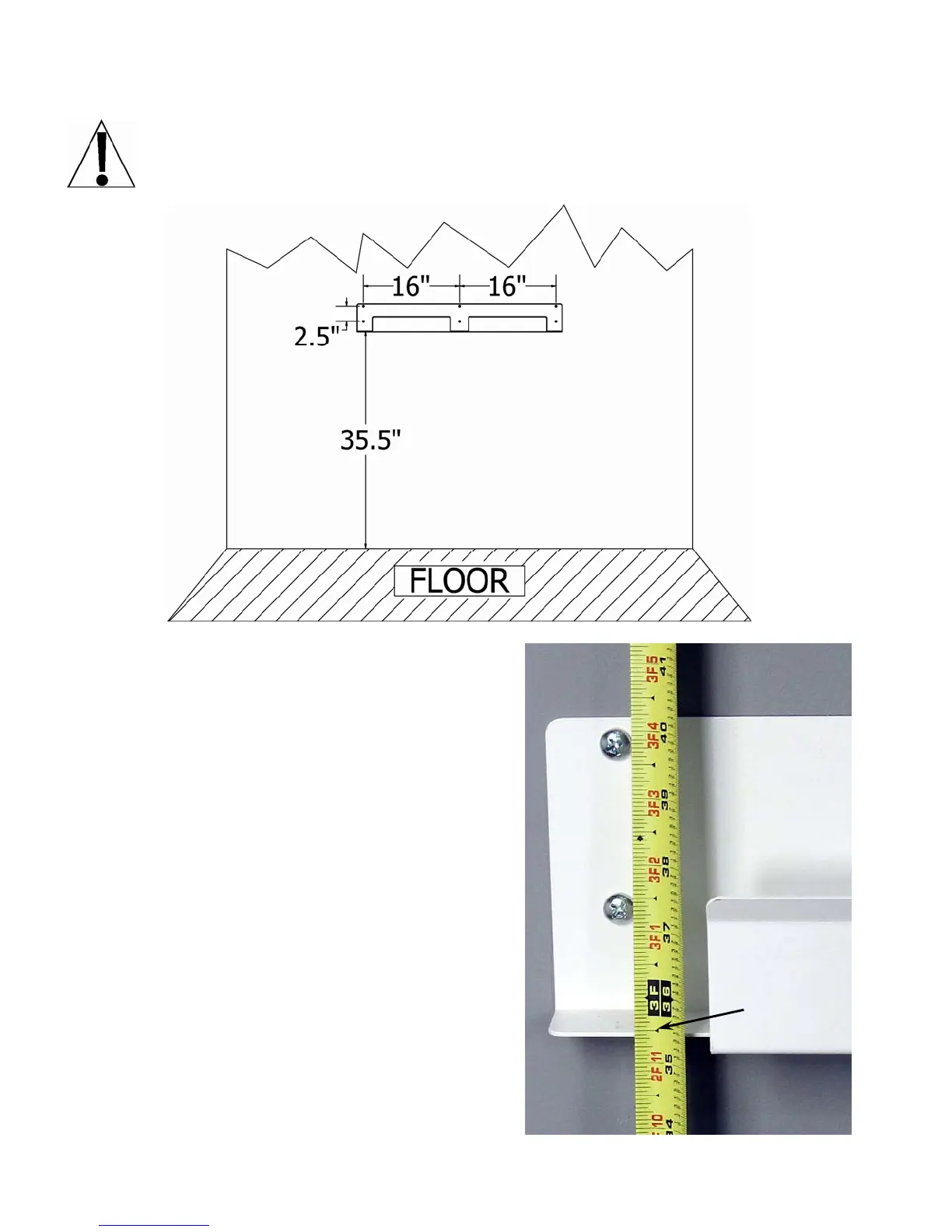

2. With an assistant, place the wall mount against
the wall. Insure it’s level and 35 1/2” from the top
edge of the wall mount to the floor.
3. Mark the holes to mount the wall mount.
4. Remove the wall mount and drill the required
diameter holes for the mounting hardware used.
5. Fasten the wall mount to the wall.
35 1/2”
Top Edge
to Floor
