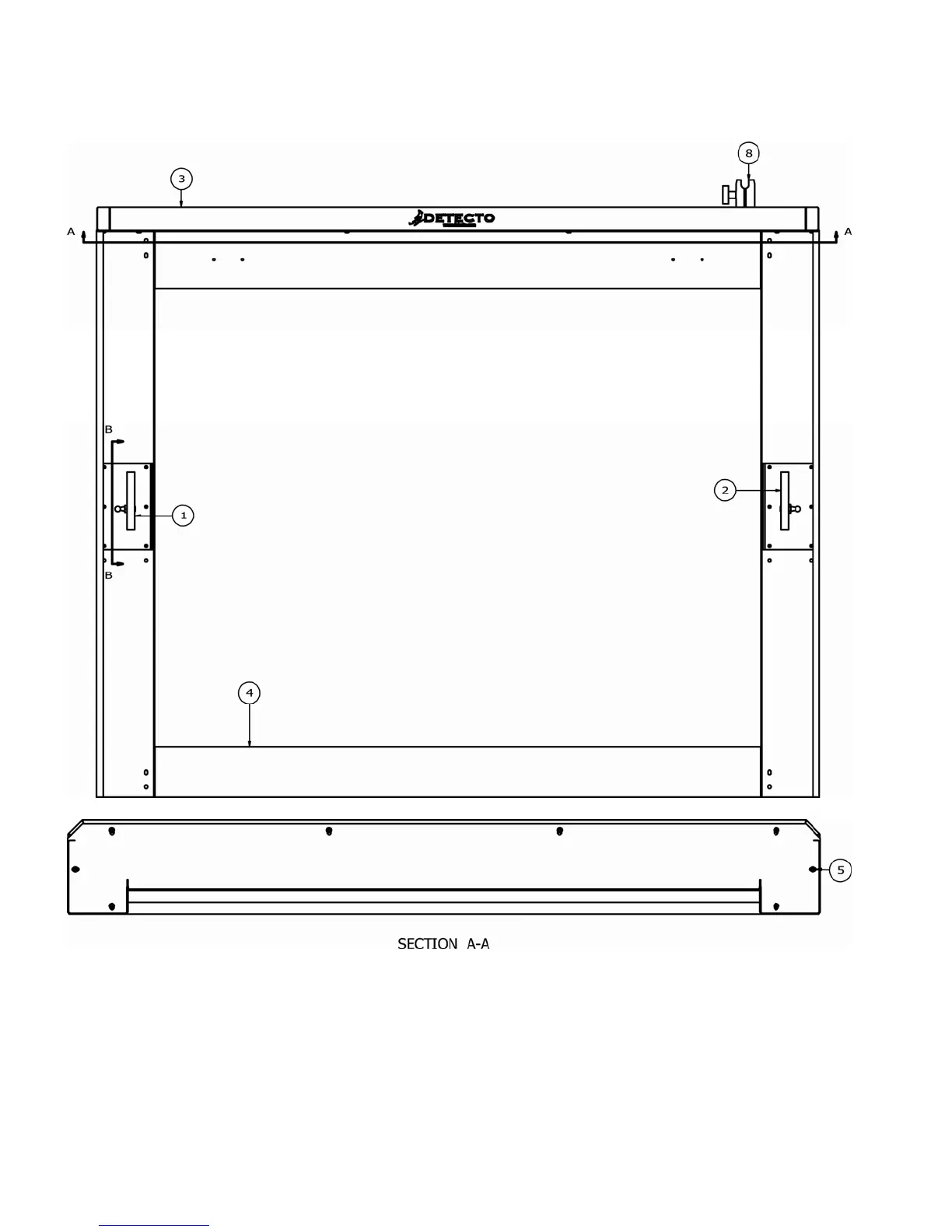

PARTS IDENTIFICATION
FRAME ASSEMBLY
ITEM QTY PART NUMBER DESCRIPTION
1 1 0065-C624-0A CYLINDER MOUNT WELDMENT LEFT
2 1 0065-C624-1A CYLINDER MOUNT WELDMENT RIGHT
3 1 0065-D620-08 TOP COVER
4 1 0065-D625-0A FRAME WELDMENT
5 20 6021-2033 SCW BUTTON-HD. CAP-SCREW.. 10-32X.25
8 1 8555-B519-0A MEDVUE MTG KIT ASSY
0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE
