0065-0647-0M Rev A 7550 FOLD-UP STATIONARY SCALE
3
INSTALLATION
Location
The scale should be installed in a location with a flat, level floor. Note that the weighing
platform will not sit completely against the floor. This will not affect the accuracy of the scale
as the weighing platform will settle to the floor when the patient is placed on the scale.

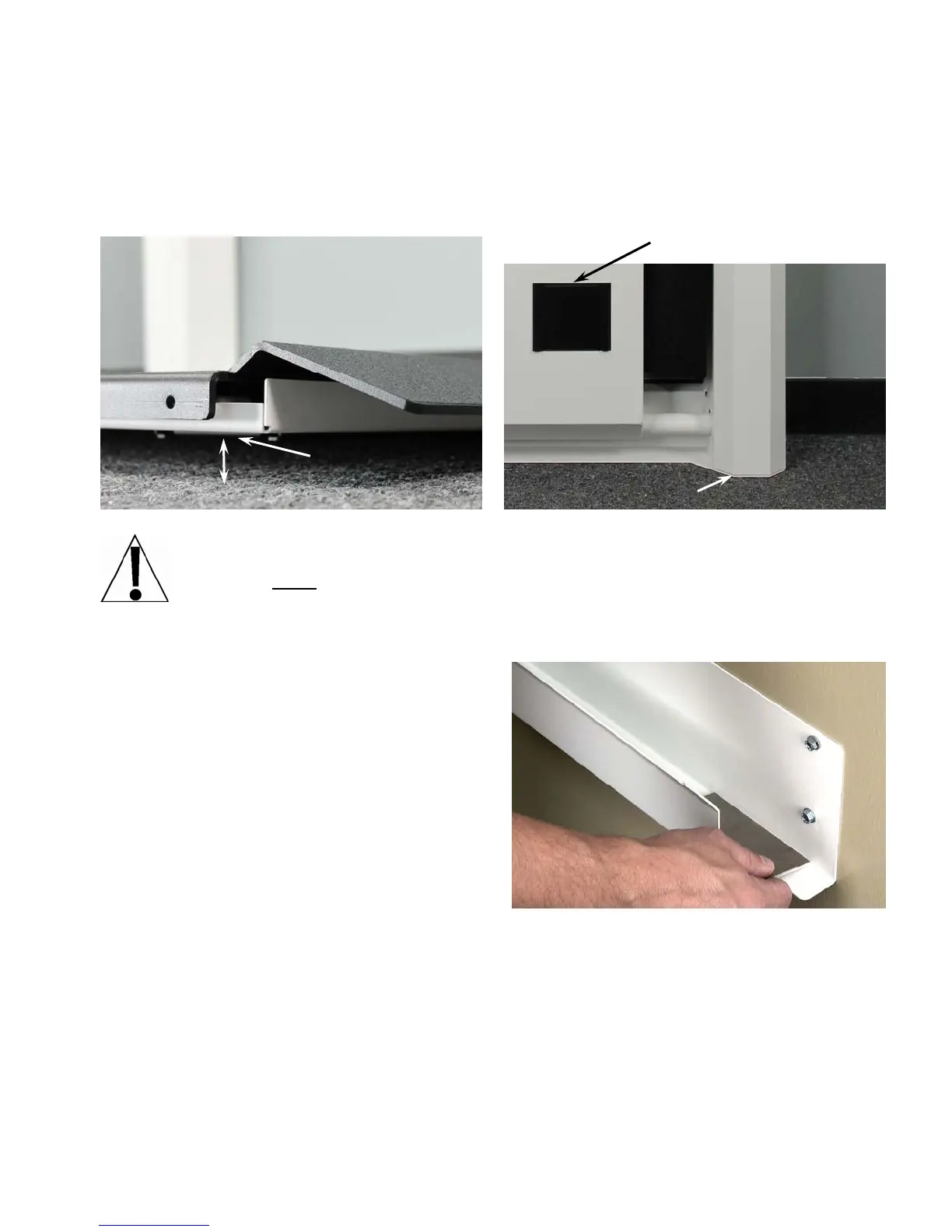

The front load cells of the weighing platform will be off the floor. The back
load cells must
Back Load Cell
Front Load Cell
1/8” – 1/4” Clearance
be sitting completely on the floor.
There should be 1/8” to 1/4” clearance between
the sides of the scale frame and the floor. This
clearance is required for the lift mechanism to
imperfections with the floor or wall mount
installation that sits the wall mount too low and
prevents the scale from closing completely. If
the wall mount is too high the back load cells
will not touch the floor when the weighing
platform is lowered. If the wall mount is too
high, the wall mount must be moved lower on
the wall or the scale will not function correctly.
NOTE: It may be necessary to remove any base molding/chair rail/wall guard or to remove a
section of the base molding/chair rail/wall guard to provide space to mount the scale in a true
vertical position. An alternative method would be to shim the wall mount away from the wall to
accommodate any base molding/chair rail/wall guard.
close completely. The included shims can be
used to raise the scale if there are slight
To Next Page
