Step 3 – Routing the Load Cell Cable
1. With the help of an assistant, raise the scale to the upright position.
NOTE: DO NOT lift the scale by the shipping strap to raise to the updright
position. Refer to the note and picture in “Step 1 – Unpack the Scale”.
2. On the back of the scale, locate the load
cell cable and the large cut-out in the scale
frame.

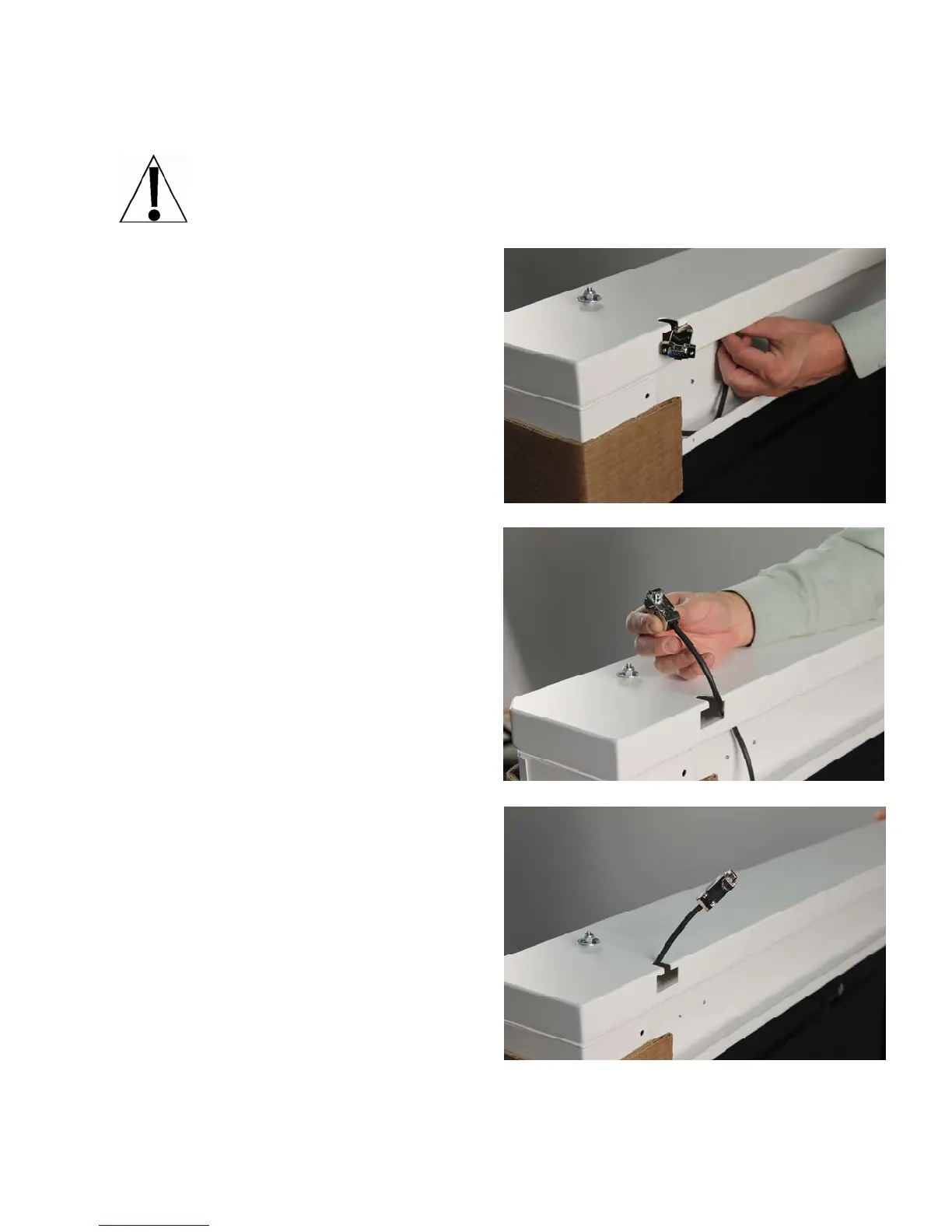

3. Feed the load cell cable through the large
cut-out in the back of the scale frame.
4. Continue feeding the load cell cable
through the scale frame and up through the
notch in the top of the scale frame.
