Panel Indicators and Appointments

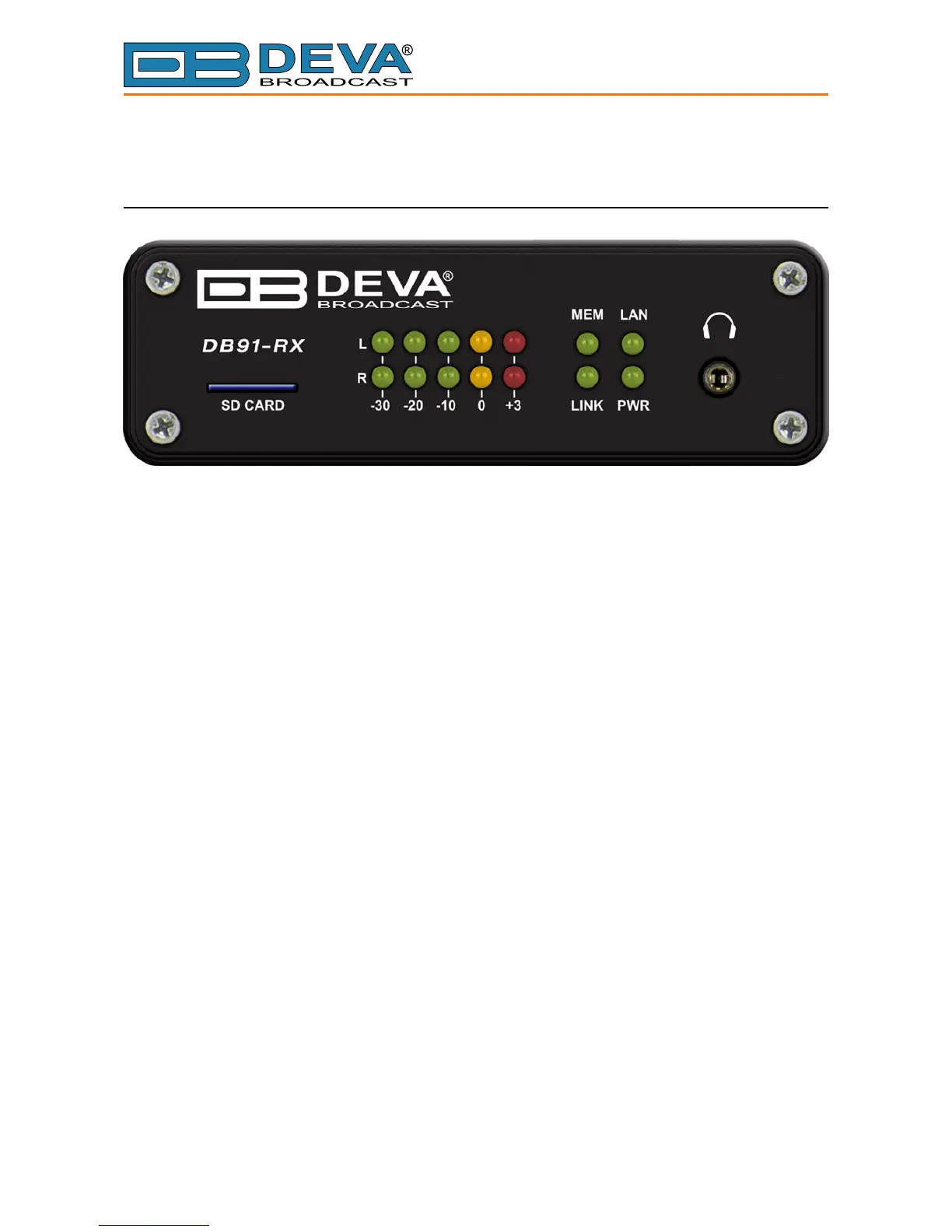

FRONT PANEL
1. SD Card
2. L & R LED Meters – The full-time LED meters allow quick and easy monitoring of the Left
and Right Audio channels.
3. MEM LED – microSD card status indicator.
4. LAN LED – Network status indicator
5. LINK LED – Connection status Indicator. This LED can be in one of the following states:
- Off – NO active IP connection;
- Blinking – at least one IP connection is active;
6. PWR LED Meter – Power LED Indicator
7. Phones Output – The following audio signals are reproduced through the headphones:
- Voice Announcement of DB91-RX IP Audio Encoder’s IP address upon startup;
- Audio signal from the currently active audio source.
