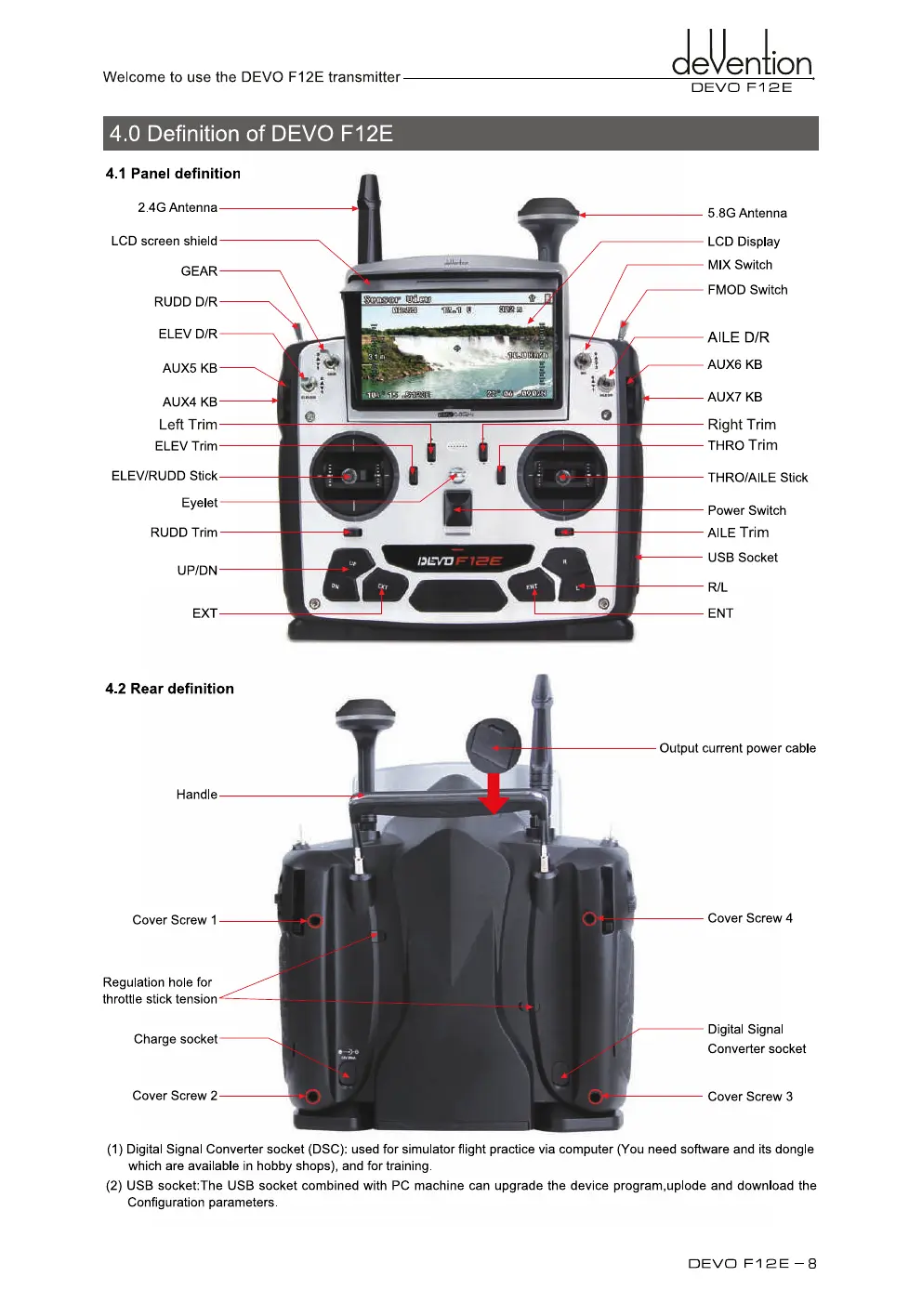

DEVO Fl 2E
4.0 Definition of DEVO F12E
4.1 Panel definition
2.4G Antenna
LCD screen shield
GEAR
RUDD D/R
ELEV D/R
AUX5 KB
AUX4 KB
Left Trim
ELEV Trim
ELEV/RUDD Stick
Eyelet
RUDD Trim
UP/DN
EXT
4.2 Rear definition
Handle
Cover Screw 1
Regulation hole for
throttle stick tension
Charge socket
Cover Screw 2
5.8G Antenna
LCD Display
MIX Switch
FMOD Switch
AILE D/R
AUX6 KB
AUX7 KB
Right Trim
THRO Trim
THRO/AILE Stick
Power Switch
AILE Trim
USB Socket
R/L
ENT
Output current power cable
Cover Screw 4
Digital Signal
Converter socket
Cover Screw 3
(1)
Digital Signal Converter socket (DSC): used for simulator flight practice via computer (You need software and its dangle
which are available in hobby shops), and for training.
(2)
USB socket:The USB socket combined with PC machine can upgrade the device program,uplode and download the
Configuration parameters.
DEVO Fl 2E —8
