HDS7105
5. Interface Specification
5.2 Interface Introduction

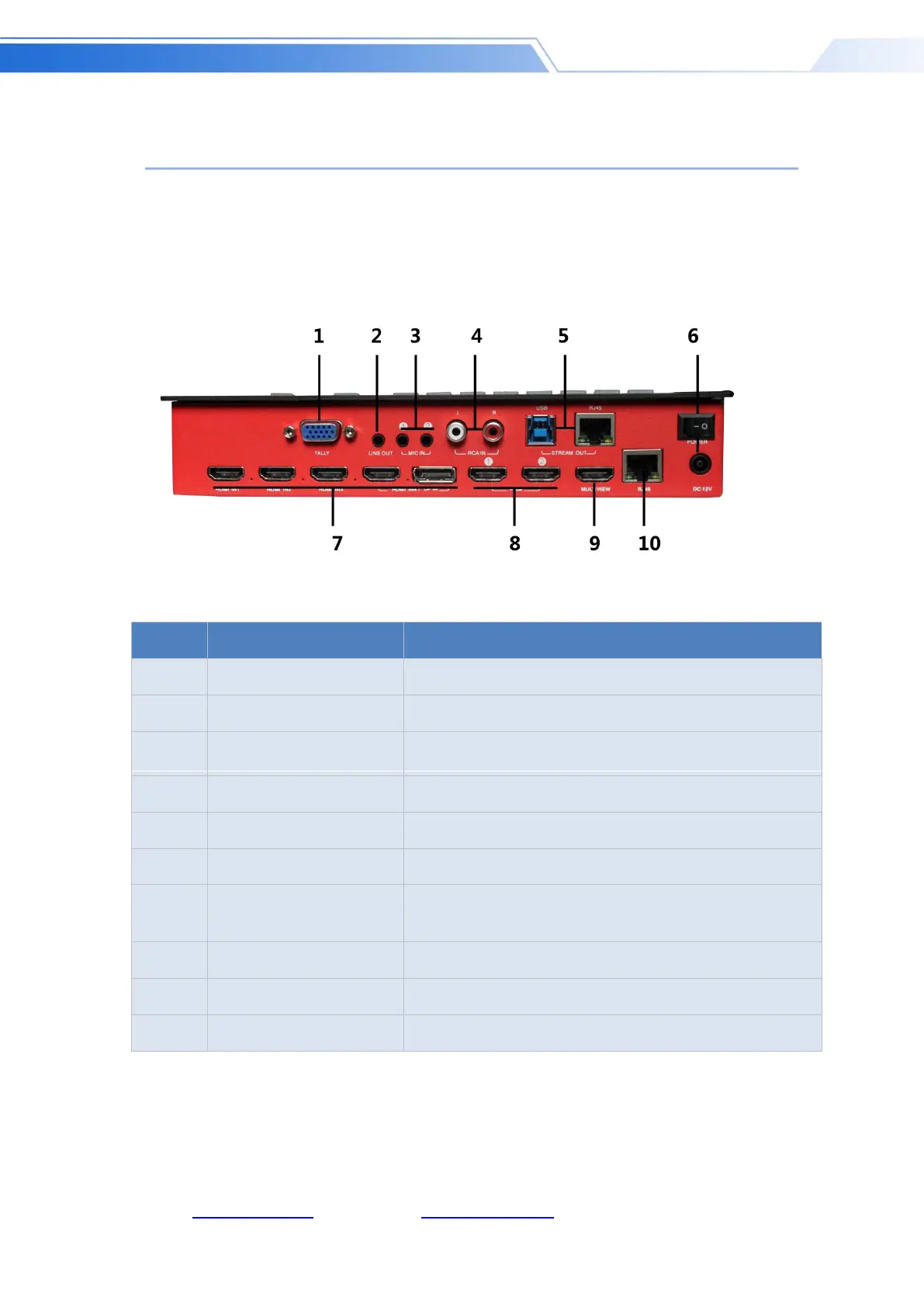

The DeviceWell HDS7105 interface is shown below.
NO.
Definition
Description
1
TALLY
TALLY
2
LINE OUT
Line audio output
3
MIC IN
2 stereo MIC inputs
4
RCA IN
RCA audio input
5
STREAM OUT
UVC output
6
DC 12V
Power input and switch
7
HDMI IN/DP IN
4 HDMI + 1 DP inputs, The fourth input can be
switched to DP input
8
HDMI OUT
2*PGM output
9
MULTIVIEW
Multiview output
10
RJ45
Network upgrade
