DeVilbiss 525DS-Q - Page 31

31
LT-2023
FIGURES, DIAGRAMS AND PARTS LIST
PART DESCRIPTION
525KS-LT
"N" SERIAL #
525KS
"R" SERIAL #
1 Accumulator Tank 525D-610 525D-610
2 Auxiliary Oxygen Port N/A N/A
Cabinet Parts:
3 Base 525KD-603 525KD-603
4 Bib N/A N/A
5 Communication Port Door N/A N/A
6 Compressor Box 525DD-615 525DD-615
7 Filter Door 525DD-639 525DD-639
8 Front Cover 525DD-611 525DD-611
9 Rear Cover 525DD-612 525DD-612
10 Cabinet Screw (Original) N/A N/A
11 Cabinet Screw (plastite) N/A N/A
12 Cable Tie, (Sieve Bed) 505DZ-617 505DZ-617
13 Capacitor (Motor Start/Run) 525K-616 525K-616
14 Caster, Non-locking 501DZ-603 501DZ-603
Check Valves:
15 Bed Check Valve N/A N/A
16 Final Check Valve N/A N/A
17 Circuit Breaker 515KZ-615 515KZ-615
18 Cooling Fan 515UK-634 515UK-634
19 Cooling Fan Guard N/A N/A
20 Compressor 525K-625 525K-625
21 Compressor Rebuild Kit 525K-643 525K-643
22 Exhaust Mufer 515A-705 515A-705
Filters:
23 Cabinet Air Filter 303DZ-605 303DZ-605
24 Intake Bacteria Filter MC44D-605 MC44D-605
25 Compressor Filter (Plastic) 525D-622 525D-622
26 Compressor Filter (Sintered Bronze) 525DD-626 525DD-626
27 Final Bacteria Filter PV5LD-651 PV5LD-651

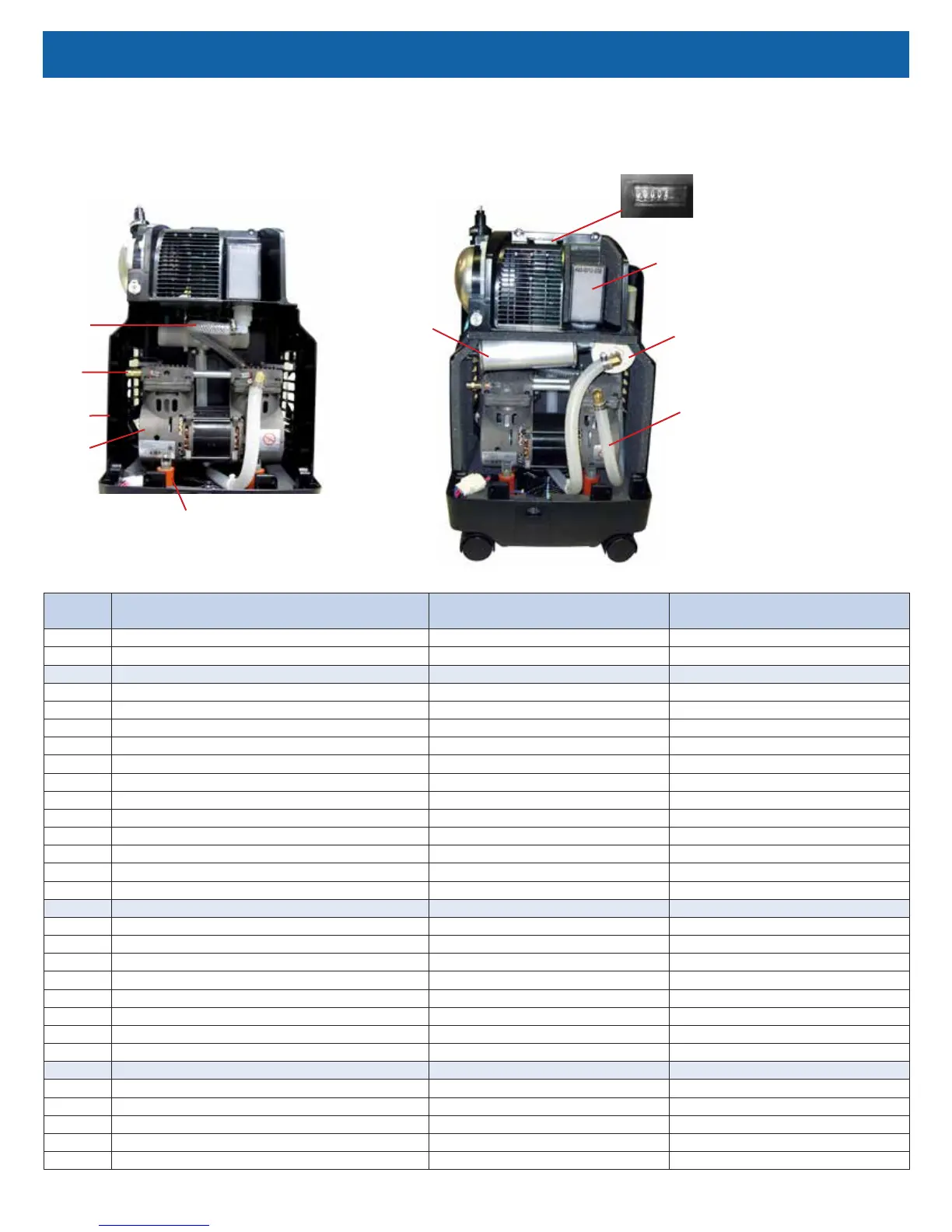

525KS-LT Unit - Serial # "N" (220/230/240V Units with Auxiliary Oxygen Port)
525KS Unit - Serial # "R" (220/230/240V Units with Auxiliary Oxygen Port)
Rear Inside - Serial # "N" Rear Inside - Serial # "R"
34
6
42
20-21
39
35
25
24
38
50
