DeVilbiss Carlisle DV1 - Exploded View

EN
This gauge is suitable for use with both water-based and solvent based coating materials and cleaners.
Please consult your gun washing machine supplier to confirm the suitability of this device being used
in their equipment.

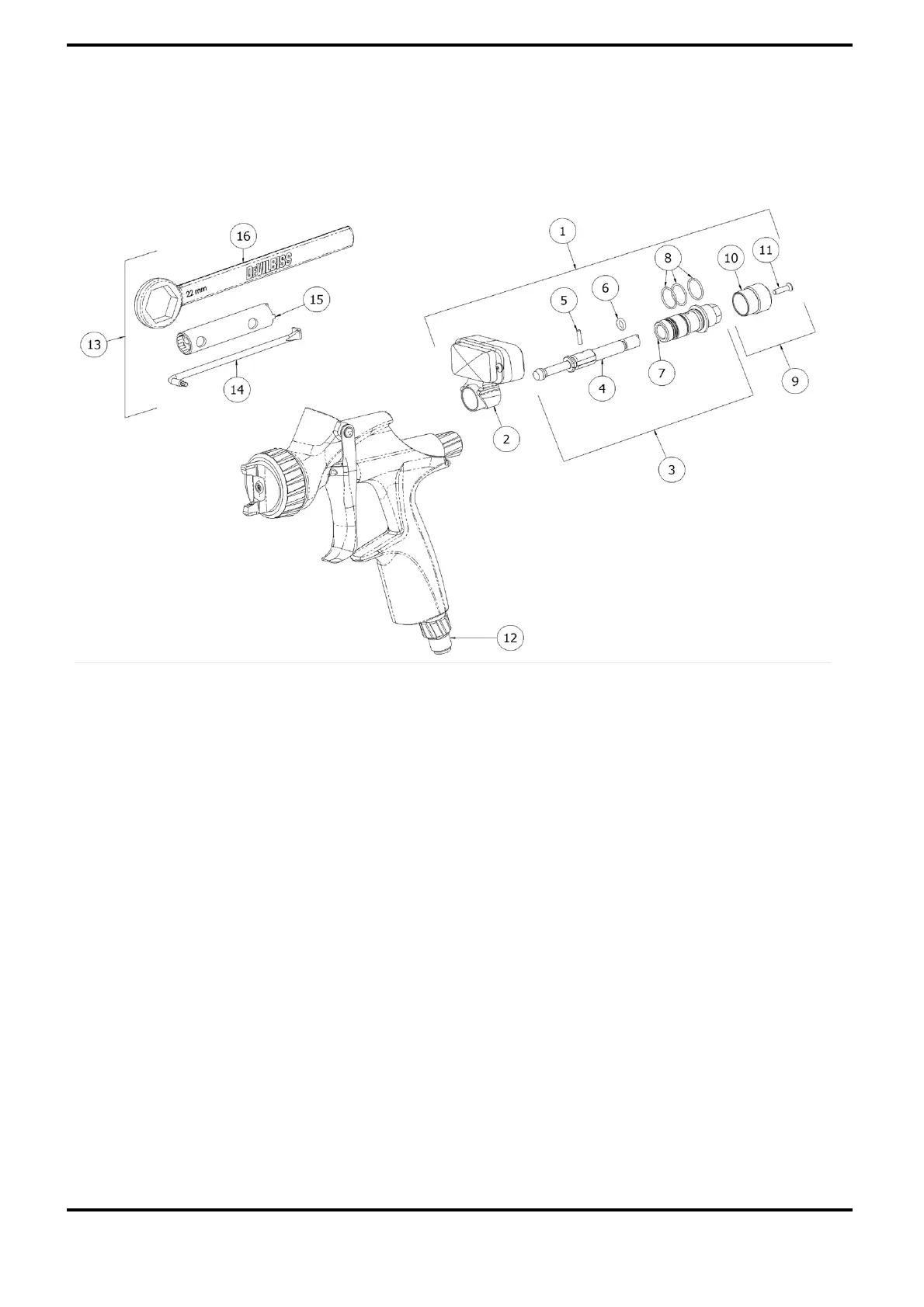

EXPLODED VIEW
IMPORTANT
T10 TORX
1 Nm
[10 in-lbs]
11mm HEX
9 Nm
[80 in-lbs]
SB-E-9-224 R1.0
4/8
www.carlisleft.com
