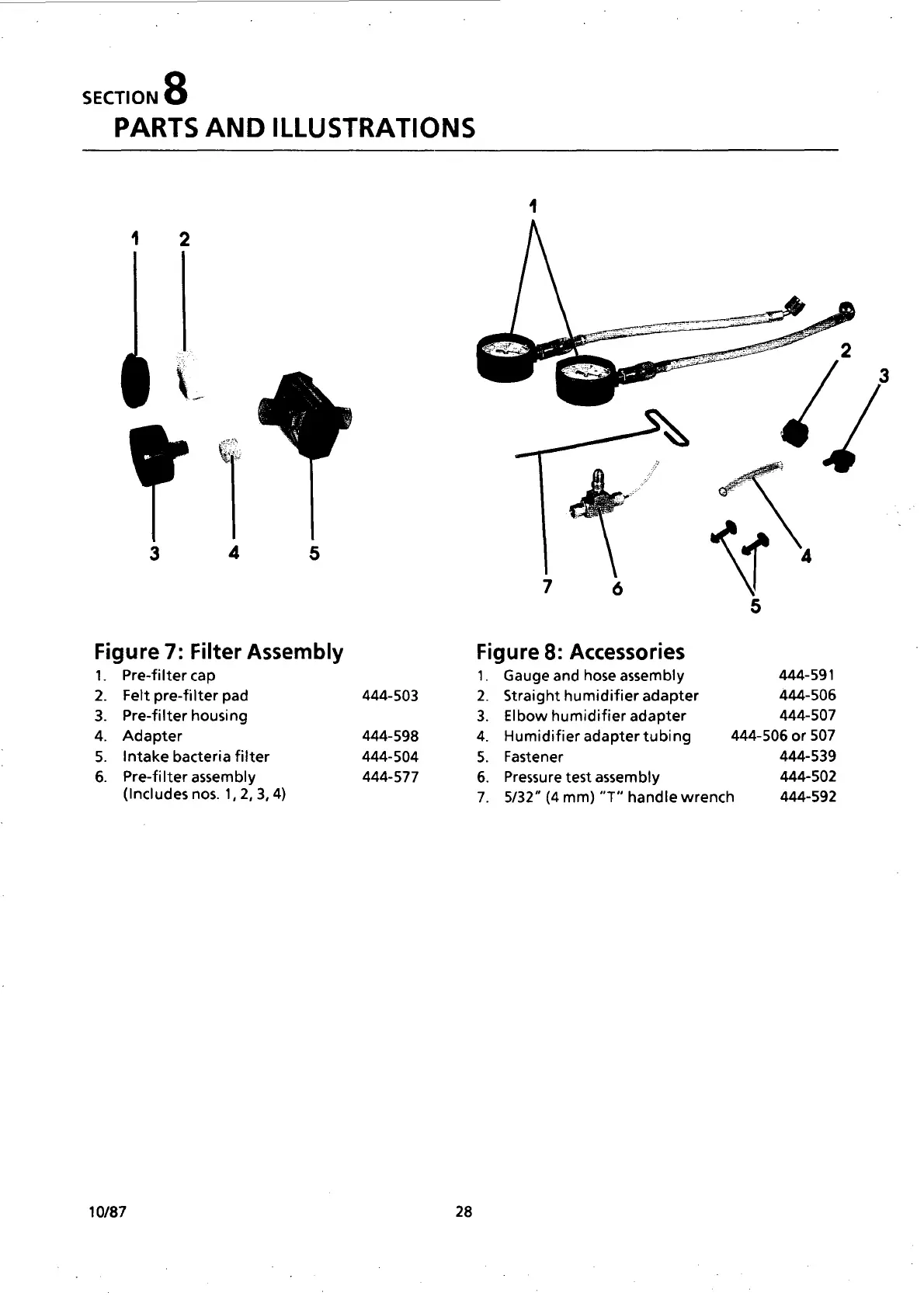

SECTION 8
PARTS AND ILLUSTRATIONS
Figure 7: Filter Assembly
. Pre-filter cap
Felt pre-filter pad
Pre-filter housing
Adapter
intake bacteria filter
Pre-filter assembly
(Includes nos. 1, 2, 3, 4)
συ
δω»
10/87
444-503
444-598
444-504
444-577
28
Figure 8: Accessories
1.
2.
3.
4.
5.
6.
7.
Gauge and hose assembly 444-591
Straight humidifier adapter 444-506
Elbow humidifier adapter 444-507
Humidifier adapter tubing 444-506 or 507
Fastener 444-539
Pressure test assembly 444-502
5/32” (4mm) “T" handle wrench 444-592
