SECTION 8
PARTS AND ILLUSTRATIONS
42345
678
9
44431244 40

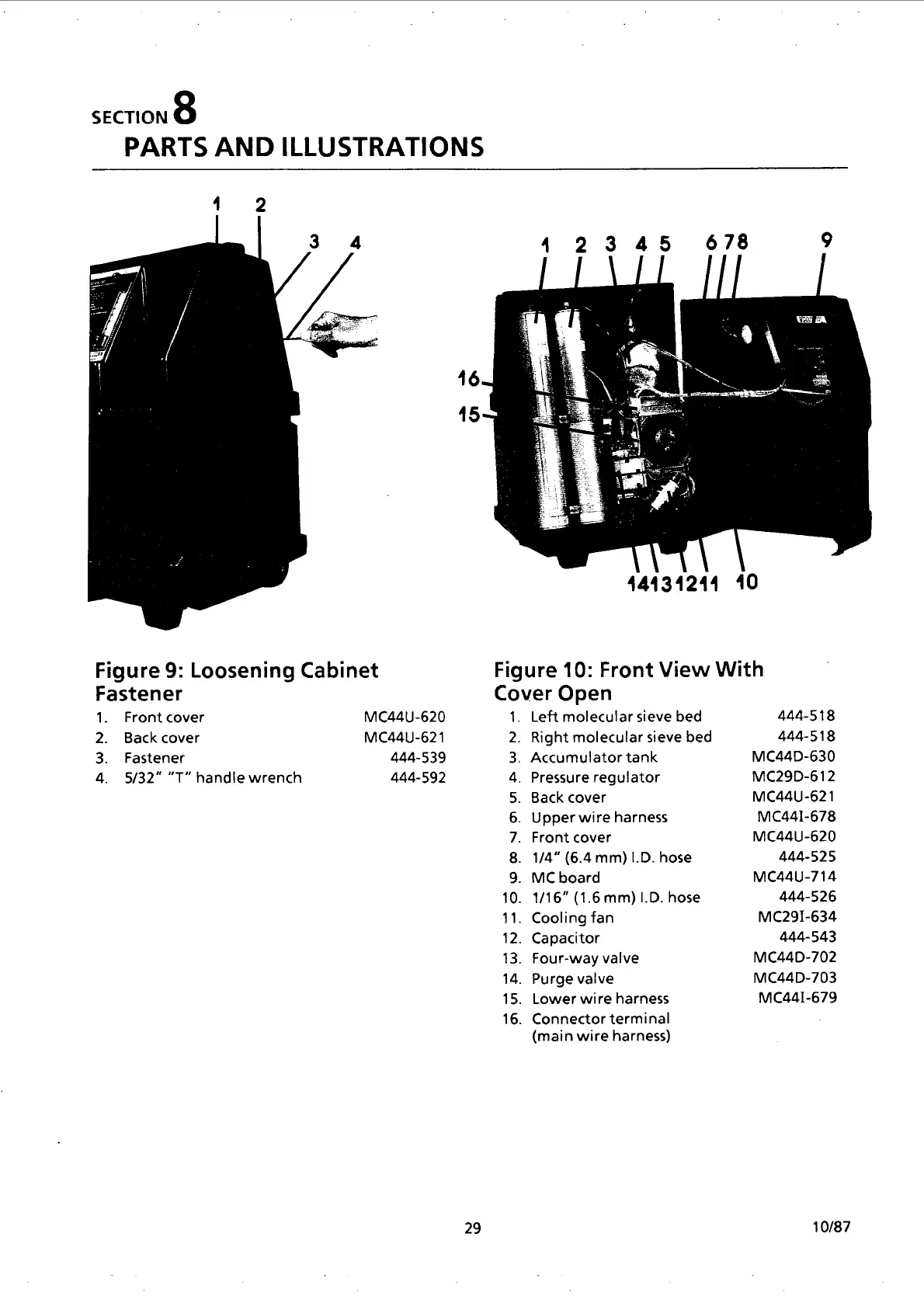

Figure 9: Loosening Cabinet Figure 10: Front View With
Fastener Cover Open
1. Front cover MC44U-620 1. Left molecular sieve bed 444-518
2. Back cover MC44U-621 2. Right molecular sieve bed 444-518
3. Fastener 444-539 3. Accumulator tank MC44D-630
4. 5/32" "T“ handle wrench 444-592 4. Pressure regulator MC29D-612
5. Back cover MC44U-621
6. Upper wire harness MC441-678
7. Front cover MC44U-620
8. 1/4” (6.4 mm) 1.D. hose 444-525
9. MC board MC44U-714
10. 1/16” (1.6 тт) 1.0. Бозе 444-526
11. Cooling fan MC291-634
12. Capacitor 444-543
13. Four-way valve MC44D-702
14. Purge valve MC44D-703
15. Lower wire harness MC441-679
16. Connector terminal
(main wire harness)
29 10/87
