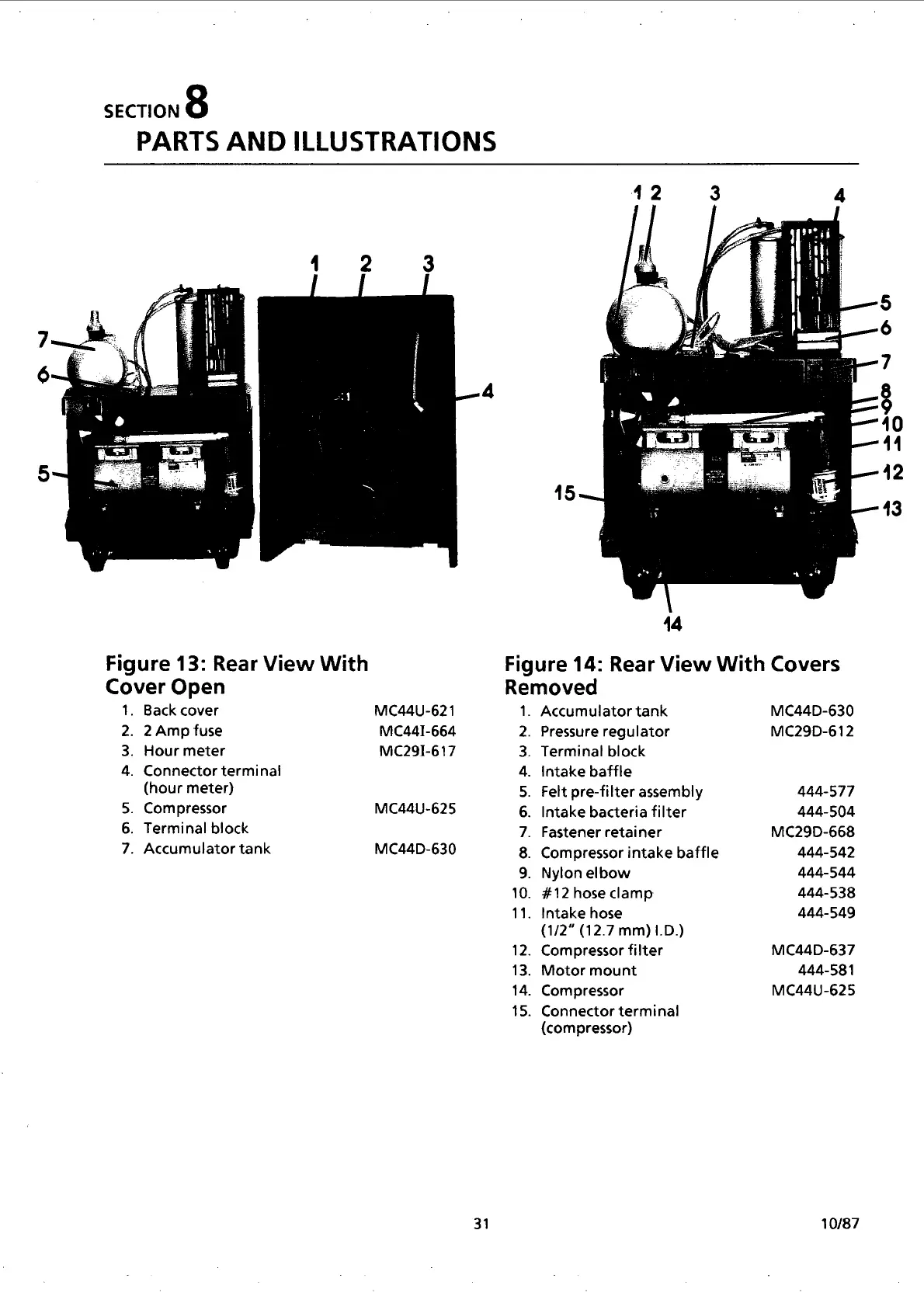

SECTION 8
PARTS AND ILLUSTRATIONS
Figure 13: Rear View With
Cover Open
1. Back cover MC44U-621
2. 2Ampfuse MC44I-664
3. Hour meter MC291-617
4. Connector terminal
(hour meter)
5. Compressor MC44U-625
6. Terminal block
7. Accumulator tank MC44D-630
Figure 14: Rear View With Covers
Removed
1. Accumulator tank
Pressure regulator
Terminal block
Intake baffle
Felt pre-filter assembly
Intake bacteria filter
Fastener retainer
Compressor intake baffle
Nylon elbow
#12 hose clamp
Intake hose
(1/2" (12.7 mm) 1.D.)
Compressor filter
Motor mount
Compressor
Connector terminal
(compressor)
5
D
&œ
NU
PB
W
N
må
må
må
—k
AN
31
MC44D-630
MC29D-612
444-577
444-504
MC29D-668
444-542
444-544
444-538
444-549
MC44D-637
444-581
MC44U-625
10/87
