SECTION 8
PARTS AND ILLUSTRATIONS
5
E
4
3
2
4
14 D 13 42

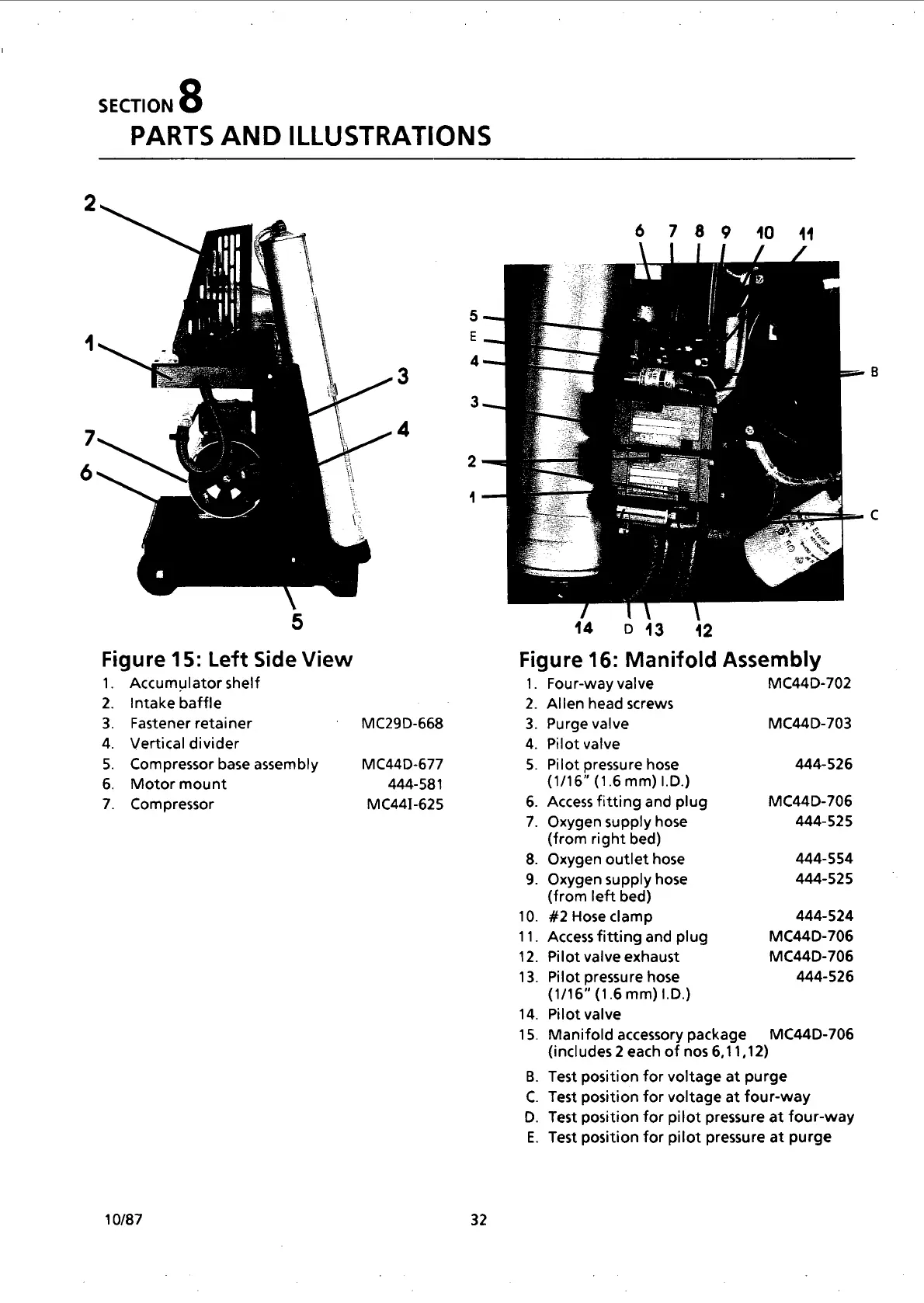

Figure 15: Left Side View Figure 16: Manifold Assembly
1. Accumulator shelf 1. Four-way valve MC44D-702
2. Intake baffle 2. Allen head screws
3. Fastener retainer ㆍ MC29D-668 3. Purge valve MC44D-703
4. Vertical divider 4. Pilot valve
5. Compressor base assembly MC44D-677 5. Pilot pressure hose 444-526
6. Motor mount 444-581 (1/16” (1.6 mm) 1.D.)
7. Compressor MC441-625 6. Access fitting and plug MC44D-706
7. Oxygen supply hose 444-525
(from right bed)
8. Oxygen outlet hose 444-554
9. Oxygen supply hose 444-525
(from left bed)
10. #2 Hose clamp 444-524
11. Access fitting and plug MC44D-706
12. Pilot valve exhaust MC44D-706
13. Pilot pressure hose 444-526
(1/16" (1.6 mm) I.D.)
14. Pilot valve
15. Manifold accessory package MC44D-706
(includes 2 each of nos 6,11,12)
Test position for voltage at purge
Test position for voltage at four-way
Test position for pilot pressure at four-way
Test position for pilot pressure at purge mone
