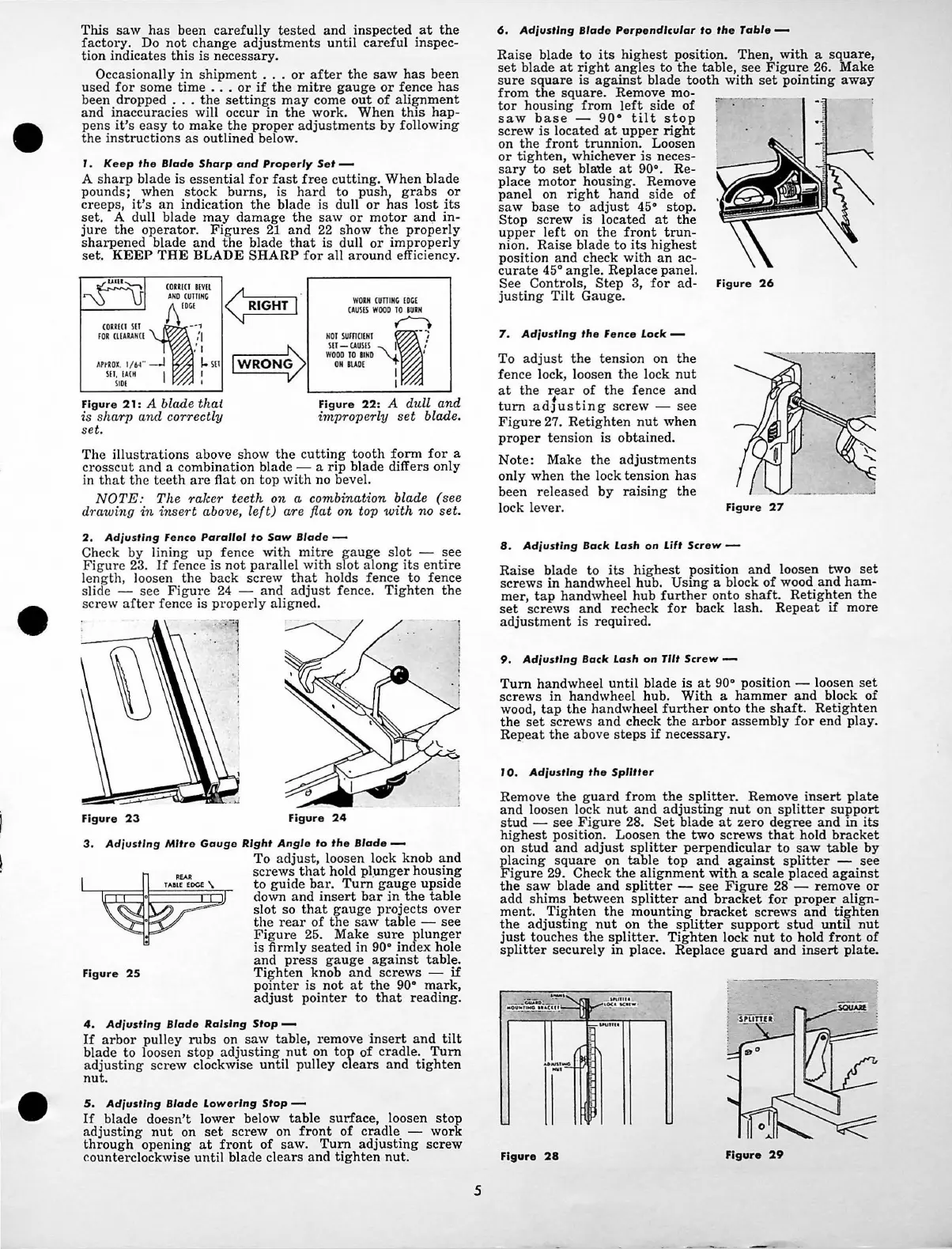

This saw has been carefully tested and inspected at the
factory. Do not change adjustments until careful inspec-
tion indicates this is necessary.
Occasionally in shipment . . . or after the saw has been
used for some time . . . or if the mitre gauge or fence has
been dropped ... the settings may come out of alignment
and inaccuracies will occur in the work. When this hap-
pens it's easy to make the proper adjustments by following
the i nstructions as outlined below.
I. Keep the Blade Sharp and Properly Set -
A sharp blade is essential for fast free cutting. When blade
pounds; when stock burns, is hard to push grabs or
creeps, it 's an indication the blade is dull or has lost Jts
set. A dull blade may damage the saw or motor an<i in-
jure the operator. Figures 21 and 22 show the properly
sharpened blade and the blade that is dull or improperly
set. KEEP THE BLADE SHARP for all around efficiency.
ANO CUHIHG •
~
um::::,[I conm llVIL ~
(\ 10t1 RIGHT
comc1 m ;,l \ -·
1
WOIN CUTTING ED!a
CAU lll WOOD 10 IUR N
r-.
JOR (L!AUHC! .'I
APfROX . 1/ 64 " _J ,' ~ 111 I WRONV
mi,lt
1
" I I
HOT surnmNT I:
m - uus 1s I ,
WOOO TO IIND "'\ I' '
ON IU.01 ',;.
I
I
Figure 21: A blade that
is s harp and correctly
set.
Figure 22: A dllll and
improperly set blade.
The illustrations above show the cutting tooth form for a
crosscut and a combination blade - a rip blade differs only
in that the teeth are flat on top with no bevel.
NOTE: The raker teeth on a combination blade (see
drawing in insert above, le/ t) are fiat on top with no set .
2. Adjusting Fence Parallel to Saw Blade -
Check by lining up fence with mitre gauge slot - see
Figure 23. If fe nce is not parallel with slot along its entire
l engt h, loo sen the b ack screw that holds fenc~ to fence
slide - see Figure 24 - and adjust fence. Tighten t he
screw after fence is properly aligned.
l
I
J
Figure 23
Figure 24
3. Adjusting Mitre Gauge Right Angle to the Blade -
To ad ju st , loosen lock knob and
screws that hold pl:unger housing
to guide bar. Turn gauge upside
down and insert bar in the table
s lot so that gauge projects over
the rear of the saw table - see
Figure 25. Make su re plunger
is firmly seated in 90° index hole
and press gauge against table.
Figure 2S Tight en knob and screws - if
pointer is not at the 90• mark,
ad just pointer to that reading.
4. Adjusting Blade Raising Stop -
If arbor pulley rubs on saw table, remove in sert and tilt
blade to loosen stop adjusting nut on top of cradle . Turn
adjusting screw clockwise until pulley clears and tighten
nut.
5. Adjusting Blade Lowering Stop -
If blad e doesn't lower below table surface, loosen stop
adjusting nut on set screw on front of cr~dle. - work
through opening at front of saw. TUI:n adJustmg screw
counterclockwise until blade clear s a nd tighten nut.
5
6. Adjusting Blade Perpendicular to the Table -
Raise blade to its highest position. Then, with a sq uare,
set blade at right angles to the table, see Figure 26. Make
sure square is against blade tooth with set point i ng away
from the square . Remove mo-
tor housing from left side of
saw base - 90° tilt stop
screw is located at upper right
on the front trunnion. Loosen
or tighten, whichever is neces-
sary to set blatle at 90°. Re-
place motor housing. Remove
pane l on right hand side of
saw base to adjust 45° stop.
Stop screw is located at the
upper left on the front trun-
nion. R aise blade to its highest
position and check with an ac-
curate 45° angle. Replace panel.
See Controls, Step 3, for ad- Figure 26
justing Tilt Gauge .
7. Adjusting the Fence Lock -
To adjust the tens ion on the
fence lock, loosen the lock nut
at the rear of the fence and
turn adJusting screw - see
Figure 27. Retighten nut when
prop er tension is obtained.
Not e: Make the adjustments
only when the lock tension has
been released by raising the
lock lever .
Figure 27
8. Adjusting Back Lash on Lift Screw -
Raise blade to its highest position and loosen two set
screws in handwheel hub. Using a block of wood and ham-
mer tap handwheel hub further onto shaft. Retighten the
set 'screws and recheck for back lash . Repeat if more
adjustment is required.
9. Adjusting Back Lash on TIit Screw -
Turn handwhe el until blade is at 90° position - loosen set
screws in handwheel hub. With a hammer and block of
wood, tap the handwheel further on to the shaft. Retig hten
the set screws and check the arbor assembly for end play .
Repeat the above steps if necessary.
IO. Adjusting the Sp/liter
Remove the guard from the splitter. Remove i nsert plate
and loos en lock nu t and adjusting nut on splitter support
stud - see Figure 28. Set blade at zero degree and in its
highest position. Loosen the two screws that hold bracket
on stud and ad just splitter perp end icular to saw table by
placing square on table top and against splitter - see
Figure 29. Check the alignment with a scale placed against
the saw blade and splitter - see Figure 28 - remove or
add shims between splitter and bracket for proper align-
ment. Tight en the mounting bracket screws and tighten
the adjusting nut on the sp litter support stud until nut
just touches the splitter. Tighten lock nut to hold front of
splitter securely in place . Replace guard and insert plate.
Figure 28
Figure 29
