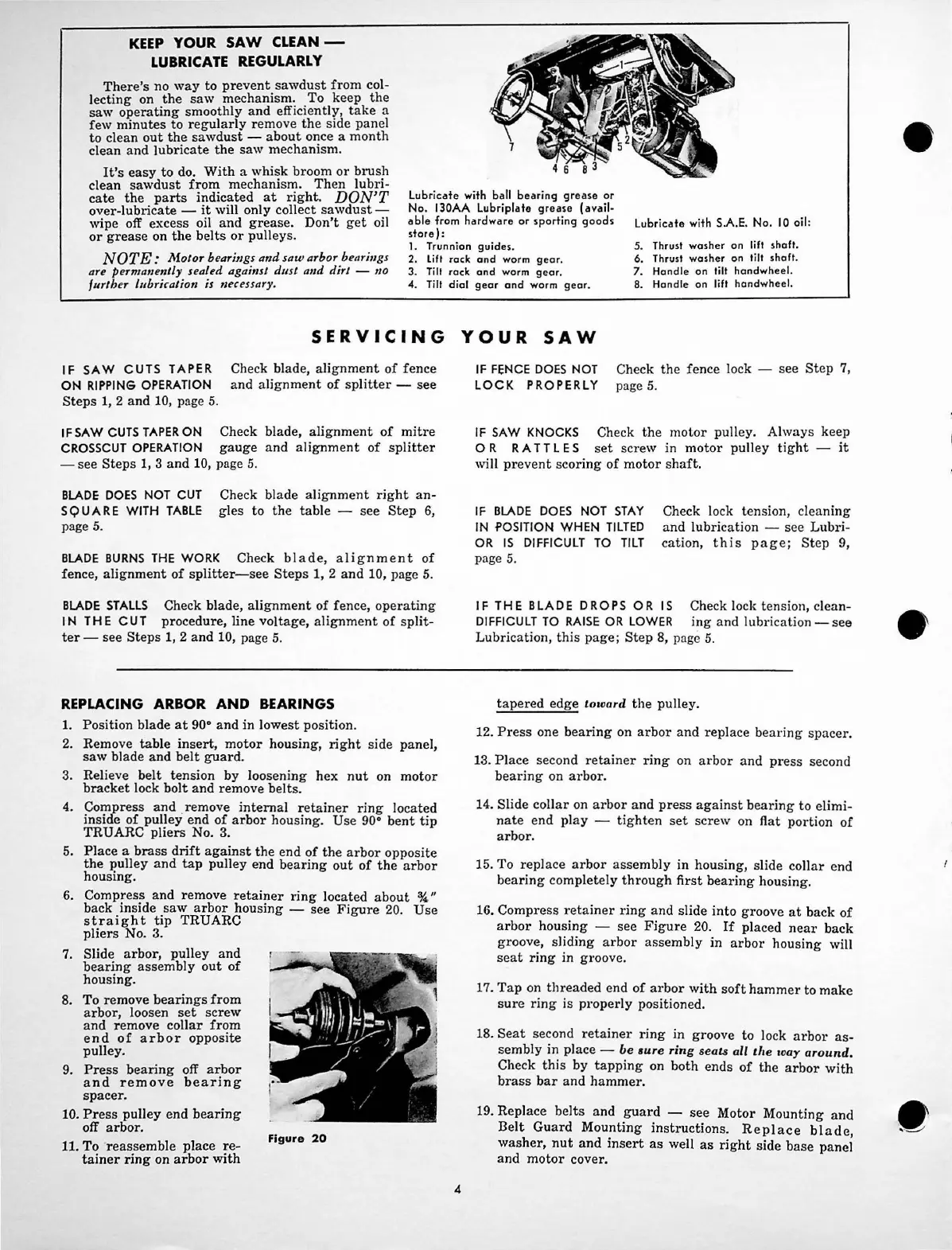

DeWalt 140 - Page 4

KEEP YOUR SAW CLEAN -
LUBRICATE REGULARLY
There's no way to prevent sawdust from col-
lecting on the saw mechanism. To keep the
saw operating smoothly and efficiently, take a
few minutes to re gularly remove the side panel
to clean out the sawdust - about once a month
clean and lubricate the saw mechanism.
It's easy to do. With a whisk broom or b111sh
clean sawdust from mechanism. Then lubri-
cate the parts indicated at right . DON'T
over-lubricate - it will only collect sawdust-
wipe off excess oil and grease. Don't get oil
or grease on the belts or pulleys.
Lubricate with ball bearing grease or
No. 130AA Lubriplate grease (avail-
able from hardware or sporting goods
store):
Lubricate with S.A.E . No. 10 oil:
NOTE: Motor beari11gs aud saw arbor beariugs
are permauetztly sealed agaimt dust and dirt - no
furtber /ubricatiou is necessary.
l. Trunnion guides.
5. Thrust washer an lift shaft.
2. Lift rack and wo rm gear .
J. Till rack and worm gear.
6. Thrust washer an tilt sha ft.
7. Handle an tilt handwheel.
4. Ti lt dial gear and warm gear .
8. Handle an lift handwheel .
SERVICING YOUR SAW
IF SAW CUTS TAPER
ON RIPPING OPERATION
Steps 1, 2 and 10, page 5.
Check blade, alignment of fence
and alignment of splitter - see
IFSAW CUTS TAPER ON Check blade, alignment of mitre
CROSSCUT OPERATION gauge and alignment of splitter
- see Steps 1, 3 and 10, page 5.
BLADE DOES NOT CUT
SQUARE WITH TABLE
page 5.
Check blade alignment right an-
gles to the table - see Step 6,
BLADE BURNS THE WORK Check blade, alignment of
fence, alignment of splitter-see Step s 1, 2 and 10, page 5.
BLADE STALLS Check blade, alignment of fence, operating
IN THE CUT procedure, line voltage, alignment of split-
ter - see Steps 1, 2 and 10, page 5.
REPLACING ARBOR AND BEARINGS
1. Position blade at 90• and in lowest position.
2. Remove table insert, motor housing, right side panel,
saw blade and belt guard.
3. Relieve belt tension by loosening hex nut on motor
bracket lock bolt and remove belts.
4. Compress and _remove internal retainer ring lo cate d
inside of pulley end of arbor housing . Use 90° be nt tip
TRUARC pliers No. 3.
5. Place a brass drift against th e e nd of the arbor opposite
the pulley and tap pulley end bearing out of the arbor
housing.
6. Compress and remove retainer ring located abo ut ¾"
back inside saw arbor housing - see Figure 20. Use
straight tip TRUARC
plier s No. 3.
7. Slide arbor, pulley and
bearing assembly out of
housing.
8. To remove bearings from
arbor, loosen set screw
and remove collar from
end of arbor opposite
pulley .
9. Press bearing off arbor
and remove bearing
spacer.
10. Press pulley end bearing
off arbor .
11. To · reassemble place re-
tainer ring on arbor with
Figure 20
4
IF FENCE DOES NOT Check the fence lock - se e Step 7,
LOCK PROPERLY page 5.
IF SAW KNOCKS Check the motor pull ey . Always keep
0 R RATTLES set screw in motor pulley ti ght - it
will prevent scoring of motor shaft .
IF BLADE DOES NOT STAY
IN POSITION WHEN TILTED
Check lock tension, cleaning
and lubrication - see Lubri-
OR IS DIFFICULT TO TILT cation, this page; Step 9,
page 5.
IF THE BLADE DROPS OR IS Check lock tension, clean-
DIFFICULT TO RAISE OR LOWER ing and lubricatio n - see
Lubrication, this page; Step 8, page 5.
tap e red edge to1oard the pulley.
12. Press one bearing on arbor and repl ace bearing spa c er .
13. Place second retainer ring on arbor and press second
bearing on ar bor.
14. Slide co llar on arbor and pr ess against be aring to elimi-
nate end play - tighten s et screw on flat portion of
arbor.
15. To rep la ce arbor assemb ly in housing, slide collar end
bearing completely through first be ari ng housing .
16. Compress ret a iner ring and slide into groove at back of
ar bor housing - see Figure 20. If plac ed near back
groove, sliding arbor assembly in arbor housing will
seat ring in groo ve.
17. Tap on threaded end of arbor with soft hammer to make
sure ring is properly positioned.
18. Se at second ret a iner ring in groove to lock arbor as-
sembly in pl ace - be •ure ring seats all the 1oay around .
Check this by t app ing on both e nds of t he arbor with
brass bar and h am me r.
19. Replace belts and guard - see Motor Mounting a nd
Belt Guard Mounting instructions. Replace blade
w as h er, nut and ins ert as well as right side base panei
and motor cover.
