DeWalt DCD780 Instruction Manual

English
11
FIG. 4
FIG. 5
F
FIG. 3
Belt Hook and Bit Clip (Fig. 2)
WARNING: To reduce the risk of serious personal injury,
turn tool off and remove the battery pack before making
any adjustments or removing/installing attachments or
accessories. An accidental start-up can cause injury.
WARNING: To reduce the risk of serious personal injury,
DO NOT suspend tool overhead or suspend objects from the belt
hook. ONLY hang tool’s belt hook from a work belt.
WARNING: To reduce the risk of serious personal injury,
ensure the screw holding the belt hook is secure.
IMPORTANT: When attaching or replacing the belt hook or bit clip
(bit clip sold separately), use only the screw (H) that is provided. Be
sure to securely tighten the screw.
The belt hook (G) and bit clip (I) can be be attached to either side of
the tool using only the screw (H) provided, to accommodate left- or
right- handed users. If the hook or bit clip is not desired at all, it can
be removed from the tool.
To move belt hook or bit clip, remove the screw (H) that holds it in
place then reassemble on the opposite side. Be sure to securely
tighten the screw.
OPERATION
WARNING: To reduce the risk of serious personal injury,
turn tool off and remove the battery pack before making
any adjustments or removing/installing attachments or
accessories. An accidental start-up can cause injury.

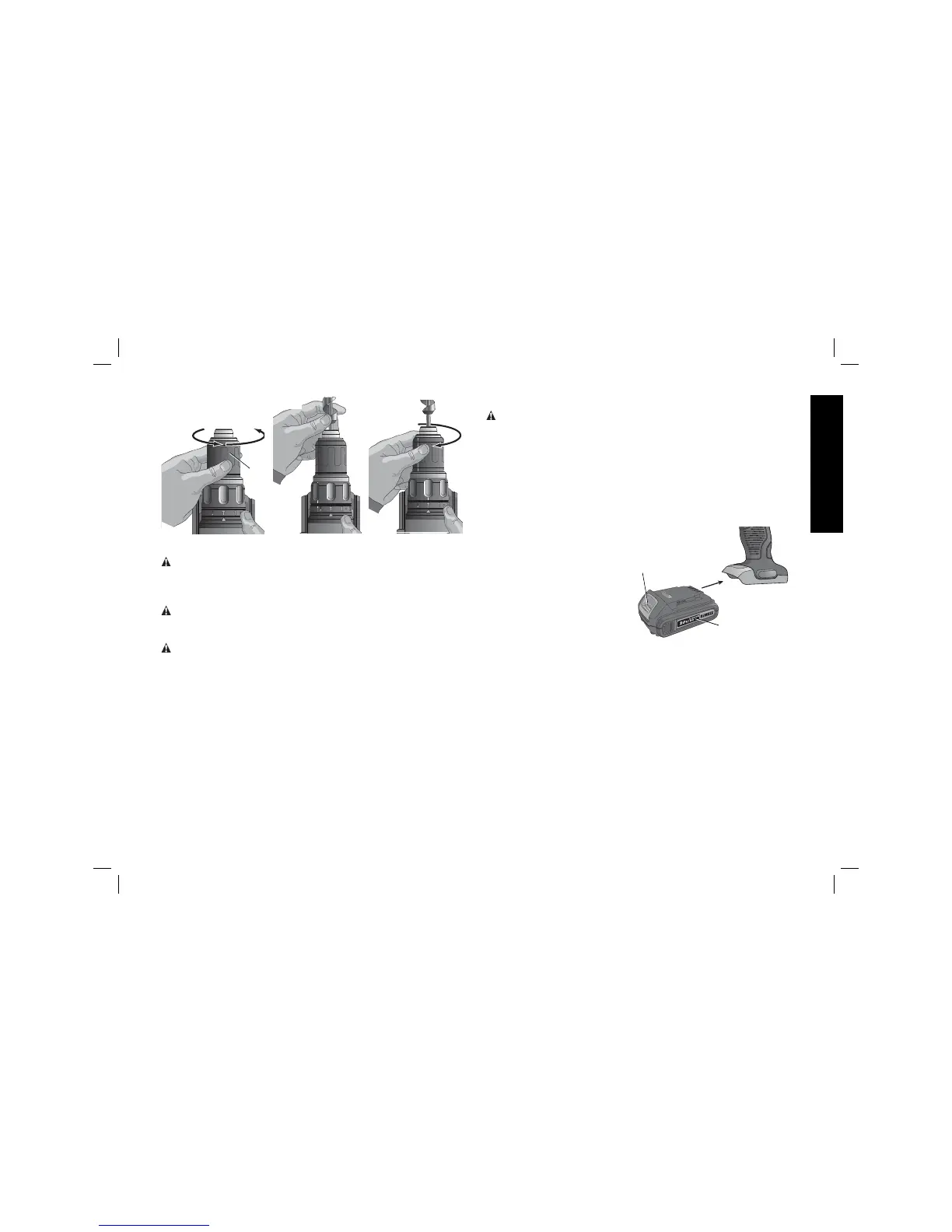

Installing and Removing the Battery
Pack (Fig. 6)
NOTE: For best results, make sure your battery pack is fully
charged.
To install the battery pack (K)
K
J
FIG. 6
into the tool handle, align the
battery pack with the rails
inside the tool’s handle and
slide it into the handle until the
battery pack is firmly seated in
the tool and ensure that it
does not disengage.
To remove the battery pack
from the tool, press the
release button (J) and firmly
pull the battery pack out of the
tool handle. Insert it into the charger as described in the charger
section of this manual.
Drilling (Fig. 7)
NOTICE: If drilling thin material, use a wood “back-up” block to
prevent damage to the material.
1. Select the desired speed/torque range using the gear shifter to
match the speed and torque to the planned operation. Turn the
collar (C) to the drill symbol.
2. Use sharp drill bits only. For MASONRY, such as brick, cement,
cinder block, etc., use carbide-tipped bits rated for percussion
drilling.

DeWalt DCD780 Specifications

General

Chuck capacity (max)	13 mm
Chuck capacity (min)	1.5 mm
Idle speed (1st gear)	600 RPM
Idle speed (2nd gear)	2000 RPM
Drilling diameter in wood (max)	38 mm
Maximum torque (hard applications)	60 N⋅m
Maximum torque (soft applications)	23 N⋅m
Product color	Black, Yellow
Product design	Pistol grip drill
Power source	Battery
Battery voltage	18 V
Battery capacity	4 Ah

Weight and Dimensions

Depth	80 mm
Width	190 mm
Height	236 mm
Weight	1840 g
