DeWalt DCD780 Instruction Manual

English
7
on any other voltage. This does not apply to the vehicular
charger.
Chargers
Your tool uses a DEWALT charger. Be sure to read all safety
instructions before using your charger. Consult the chart at the end
of this manual for compatibility of chargers and battery packs.

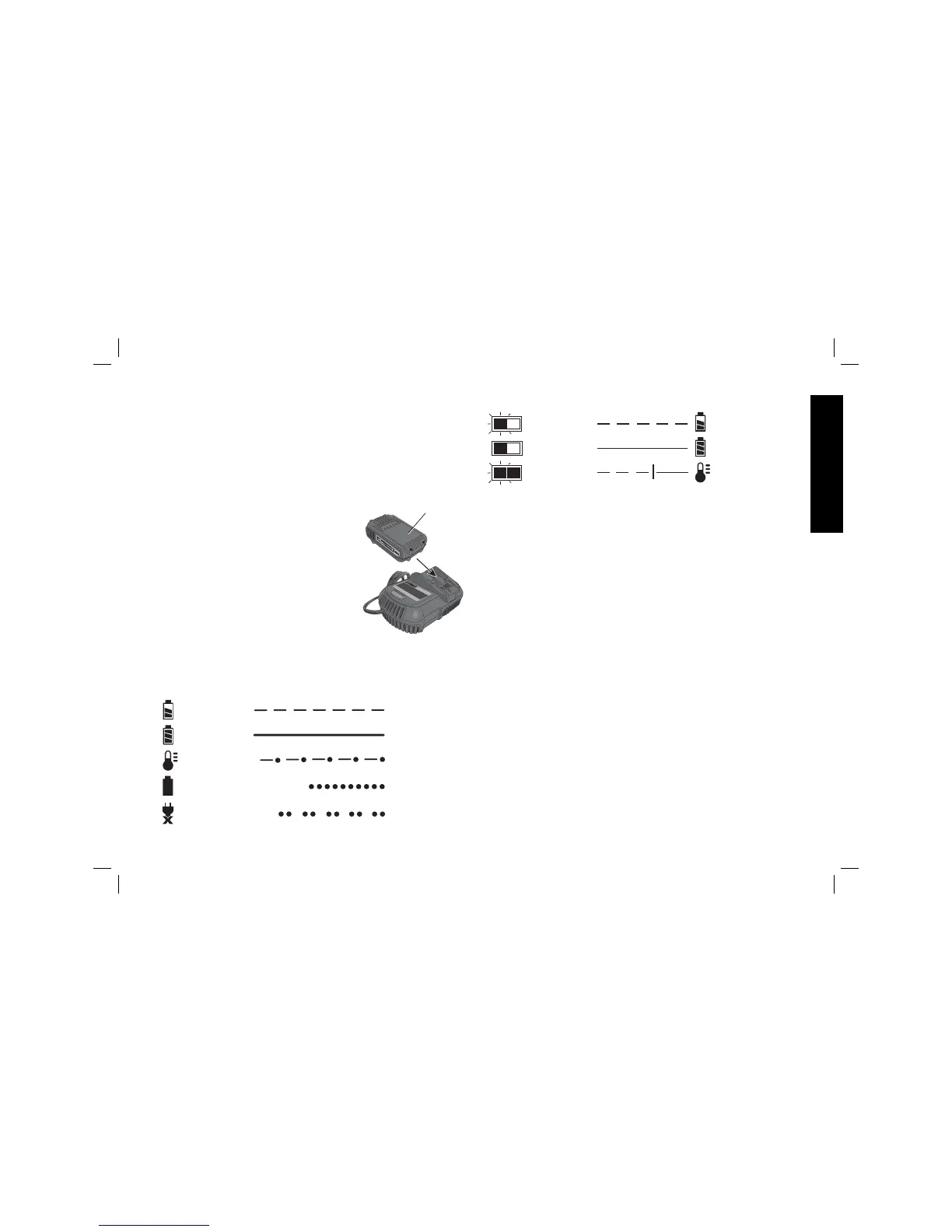

Charging Procedure (Fig. 1)
1. Plug the charger into an appropriate
FIG. 1
K
DCB101
outlet before inserting the battery
pack.
2. Insert the battery pack (K) into the
charger, as shown in Figure 1,
making sure the pack is fully seated
in charger. The red (charging) light will
blink continuously, indicating that the
charging process has started.
3. The completion of charge will be
indicated by the red light remaining
ON continuously. The pack is fully
charged and may be used at this
time or left in the charger.
Indicator Light Operation
DCB101
PACK CHARGING
PACK CHARGED
x
HOT/COLD DELAY
PROBLEM PACK OR CHARGER
PROBLEM POWERLINE
DCB107, DCB112
PACK CHARGING
PACK CHARGED
HOT/COLD DELAY
Charge Indicators
This charger is designed to detect certain problems that can arise.
Problems are indicated by the red light flashing at a fast rate. If this
occurs, re-insert the battery pack into the charger. If the problem
persists, try a different battery pack to determine if the charger is
working properly. If the new pack charges correctly, then the original
pack is defective and should be returned to a service center or other
collection site for recycling. If the new battery pack elicits the same
trouble indication as the original, have the charger and the battery
pack tested at an authorized service center.
HOT/COLD DELAY
DCB101
This charger has a hot/cold delay feature: when the charger detects
a battery that is hot, it automatically starts a delay, suspending
charging until the battery has cooled. After the battery has cooled,
the charger automatically switches to the pack charging mode. This
feature ensures maximum battery life. The red light flashes long,
then short while in the hot/cold delay mode.
DCB107, DCB112
The DCB107 and DCB112 chargers have a hot/cold delay feature.
When the charger detects a battery that is hot, it automatically
delays charging until the battery has cooled. When the charger
detects a battery that is cold, it automatically delays charging until
the battery has warmed.
The red light will continue to blink, but a yellow indicator light will
be illuminated during this operation. Once the battery has cooled,

DeWalt DCD780 Specifications

General

Chuck capacity (max)	13 mm
Chuck capacity (min)	1.5 mm
Idle speed (1st gear)	600 RPM
Idle speed (2nd gear)	2000 RPM
Drilling diameter in wood (max)	38 mm
Maximum torque (hard applications)	60 N⋅m
Maximum torque (soft applications)	23 N⋅m
Product color	Black, Yellow
Product design	Pistol grip drill
Power source	Battery
Battery voltage	18 V
Battery capacity	4 Ah

Weight and Dimensions

Depth	80 mm
Width	190 mm
Height	236 mm
Weight	1840 g
