For the most efficient cutting action, set the depth
adjustment so that one-half tooth of the blade will project
below the material to be cut. This distance is from the tip of
the tooth to the bottom of the gullet in front of it. This keeps
blade friction at a minimum, removes sawdust from the cut,
results in cooler, faster sawing and reduces the chance of
kickback. A method for checking for correct cutting depth
is shown in FigureF. Lay a piece of the material you plan to
cut along the side of the blade, as shown, and observe how
much tooth projects beyond thematerial.

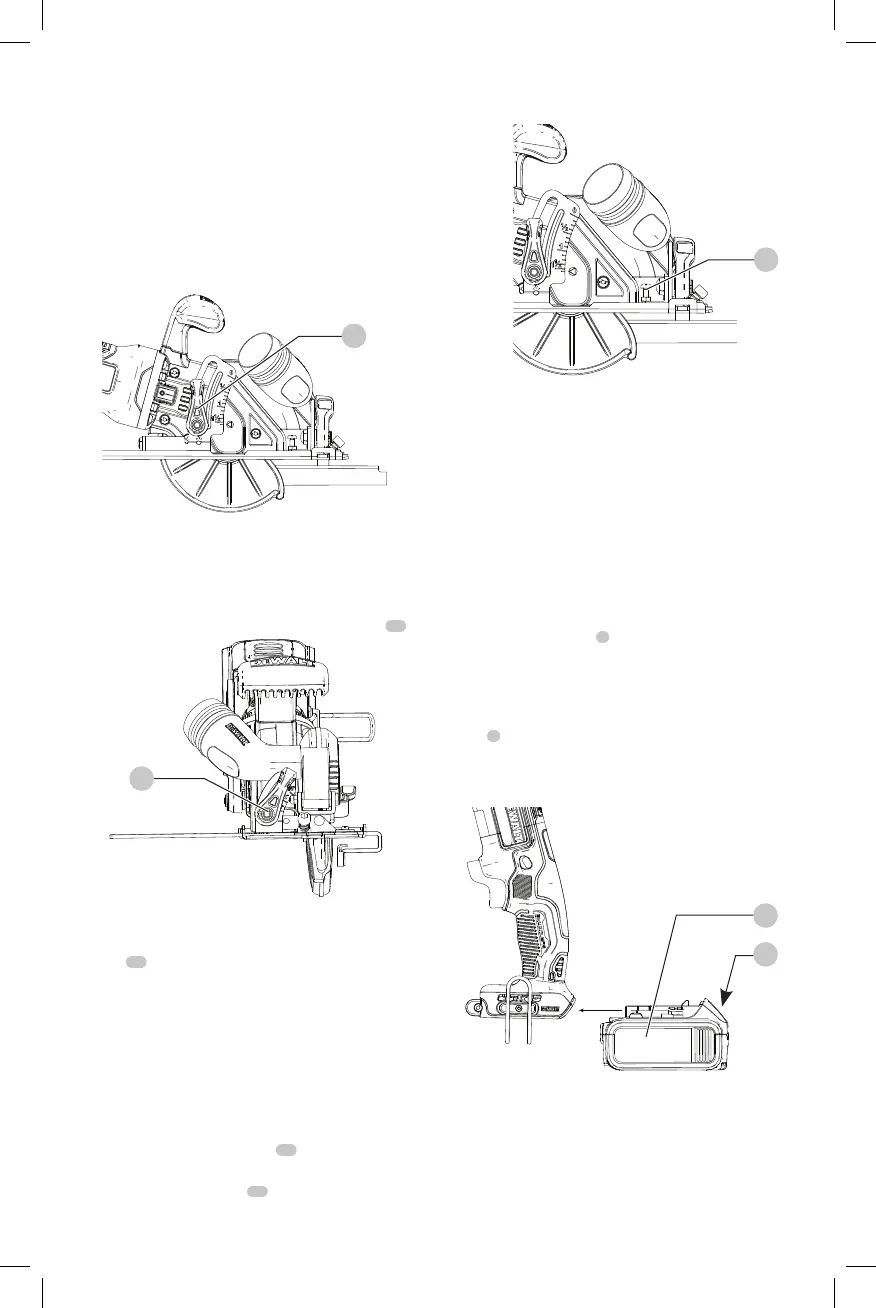

Fig. F
5
Bevel Angle Adjustment (Fig. G)
The full range of the bevel adjustment is from 0° to 45°. The
quadrant is graduated in increments of 15°. On the front of
the saw is a bevel angle adjustment mechanism consisting
of a calibrated quadrant and a bevel adjustment knob
11
.
Fig. G
11
To Set the Saw for a Bevel Cut
1. Loosen (counterclockwise) the bevel adjustment
knob
11
and tilt shoe to the desired angle by aligning
the pointer with the desired anglemark.
2. Retighten knob firmly (clockwise).
Shoe Adjustment for 90° Cuts (Fig. G, H)
If Additional Adjustment is Needed
1. Adjust the saw to 0°bevel.
2. Retract the lower blade guard. Place the saw on
bladeside.
3. Loosen bevel adjustment knob
11
. Place a square
against the blade and shoe to adjust the 90°setting.
4. Turn the calibration screw
19
so that the shoe will stop
at the properangle.
5. Confirm the accuracy of the setting by checking the
squareness of an actual cut on a scrap piece ofmaterial.
19
Fig. H
OPERATION
WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Installing and Removing the Battery Pack
(Fig. I)
NOTE: For best results, make sure your battery pack is
fullycharged.
To install the battery pack
3
into the tool handle, align the
battery pack with the rails inside the tool’s handle and slide
it into the handle until the battery pack is firmly seated in
the tool and ensure that it does notdisengage.
To remove the battery pack from the tool, press the release
button
4
and firmly pull the battery pack out of the tool
handle. Insert it into the charger as described in the charger
section of thismanual.
Fig. I
3
4
Proper Hand Position (Fig. J)
WARNING: To reduce the risk of serious personal injury,
ALWAYS use proper hand position as shown.
