DEWE-43A
TECHNICAL REFERENCE MANUAL


4.1. Connectors
4.1.1. Analog input

Pin
Description
1
EXC+
2
IN+
3
Sense-
4
AGND
5
+12V
6
Sense+
7
IN-
8
EXC-
9
TEDS

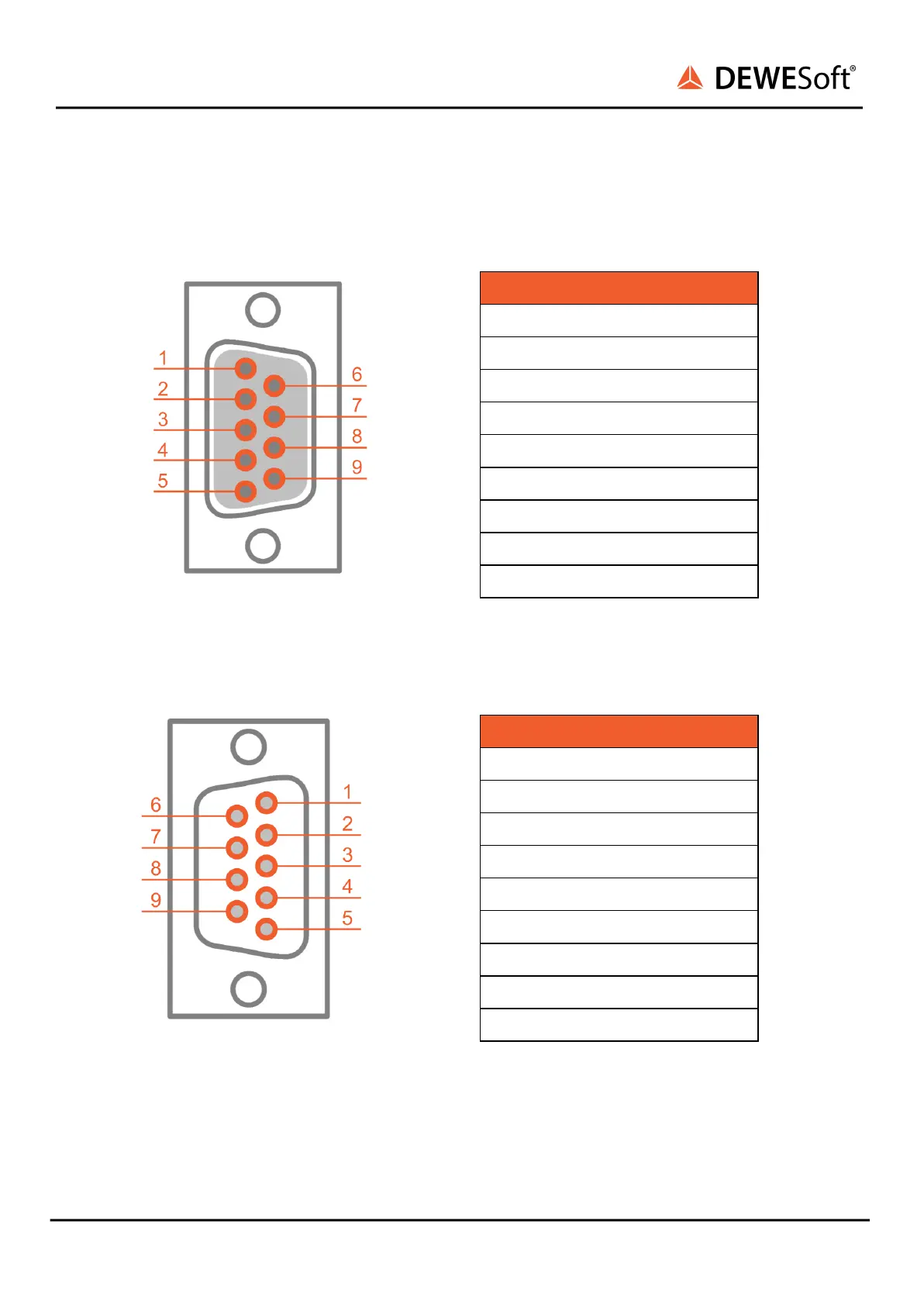

Image 13: Analog input connector (9-pin D-SUB female)

4.1.2. CAN connector

Pin
Description
1
+5V
2
CAN_LOW
3
DGND
4
RES
5
RES
6
DGND
7
CAN_HIGH
8
RES
9
+12V
Image 14: CAN connector (9-pin D-SUB male)



DEWE-43A V20-2 16/38 
