DEWE-43A
TECHNICAL REFERENCE MANUAL



Important
When IRIG-synchronisation is used, the IRIG signal is on pins 1,2
When PPS synchronization is used, the PPS signal is on pin 3
When Clock-Trigger synchronization is used, the signal is on pin 1,2

4.2. Typical sensor connection

For correct measurements, it is highly recommended to ground the DEWE-43A with GND banana plug              
on the side.



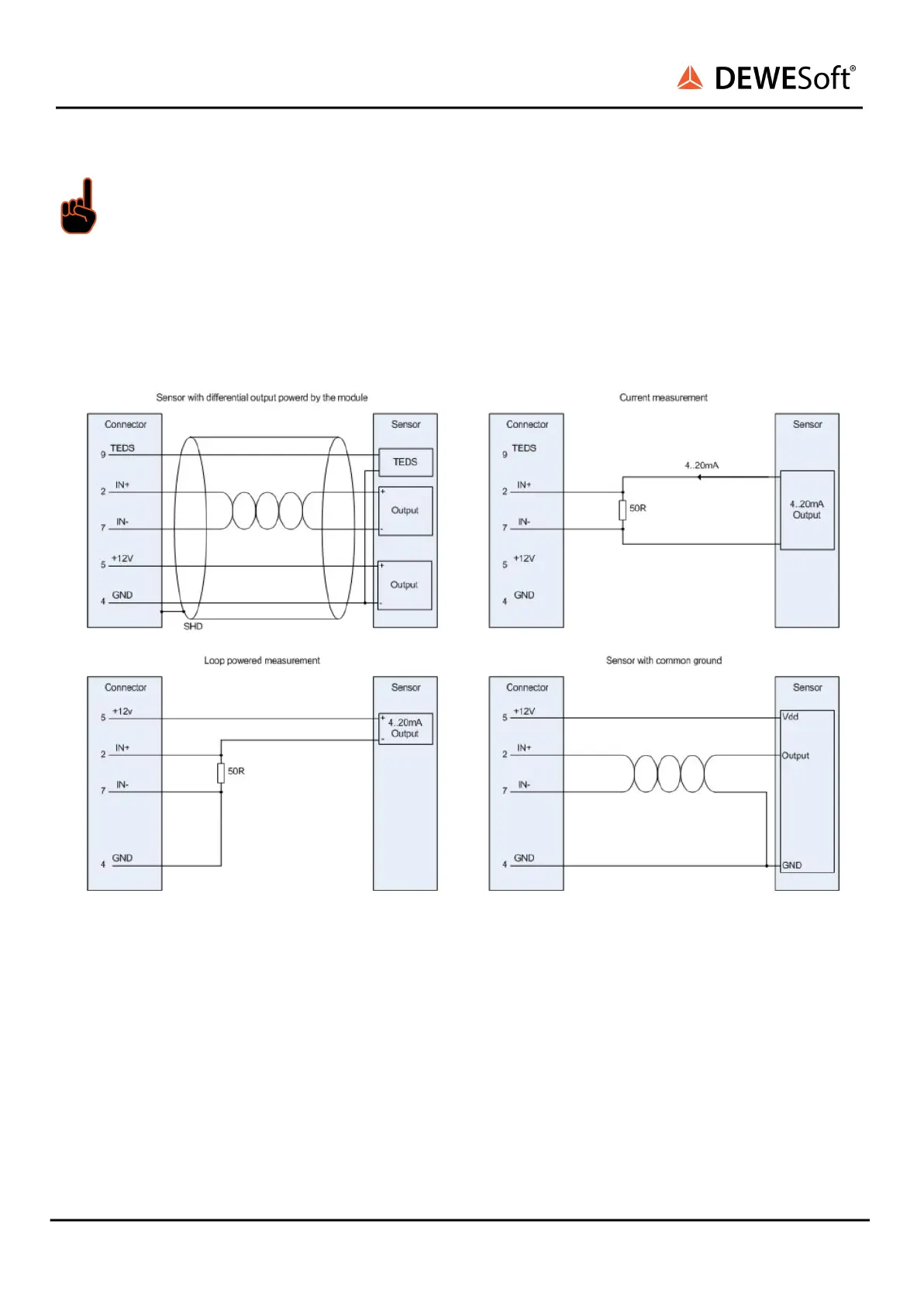

Image 18: Typical sensor connection
DEWE-43A V20-2 18/38 
