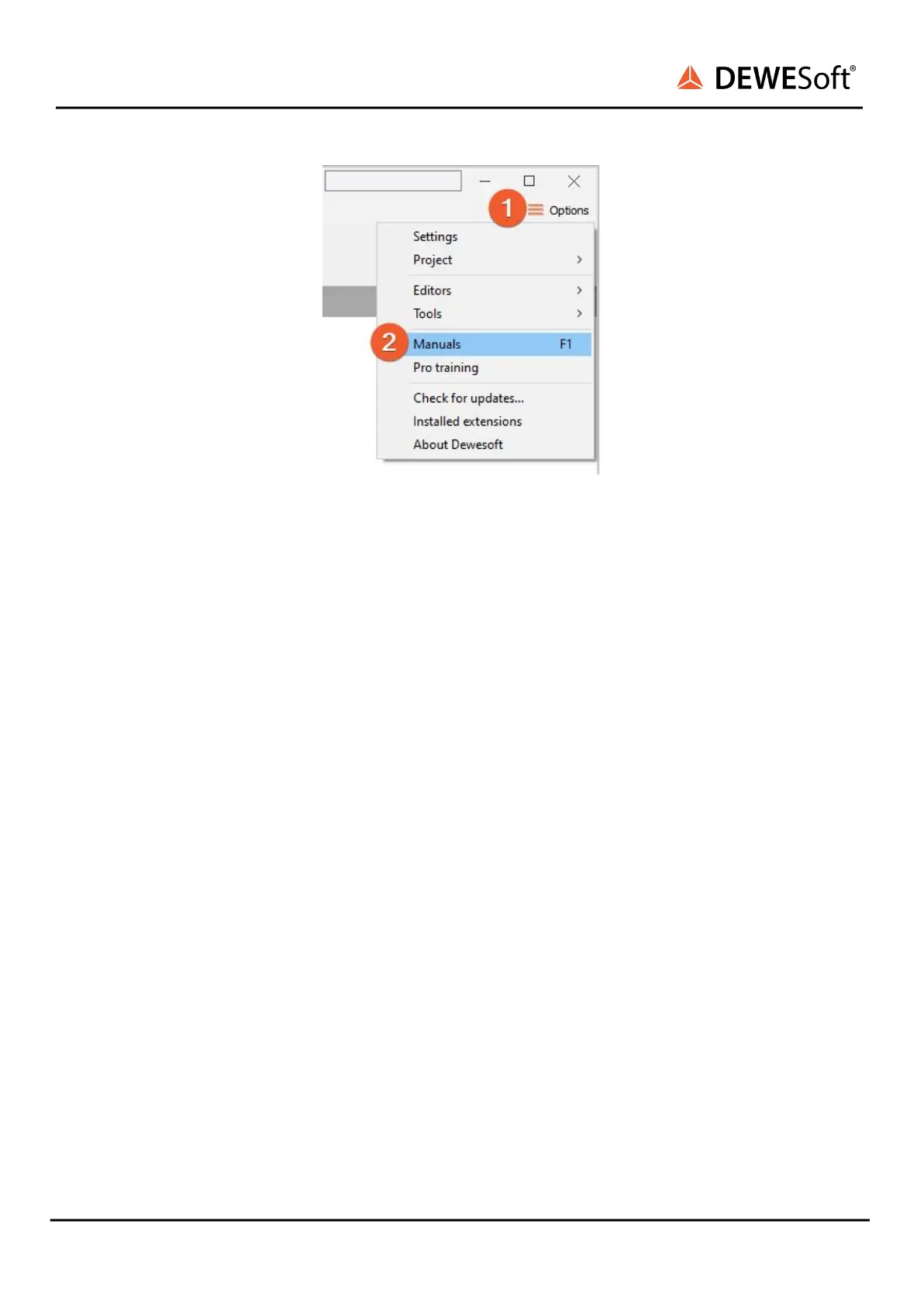

Image 33: Help - Manual

6.3.2. Analog channel setup
In the analogue channel setup screen you can see all channels of your connected DEWE-43A systems.
Per default only the first channel will be set to Used. Unused channels will not show up in measure
mode and can thus not be used for display, calculations or storing: thus, we will also set the other
channels to the used. You can left-click on the Used column of channel 2 (1), hold the mouse button and
move the mouse down to channel 6 (2): then release the mouse button and all channels will be selected
– this is shown by the black rectangle around the buttons. Then you can click into the selected region to
toggle Used/Unused for all channels at once. The selected channels will also be highlighted in the small
preview image of the device (3).
When you press the Setup button of a channel (the column at the right edge of the channel table – not                    
shown in this screen-shot), you can change all the settings of the channel amplifier. You can also change                 
the sample rate of Krypton (4).

