DEWE-43A
TECHNICAL REFERENCE MANUAL

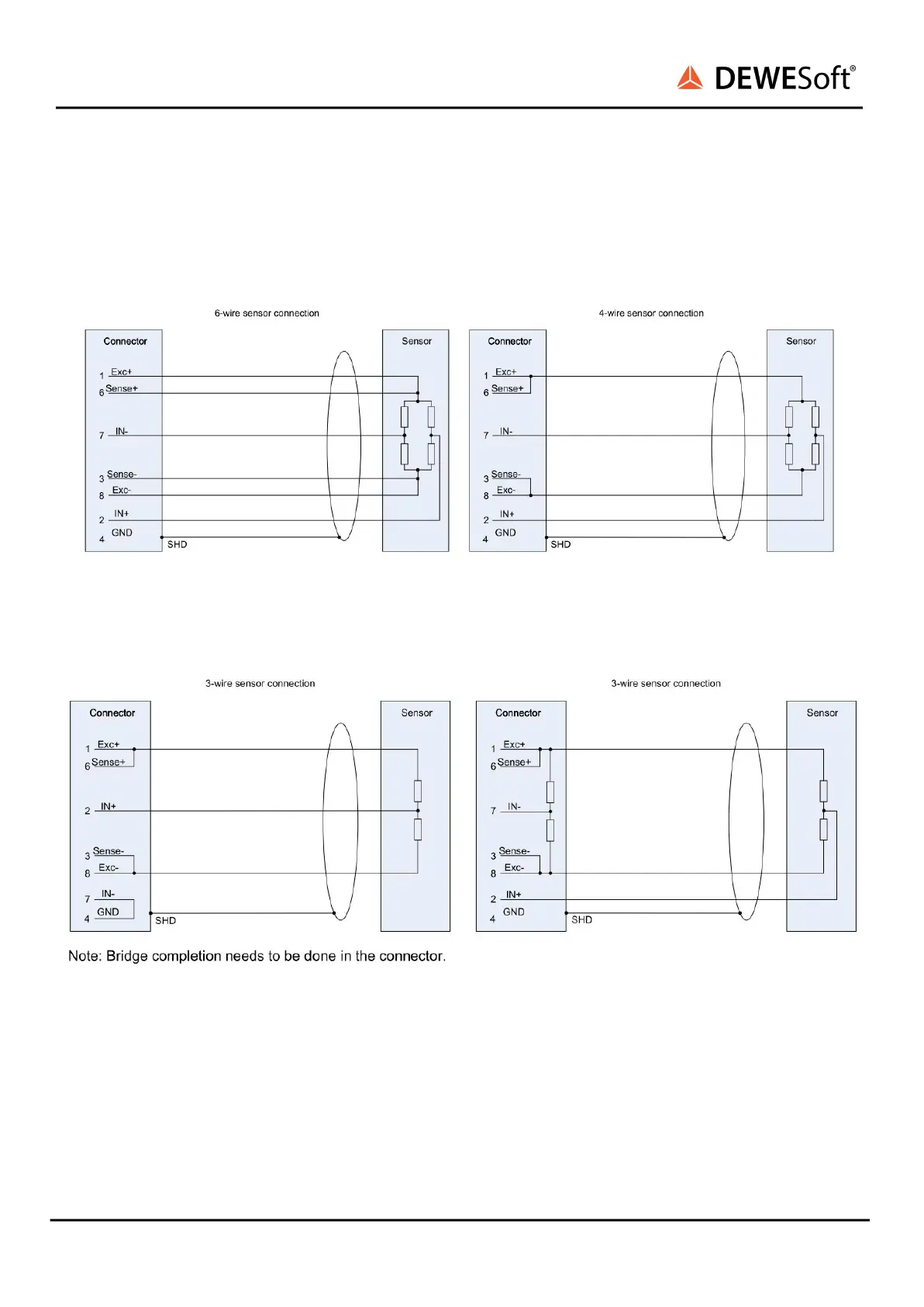

4.2.1. Bridge sensor connection
● Full bridge 10V excitation:
Image 20: Full bridge mode
● Half bridge 10V excitation:
Image 21: Half bridge mode
DEWE-43A V20-2 20/38
