DEWE-43A
TECHNICAL REFERENCE MANUAL

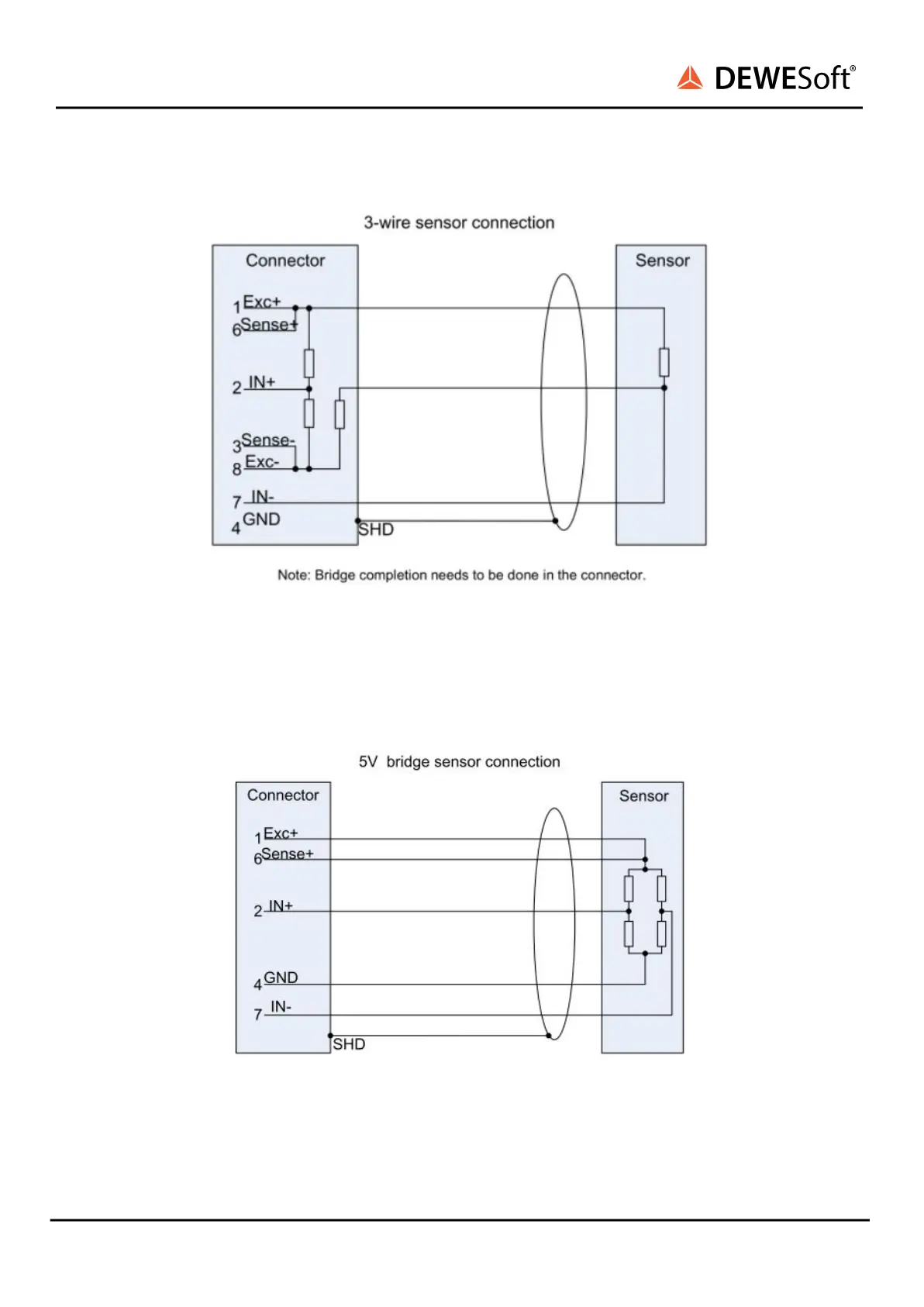

● Quarter bridge 10V excitation:
Image 22: Quarter bridge mode
● Full bridge 5V excitation:
The excitation level between EXC+ and EXC- is 10 V. If lower excitation (5V) is needed, please connect the
GND pin instead of EXC- to negative sensor supply.
Image 23: Full bridge 5V excitation option
DEWE-43A V20-2 21/38
