DEWESOFT DEWE-43A - Counter Input; Power Supply; Sync Connector

DEWE-43A
TECHNICAL REFERENCE MANUAL




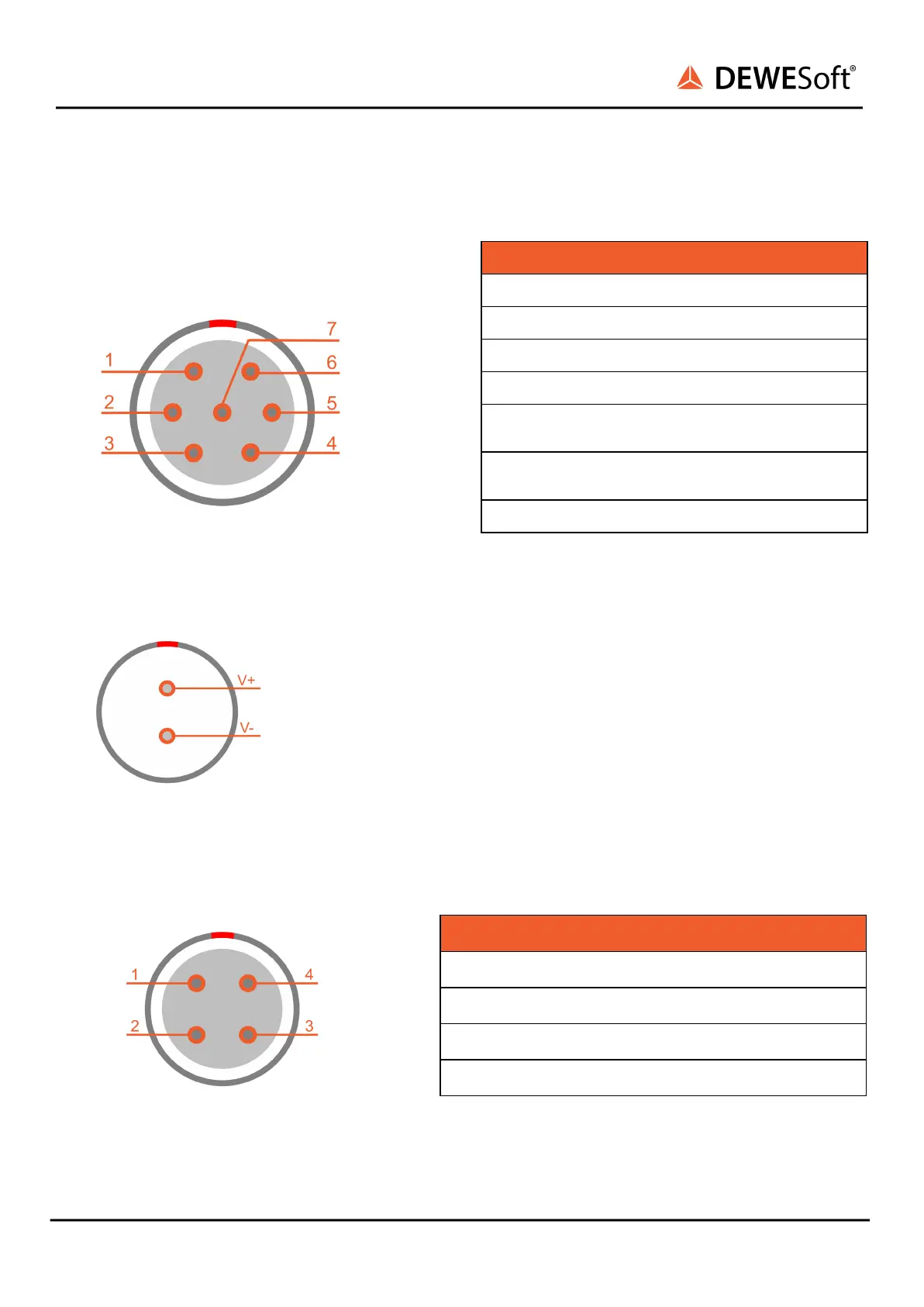

4.1.3. Counter input

Pin
Name
Description
1
IN0/A
Input A
2
IN1/B
Input B
3
IN2/Z
Input Z
4
GND
Ground
5
+5V
5V supply
max. current: 100mA
6
+12V
12V supply
max. current: 10mA
7
GND
Ground
Image 15: Mating cable connector: FGG.1B.307CLAD52
4.1.4. Power supply
Mating cable connector: FGJ.1B.302CLLD42Z

Image 16: LEMO EGJ.1B.302.CLA
4.1.5. Sync connector


Pin
Name
Description
1
CLK
Clock
2
TRIG
Trigger
3
RES
PPS
4
GND
Ground

Image 17: Mating cable connector: FGG.00.304CLAD27Z



DEWE-43A V20-2 17/38 
