DEWE-43A
TECHNICAL REFERENCE MANUAL

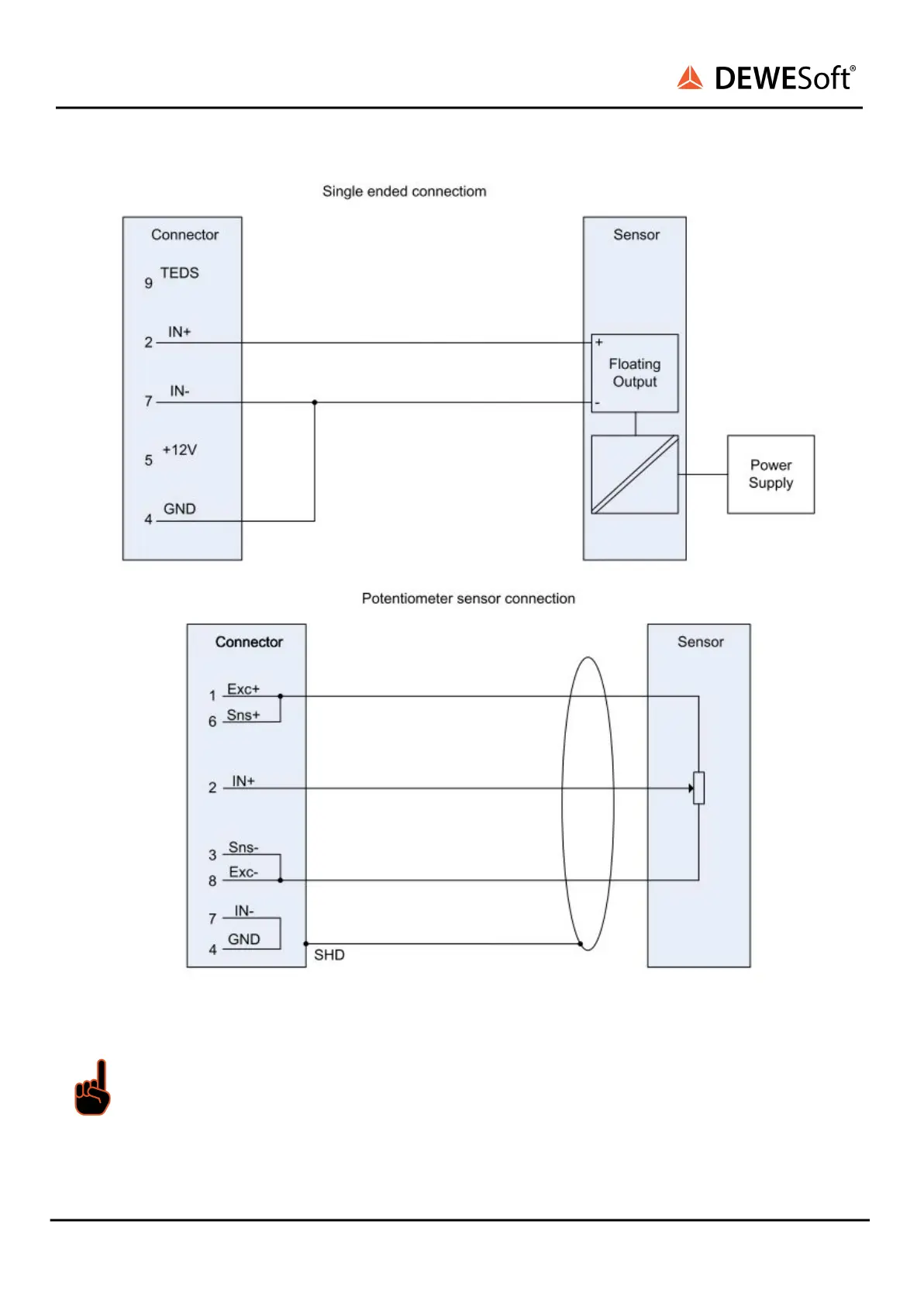

Image 19: Single ended and potentiometer sensor connection
Important
If sensors or other signal sources with isolated external power supply are used, ground signals
of DEWE-43A and external power supply should be connected over connector GND wire or
over “common GND” input on housing to prevent common-mode voltage problems.
DEWE-43A V20-2 19/38
