DEWESOFT VIBRO KIT V20-2 User Manual

VIBRO KIT
TECHNICAL REFERENCE MANUAL

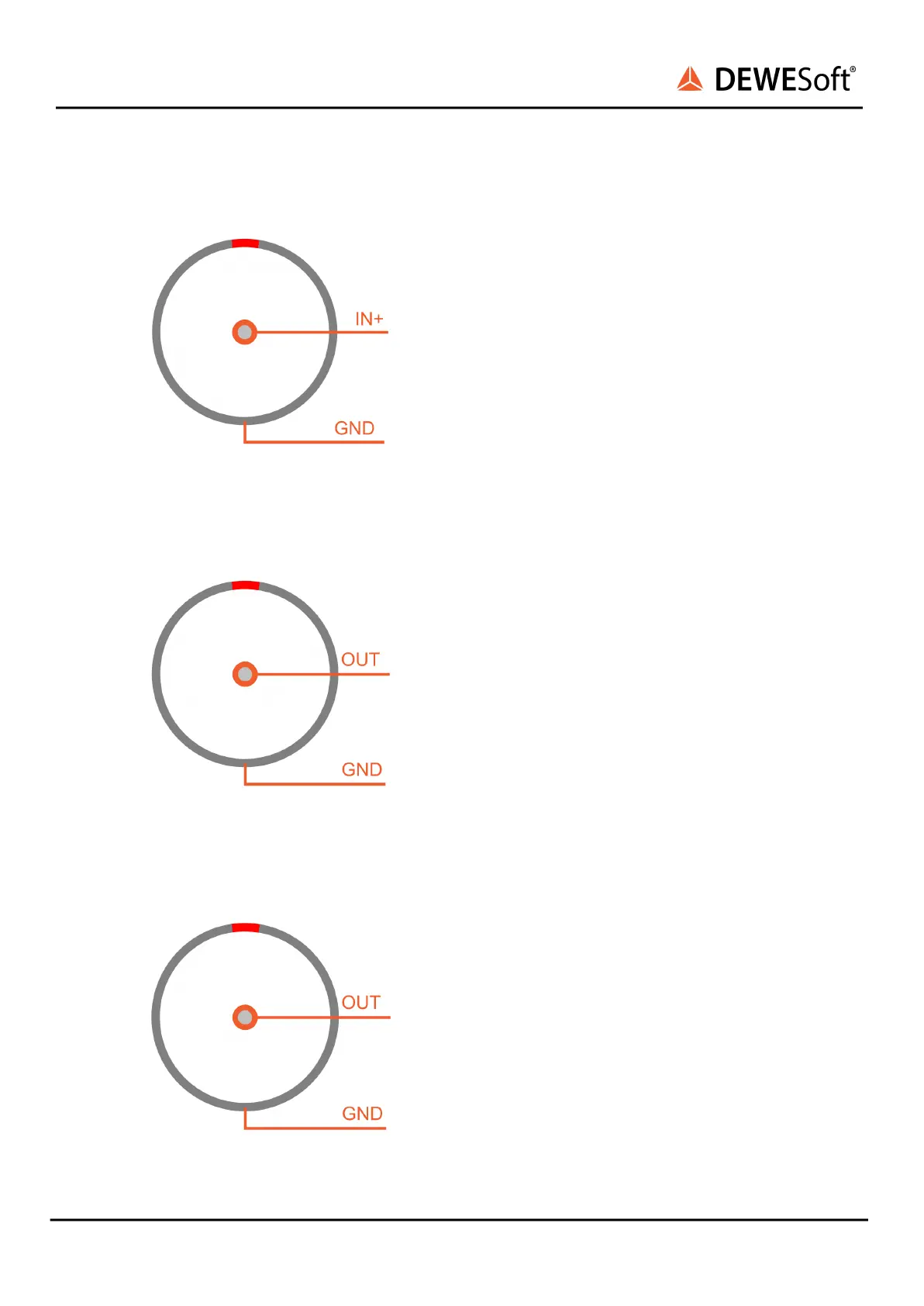

Control IN connector
BNC female connector
Using an input signal if you want to control the
RPM of an internal motor with voltage signal.
Tacho 1 Out
BNC female connector
Measuring an output signal from an optical
sensor that is integrated below the rotating disk.
Tacho 2 Out
BNC female connector
Measuring an output signal from an optical
sensor that is integrated below the rotating disk.
VIBRO KIT V20-1 10/29
