The order tracking module creates a display with two 3D graphs to show order and FFT waterfalls, two
2D graphs to show the order harmonics and phase of the harmonics and a digital meter to monitor the
RPMs of the machine.

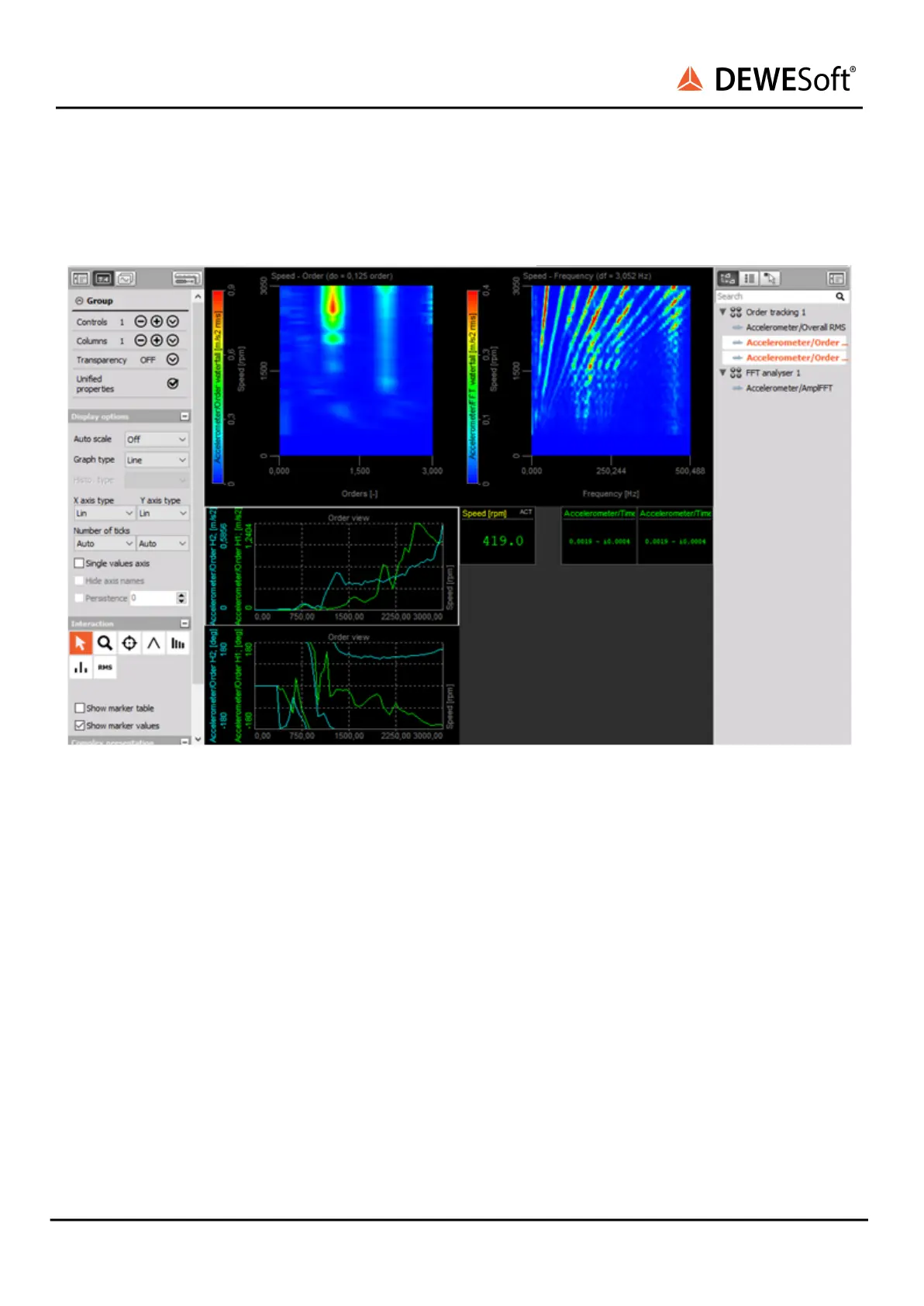

Image 15: Order tracking screen
4.4 Balancing
Additional needed equipment: SIRIUS with one ACC (single plane balancing) or two ACC modules (dual
plane balancing), accelerometer (single plane balancing) or two accelerometers (dual plane balancing),
additional screws for balancing the rotor.
Select the input channel (vibration) and define the frequency source (counters, analog sensor, RPM
channel). Balancing procedures should be done at constant RPMs.
