VIBRO KIT
TECHNICAL REFERENCE MANUAL
3.3 Vibro-kit parts description
3.3.1 Encoders
Using projection below the left side refers to the Tacho 1 output signal and right side refers to the Tacho
2 output signal.

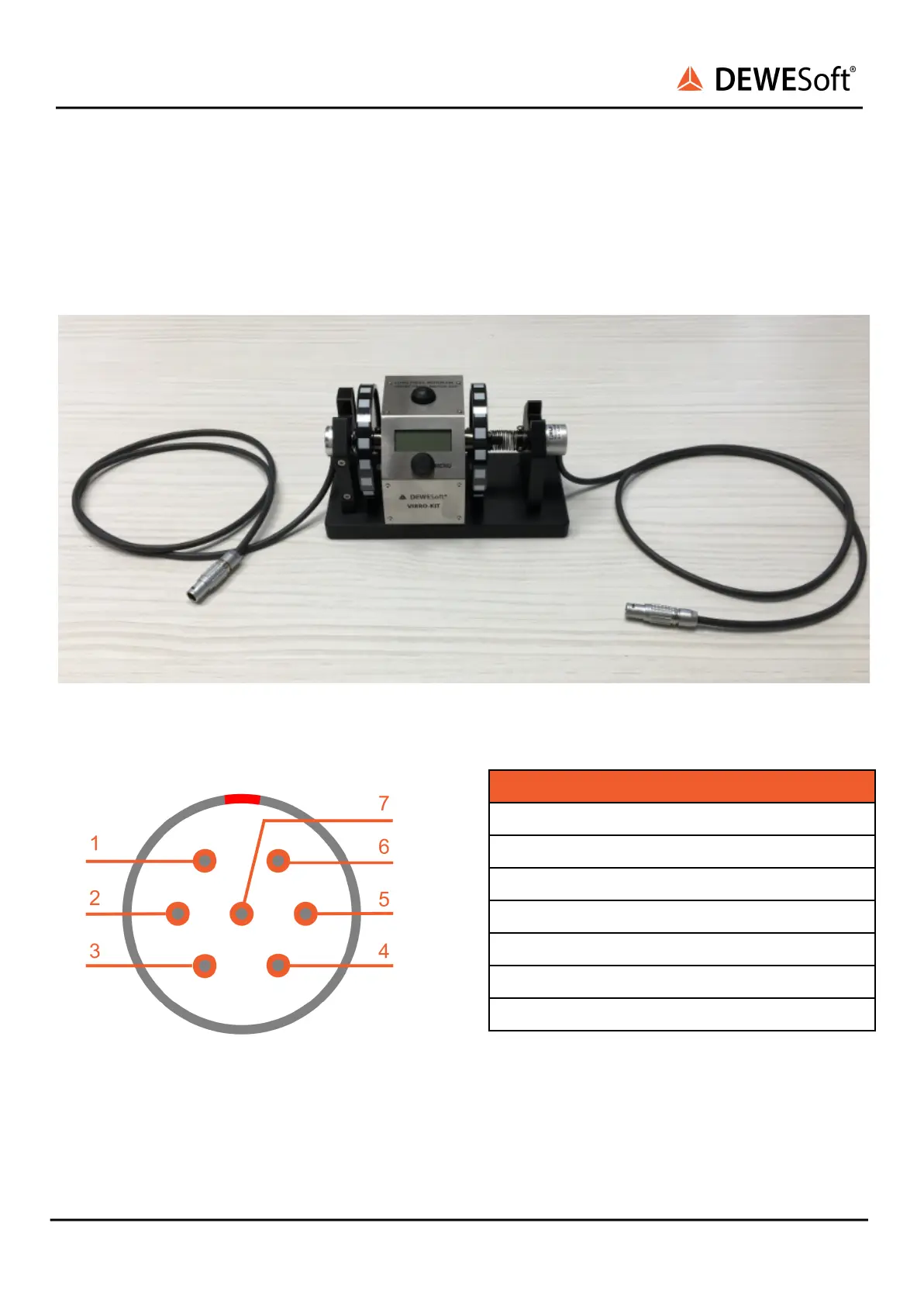

Image 1: Vibro-kit unit
Counter input connectors on cable
Pin
Name
Description
1
IN0/A
Output A
2
IN1/B
Output B
3
IN2/Z
Output Z
4
GND
Ground
5
+5V
5V supply
6
+12V
12V supply
7
GND
Ground
VIBRO KIT V20-1 6/29
