4.5 Torsional vibration
Additional needed equipment: SIRIUS with 2 CNT modules and accelerometer.
Connect two angle sensors to SIRIUS. Add a torsional vibration module. Select the first (reference) and
second angle sensor input and assign sensors to the counter channels.
Select the wanted output channel from the module. Detailed description of the parameters and setting
can be found here: https://training.dewesoft.com/online/course/rotational-and-torsional-vibration

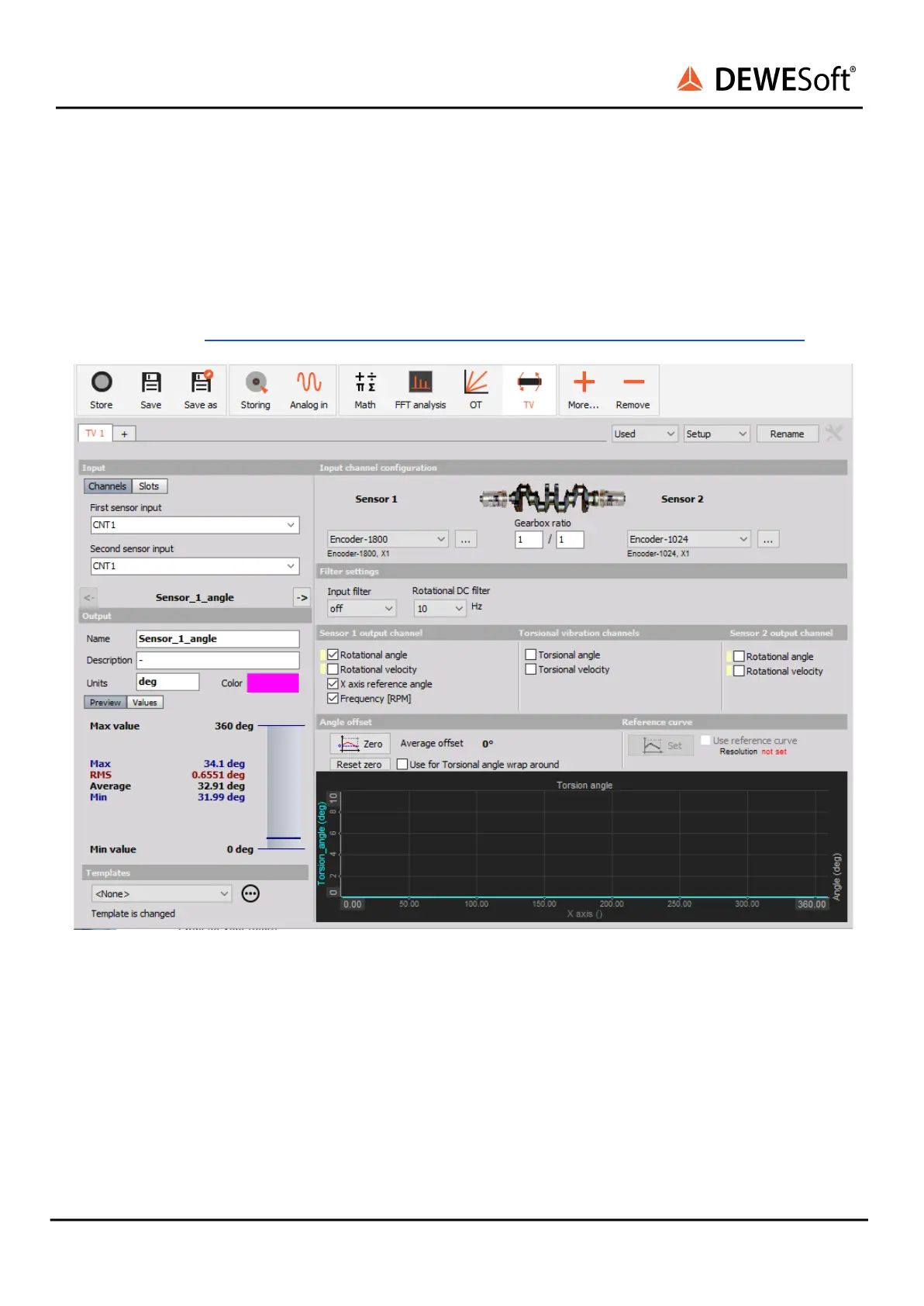

Image 18: Torsional vibration settings
Enter the measure mode. The plugin creates a new display with 2 XY recorders for displaying the
rotational angles and torsional angle against the reference angle sensor.
On the time recorder, you can see the behavior of the rotational angle and observe how the vibrations
change with the RPM.
