On the FFT graph, you can show the markers and how FFT behaves with different parameters in the
setup. For an explanation of all the parameter visit:
https://training.dewesoft.com/online/course/fft-spectral-analysis
4.3 Order tracking
Additional needed equipment: SIRIUS with one ACC and one CNT module, accelerometer.
Glue the accelerometer on the Vibro Kit and connect it to the ACC module. Connect encoder to the CNT
module. Open channel setup and set the acceleration sensor to IEPE mode and enter the correct
sensitivity. Add an Order tracking module.

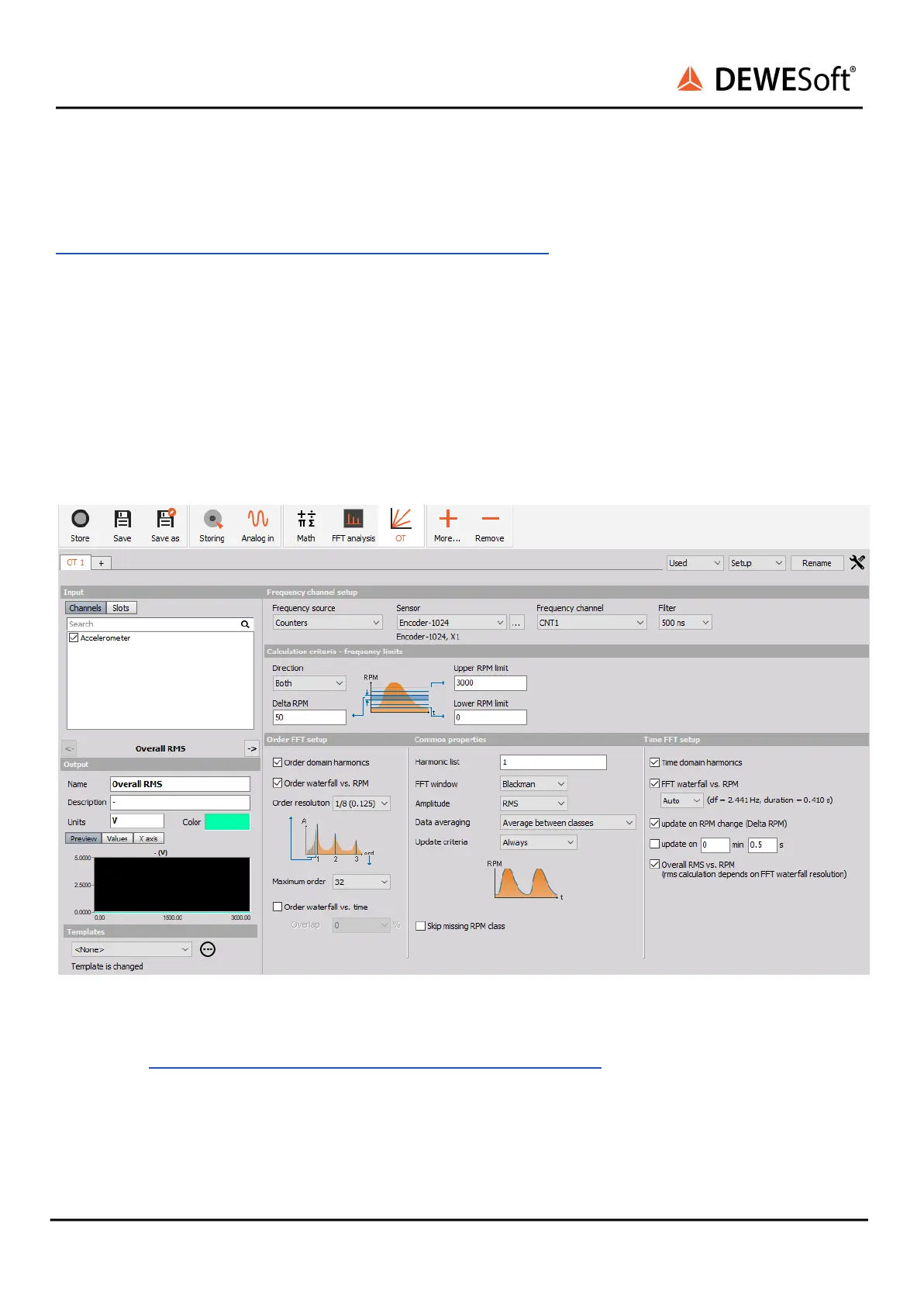

Image 14: Order tracking settings
Select the vibration and the frequency input channel. Detailed description of all the parameters can be
found here: https://training.dewesoft.com/online/course/order-tracking
Enter the measure mode, and run the machine slowly from 0 RPM to 3000 RPM.
