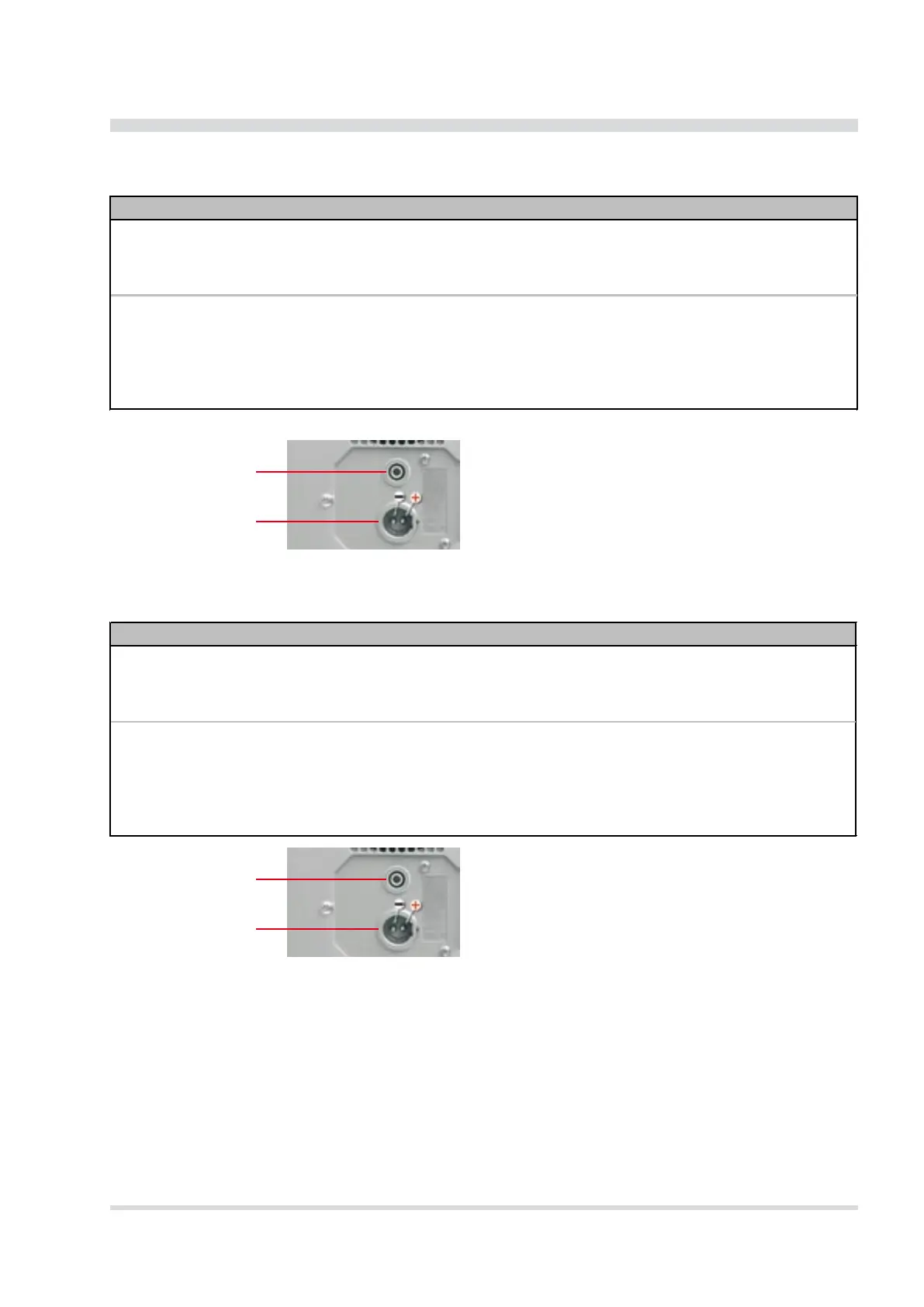

300 W DC power supply
300 W DC power supply APT-DX 300HEW
Input:
Input range:
9 to 18 V
DC
(12 V
DC
nom.)
Input frequency: DC
Max. input current:50 A
Output:
Output power: 300 W
Output voltages:+3.3 V(max. 20 A, min. 0.3 A)
+5 V(max. 35 A, min. 0.3 A) -5 V(max. 0.5 A)
+5 Vsb(max. 2 A)
+12 V(max. 15 A) -12 V(max. 1 A)
Ground connector
DC power supply
300 W DC power supply
300 W DC power supply APT-DY300HEW
Input:
Input range:
18 to 36 V
DC
(24 V
DC
nom.)
Input frequency:DC
Max. input current: 25 A
Output:
Output power: 300 W
Output voltages:+3.3 V(max. 28 A)
+5 V(max. 30 A, min. 3 A, peak 35 A) -5 V(max. 1 A)
+5 Vsb(max. 1.5 A)
+12 V(max. 12 A, min. 1 A, peak 15 A) -12 V(max. 2 A)
Ground connector
DC power supply
