Main System
Optional connector for current power probe supply
This connector supports ±9 V current power probe supply for connecting current clamps.

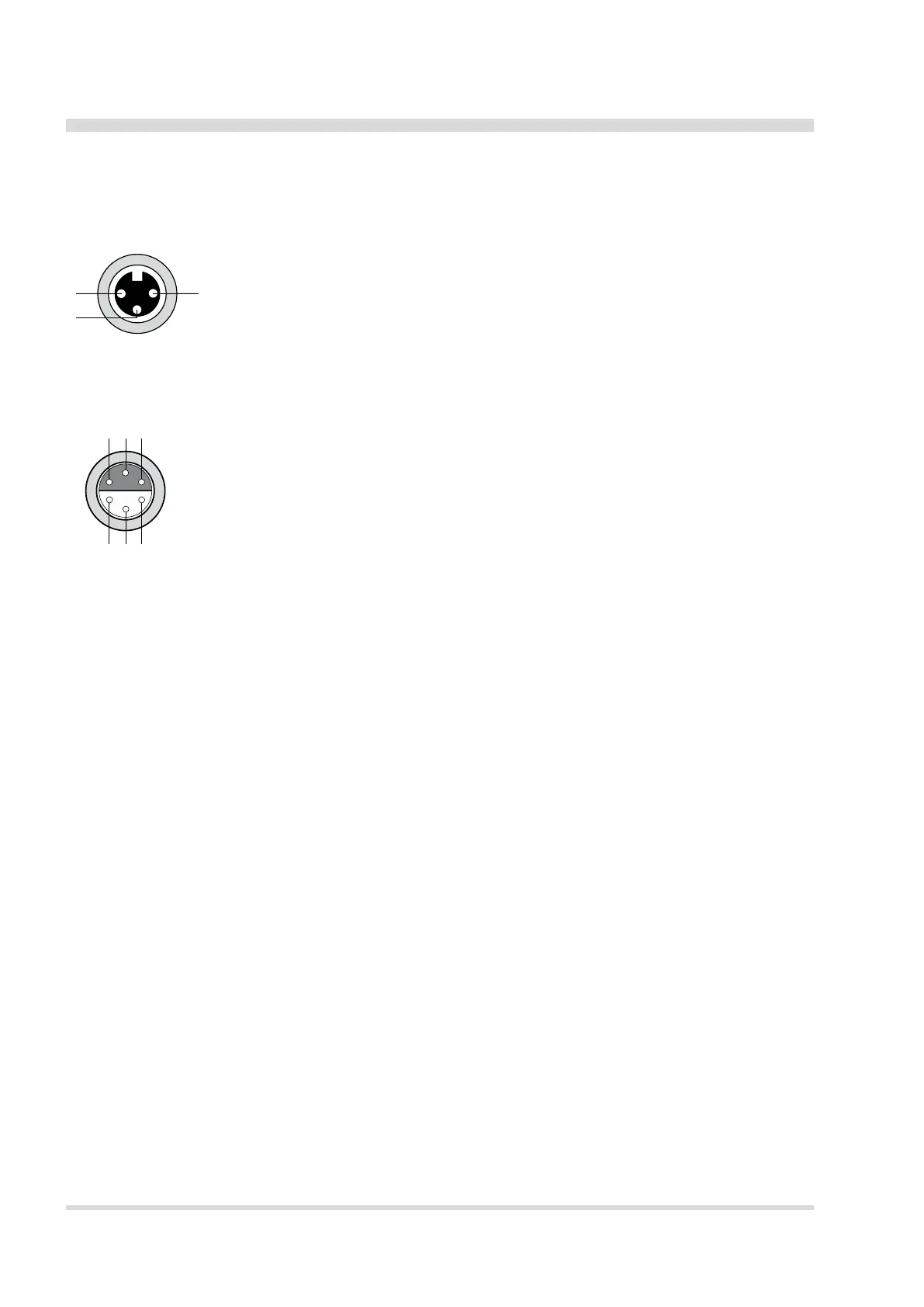

3-pin Binder series connector
3
2
1
BINDER-712 series
6-pin male/female Lemo connector (with digital inputs of ORION board)
3 2 1
456
Lemo EGG.1B.306
Pin assignment
1: +15 V
2: -15 V
3: +9 V
4: DGND
5: DI(x)
6: DGND
x .. digital inputs 0..7 of the ORION board
Pin assignment
1: +9 V
2: GND
3: -9 V
