8514-219-001 REV E PAGE 10

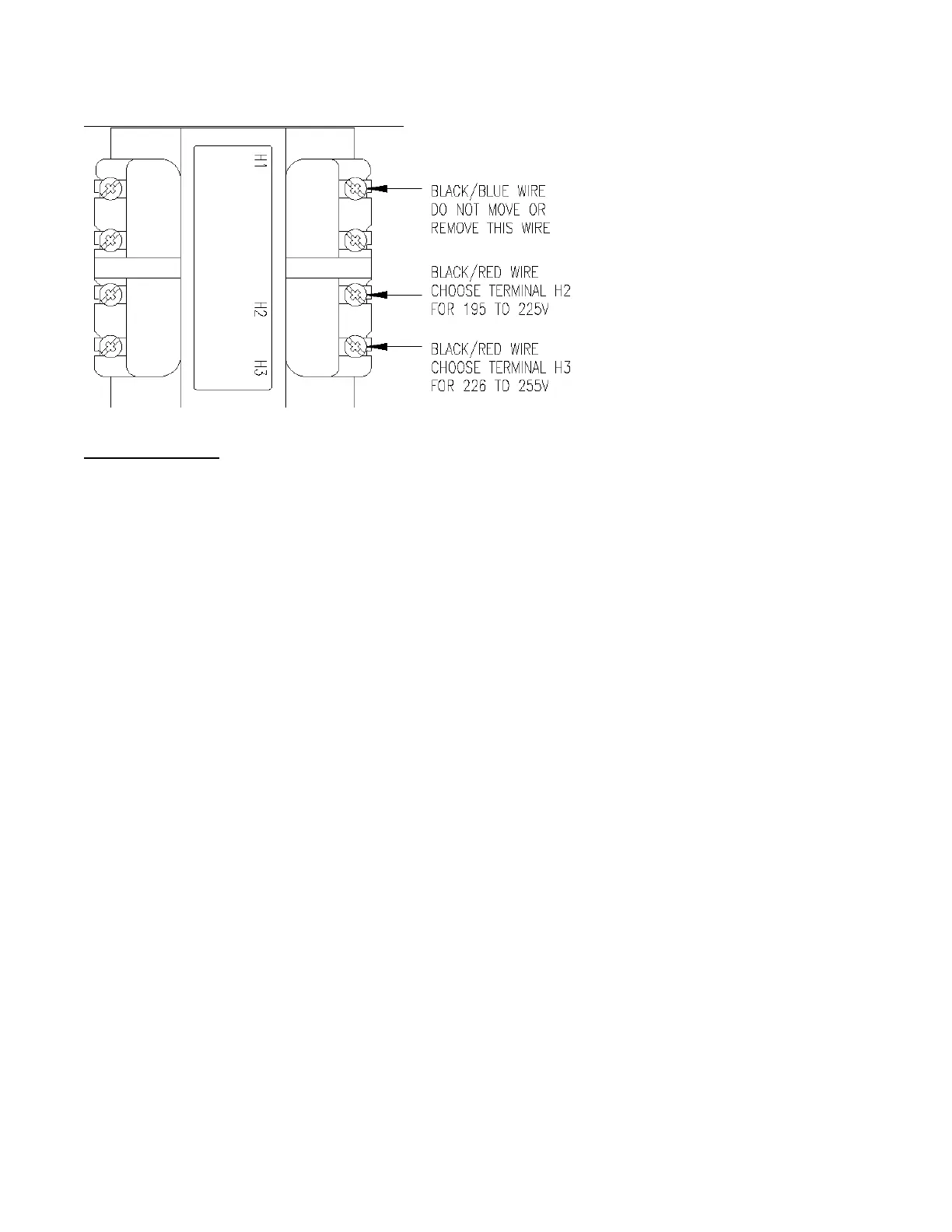

CONTROL TRANSFORMER CONNECTIONS Adjustment for different voltages of supply mains.
IMPORTANT: TRANSIENT VOLTAGE SURGE SUPPRESSORS
Like most electrical equipment your new machine can be damaged or have its life shortened
by voltage surges due to lightning strikes which are not covered by factory warranty. Local
power distribution problems also can be detrimental to the life of electrical components. We
recommend the installation of transient voltage surge suppressors for your new equipment.
These devices may be placed at the power supply panel for the complete installation and don’t
require an individual device for each machine.
These surge protectors help to protect equipment from large spikes and also from small
ongoing spikes in the power that occur on a day to day basis. These smaller surges can
shorten overall life of electrical components of all types and cause their failure at a later date.
Although they can’t protect against all events, these protective devices have a good reputation
for significantly lengthening the useful life of electronic components. Electronic components
are helped to have a longer useful life when they are supplied with the clean stable electrical
power they like.
6. EXHAUST INSTALLATION. (Refer to Figure 3 at the end of section 6.) Exhausting of the
dryer(s) should be planned and constructed so that no air restrictions occur. Any restriction
due to pipe size or type of installation can cause slow drying time, excessive heat, and lint in
the room.
From an operational standpoint, incorrect or inadequate exhausting can cause a cycling of
the high limit thermostat, which shuts off the heating elements and results in inefficient
drying.
Individual exhausting of the dryers is required. All heat, moisture, and lint should be exhaust
outside by attaching a pipe of the proper diameter to the dryer adapter collar and extending it
out through an outside wall. This pipe must be very smooth on the inside, as rough surfaces
tend to collect lint, which will eventually clog the duct and prevent the dryer from exhausting
properly. All elbows must be smooth on the inside. All joints must be made so the exhaust
end of one pipe is inside the next one downstream. The addition of an exhaust pipe tends to
