49
Part # 8533-090-001 7/21
Control Menu:
The Control menu allows for the user to observe important technical information for the control. No chang-
es can be made at this menu. See below for detailed information on each sub menu.
1. “Serial Number”: This is the control serial number.
2. “MAC Address”: The MAC Address is a unique identier designated to the control by the manu
facturer. It allows the control to be recognized by network routers.
3. “IP Address”: The IP Address is the identier given to the control by a network system.
4. “M Firmware”: The M Firmware is the Main Firmware currently loaded onto the control.
5. “C Firmware”: The C Firmware is the Communications Firmware currently loaded onto the con
trol.

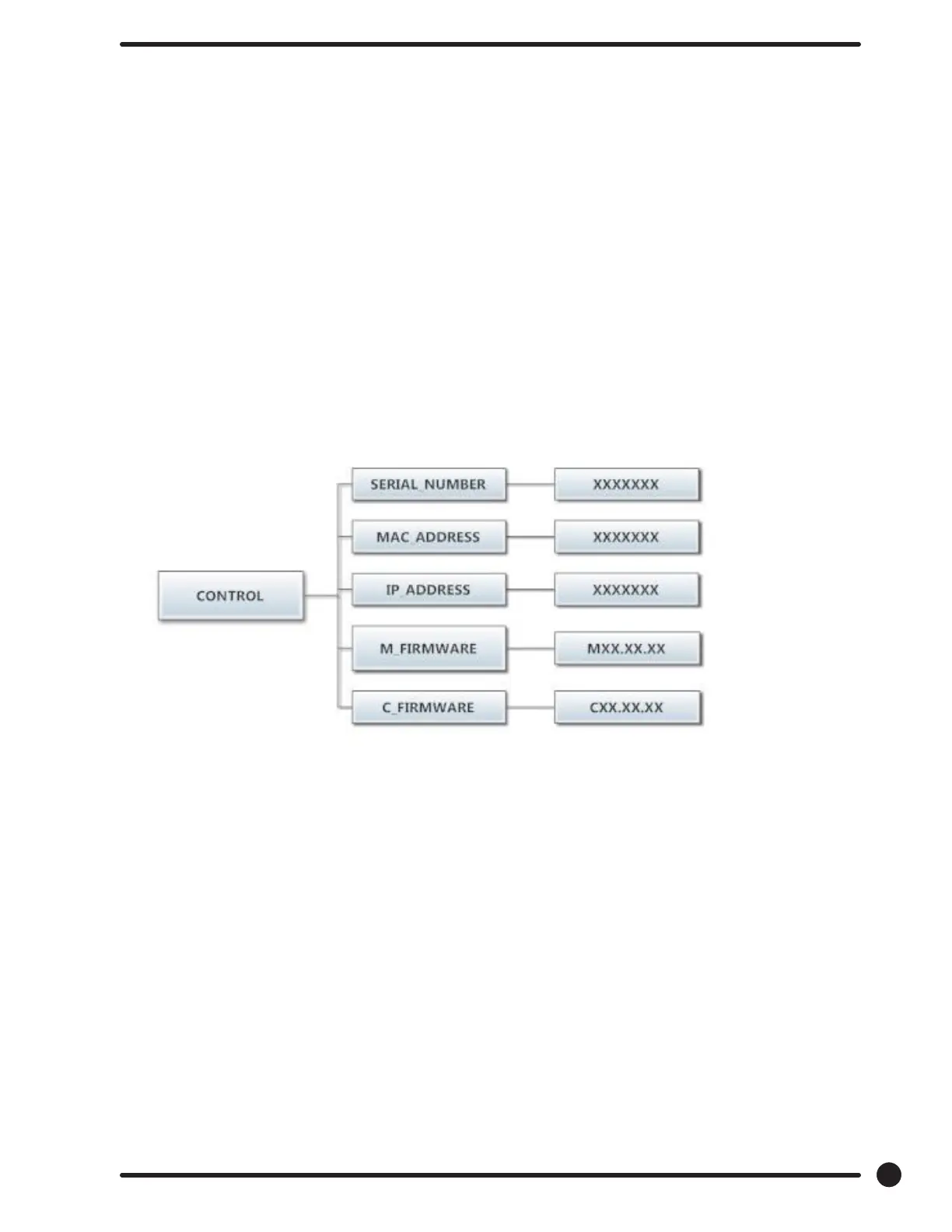

The gure below shows the sub menu options for Control:
