2.2 END OF CYCLE
When the cycle is complete, the time will display “0” and a 5-second tone
will sound. The door can now be opened. Immediately remove contents
of washer. Leave the door open when the machine is not in use.
2.3 SAFETY DOOR LOCK
This machine is equipped with a safety door lock that locks the door when
the cycle is started until the cycle is complete. The door lock prevents
opening the door for up to 3 minutes if the power is interrupted during
the cycle.
2.4 VARIABLE FREQUENCY DRIVE INDICATORS

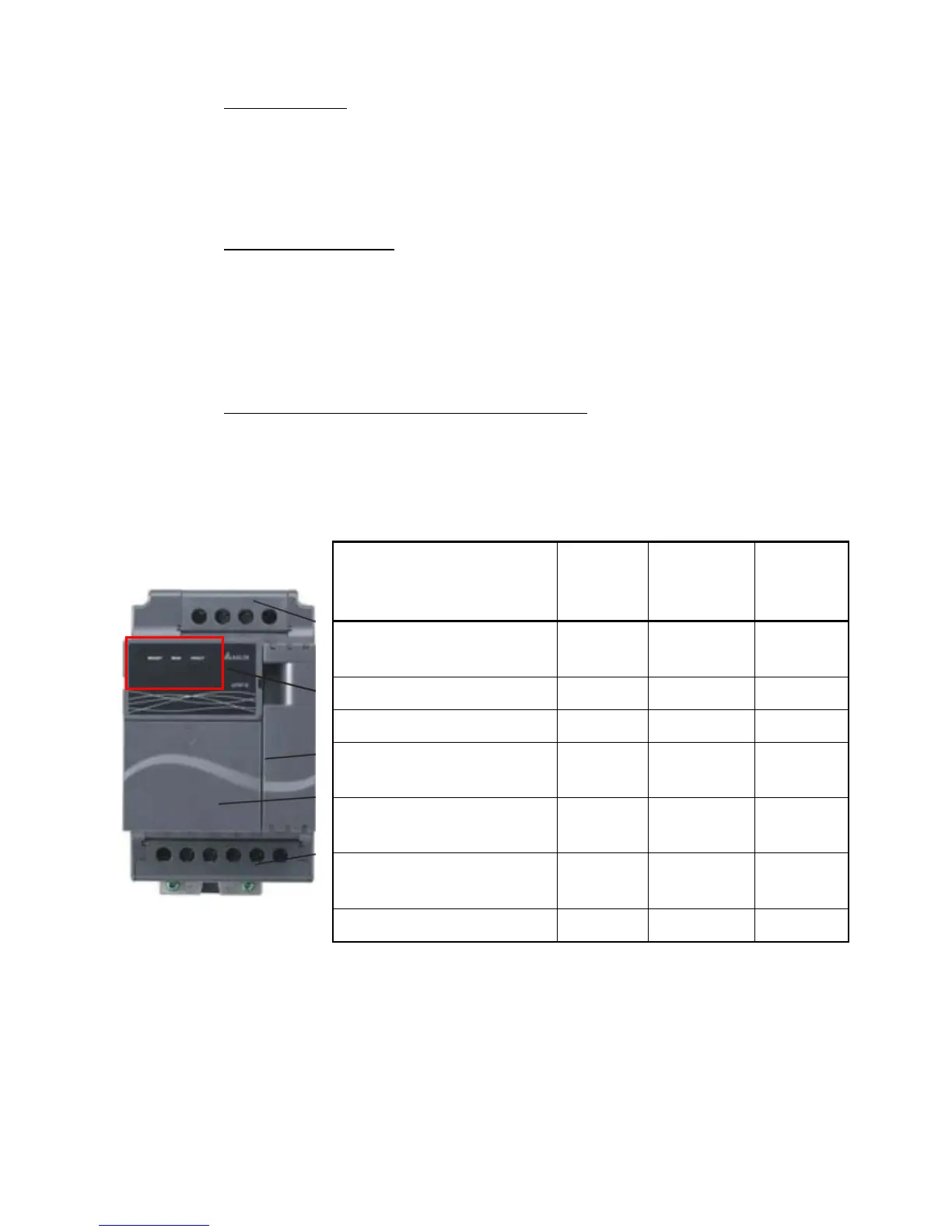

There are three small red LEDs located on the upper Variable Frequency
Drive (VFD) cover. They are labeled as “READY”, “RUN”, and “FAULT”
and can be used for troubleshooting. The definitions of the LEDs are
listed in Table 4 below.
Table 4: Variable Frequency Drive Indicators
Idle Mode
(No Cylinder Movement)
Ramp to Intermediate or
Final Extract Spin
Spinning
(Intermediate or Final)
Stop from Spin
(Intermediate or Final)
