1.6.4 MAXIMUM SPIN SPEED ADJUSTMENT
If desired, the washer can be adjusted to limit the maximum
extract spin speed for all wash cycles.
To make this adjustment, a jumper wire must either be installed or
removed on the Variable Frequency Drive (VFD), depending on the
washer model and desired speed. This Dexter jumper part number
8220-057-036 (qty 1) is factory supplied on terminal points “10V”
and “RC”. Remove this jumper to make new jumper connections if
necessary. Refer to Figure 1-6 for the approximate location of the
control terminations on the Variable Frequency Drive (VFD) and
Table 2 for appropriate jumper connection points indicated with an
“X” for the desired maximum spin speed setting. If no adjustment
to default spin speed is desired, do not remove or add any wires on
VFD.

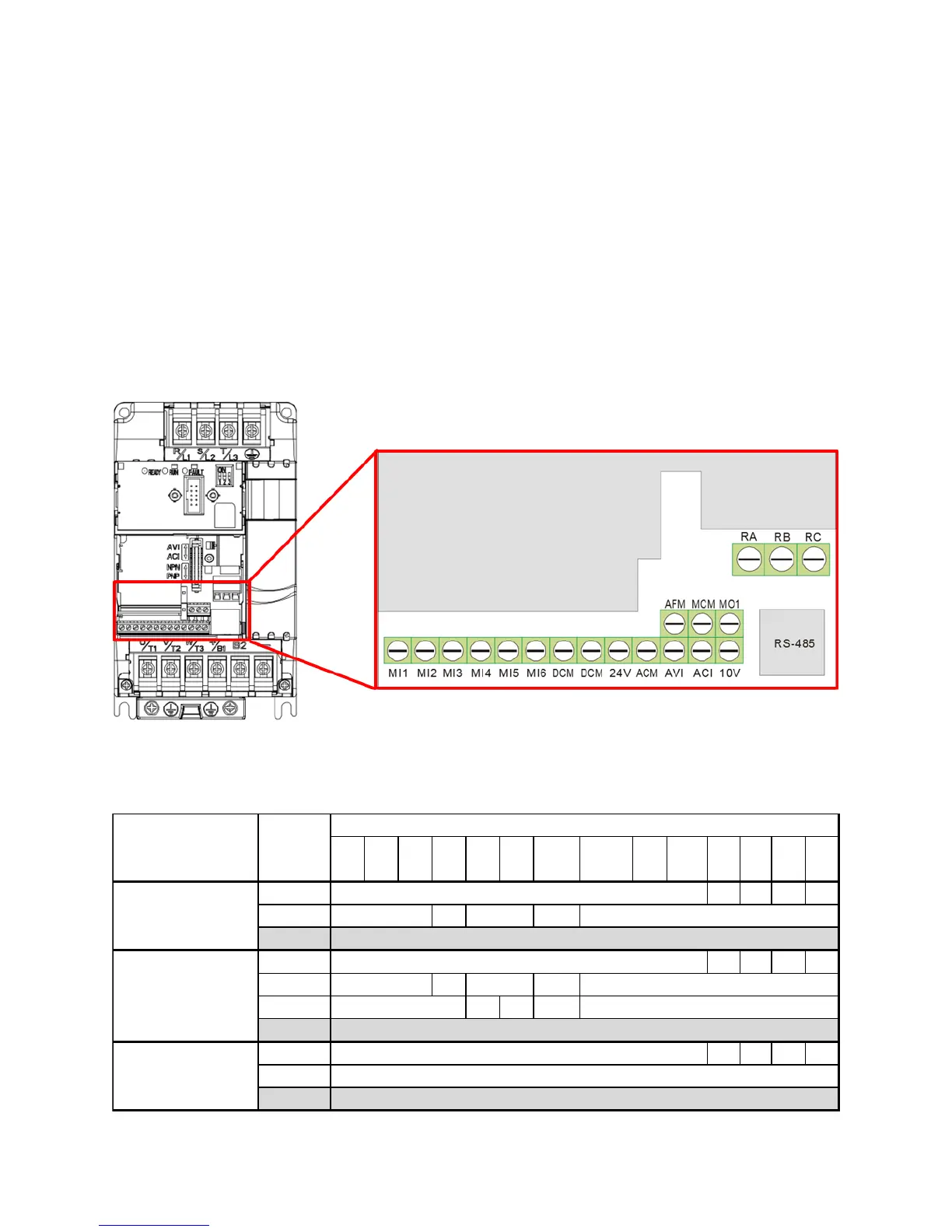

Figure 1-6: Control Terminations on Variable Frequency Drive
MI1 MI2 MI3 MI4 MI5 MI6
DCM
(Left)
DCM
(Right)
24V ACM AVI ACI 10V M01
60 G X X
80 G X X
100 G
60 G X X
100 G X X
140 G X X
200 G
100 G X X
140 G
200 G
Max Spin
Speed
V Series Washer
Model
REMOVE Brown Jumper between MI5/M01
Default Setting (With Factory Installed Brown Jumper)
Default Setting (No Jumper Required)
Default Setting (No Jumper Required)
Jumper Terminal Locations on Variable Frequency Drive (VFD)
T-300, T-400,
T-600, T-900,
T-1200
T-350, T-450,
T-750
T-950, T-1450
Table 2: Spin Speed Adjustment Jumper Locations
