Dexter Laundry T-950 - T-650 Machine Mounting Detail

8514-296-001 REV K page 29

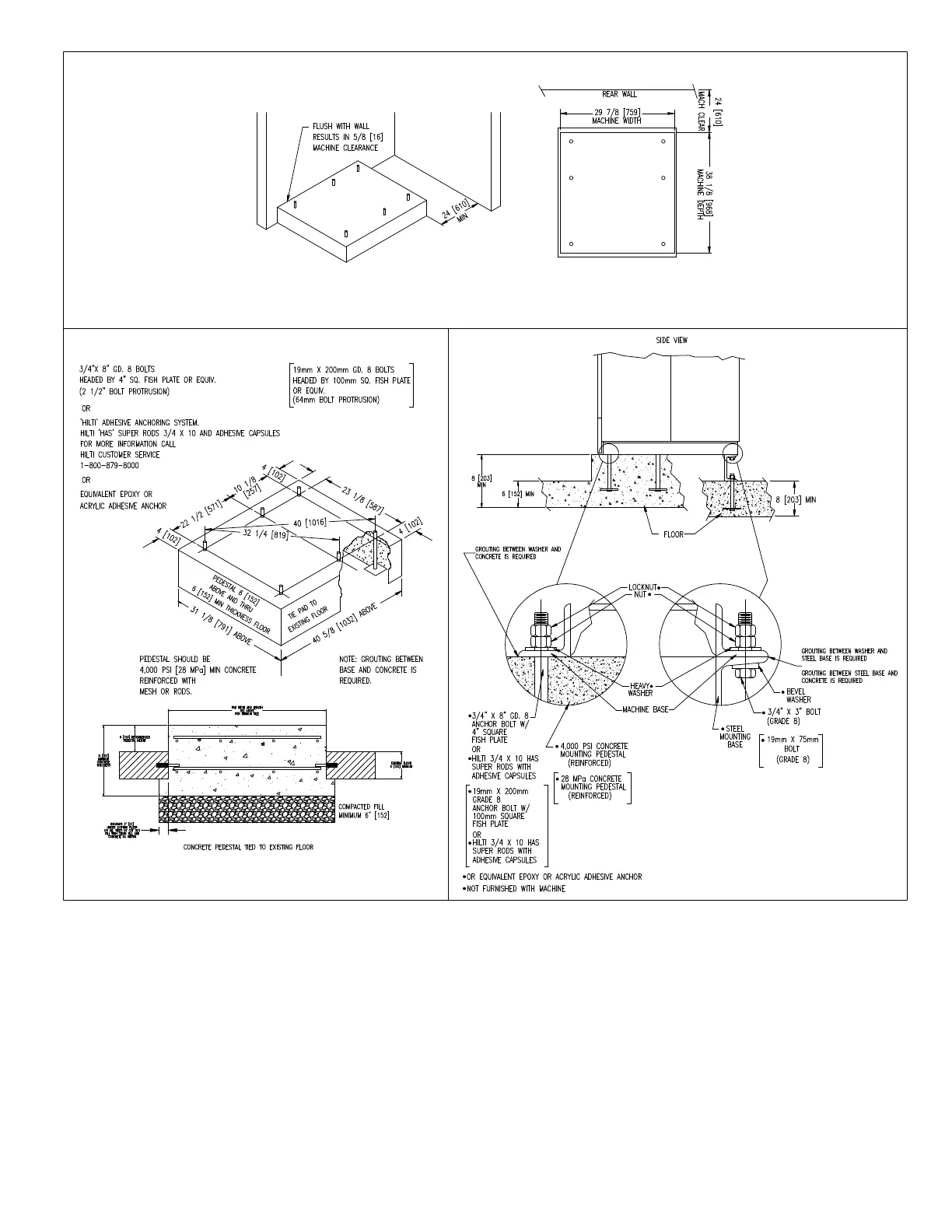

RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1
MACHINE MOUNTING DETAIL
Figure 1-2
FLOOR OUTLINE
Figure 1-3
2.7.16 T-650 Machine Mounting Detail
