Dexter Laundry T-950 - T-750 Machine Mounting Detail

8514-296-001 REV K page 32

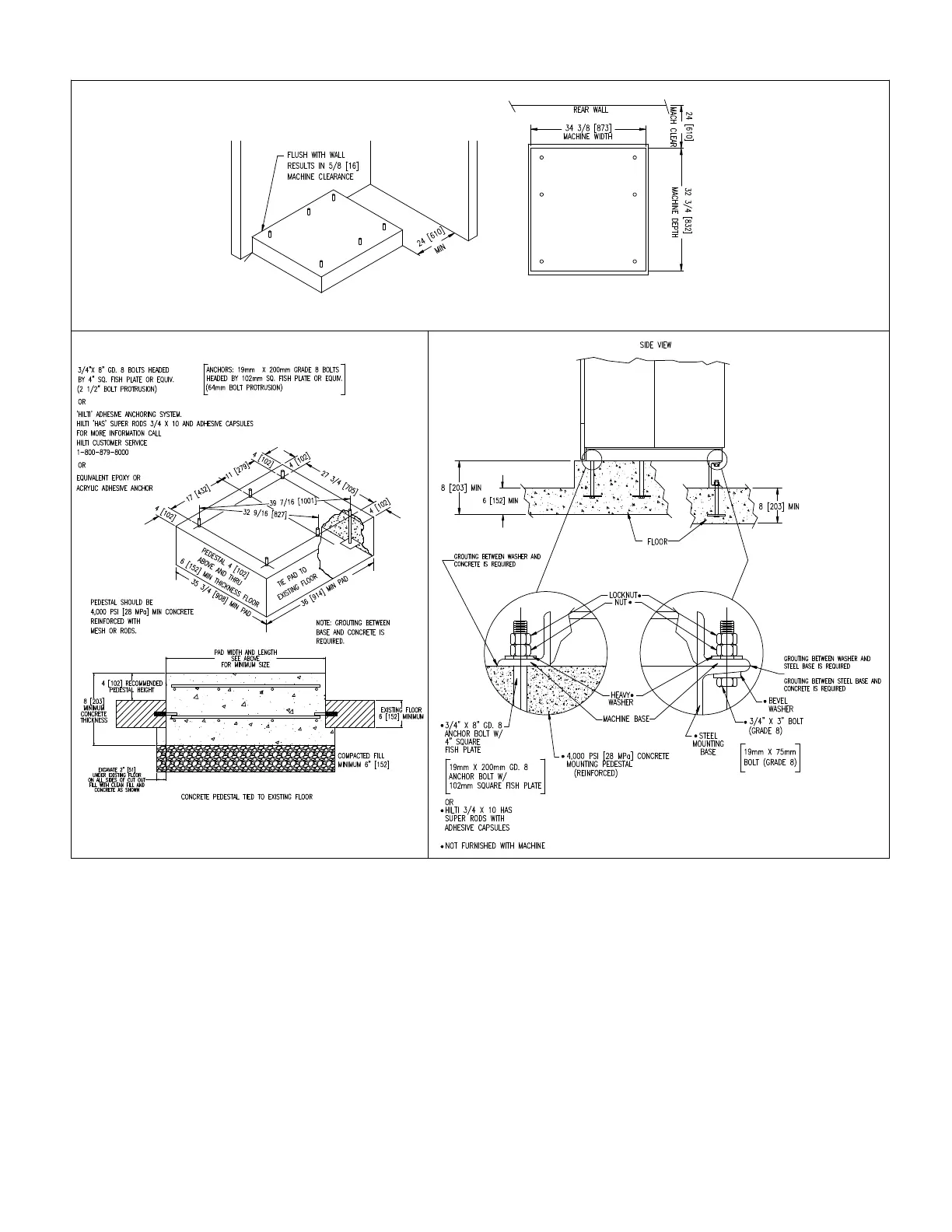

RAISED CONCRETE PEDESTAL MOUNTING OPTION
Figure 1-1
FLOOR OUTLINE
Figure 1-3
MACHINE MOUNTING DETAIL
Figure 1-2
2.7.19 T-750 Machine Mounting Detail
