DFI KS211 - Mechanical Dimensions

www.dfi .com
10
Chapter 1 Introduction

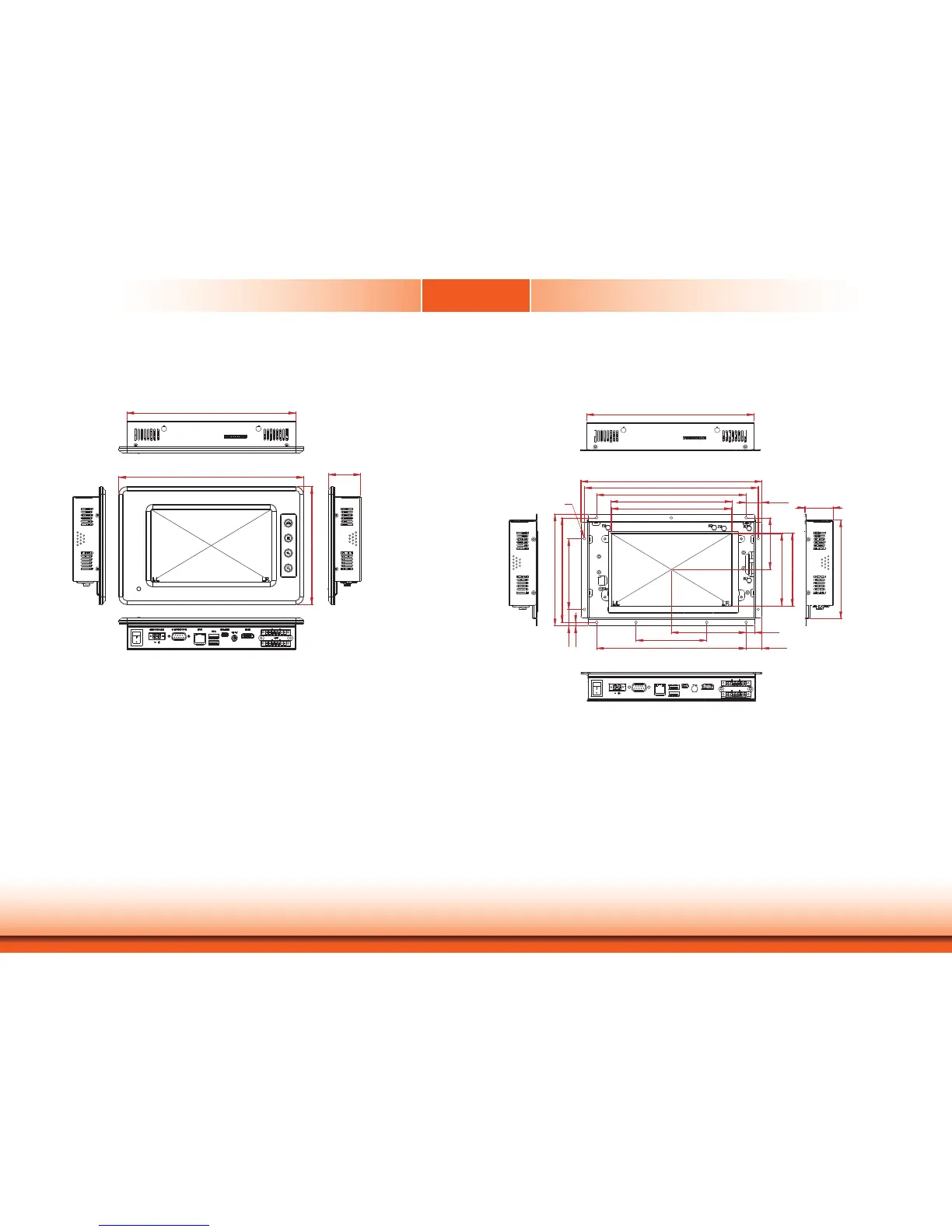

Mechanical Dimensions
KS211
KS212
Chapter 1
Left View
214.60
235.00
150.00
40.80
Bottom View
Right View
Top View
Front View
125.60
35.80
90.00
20.99
4.49
133.00
142.32
11.2095.00
20.20190.00
90.00
153.00 (A,A FOR T/P)
154.40 (V,A FOR T/P)
190.00
221.00
230.40
20.20
65.85
92.04 93.40
214.60
(A,A FOR T/P)
(V,A FOR T/P)
Ø3.50
Bottom View
Right View
Top View
Front ViewLeft View
