Chapter 3 Ports and Connectors
Ports and Connectors

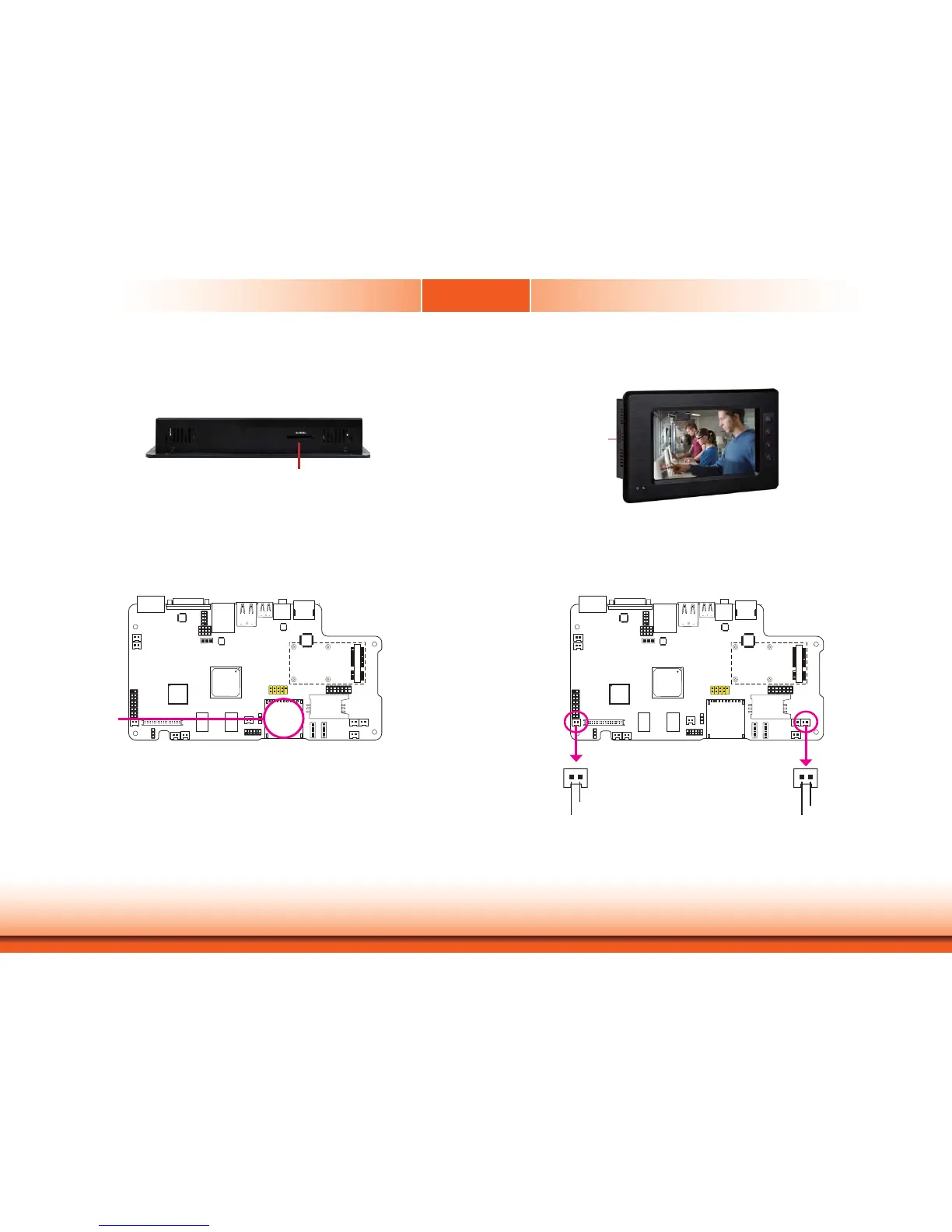

Top Panel I/O Port
Chapter 3
SD/MMC
The front panel I/O port consist of the following:
• 1 SD/MMC card socket
SD/MMC
SD/MMC
card socket
This expansion port is used to insert a Secure Digital (SD) or Multimedia Card (MMC) device.
Aside from storing data files, an SD card is also capable of storing powerful software applica-
tions.
Side Panel I/O Port
2W built-in speaker
The side panel I/O port consist of the following:
• 2 2W built-in speaker (right and left sides)
Built-in Speaker
1
AOUT_R+
AOUT_R-
AOUT_L+
AOUT_L-
The amplify connectors right/left which have amplifying feature are used to connect external
speakers. Using the same signal cable to connect with external speaker.
1
AMP_R
AMP_L
