Chapter 3 Hardware Installation
Chapter 3

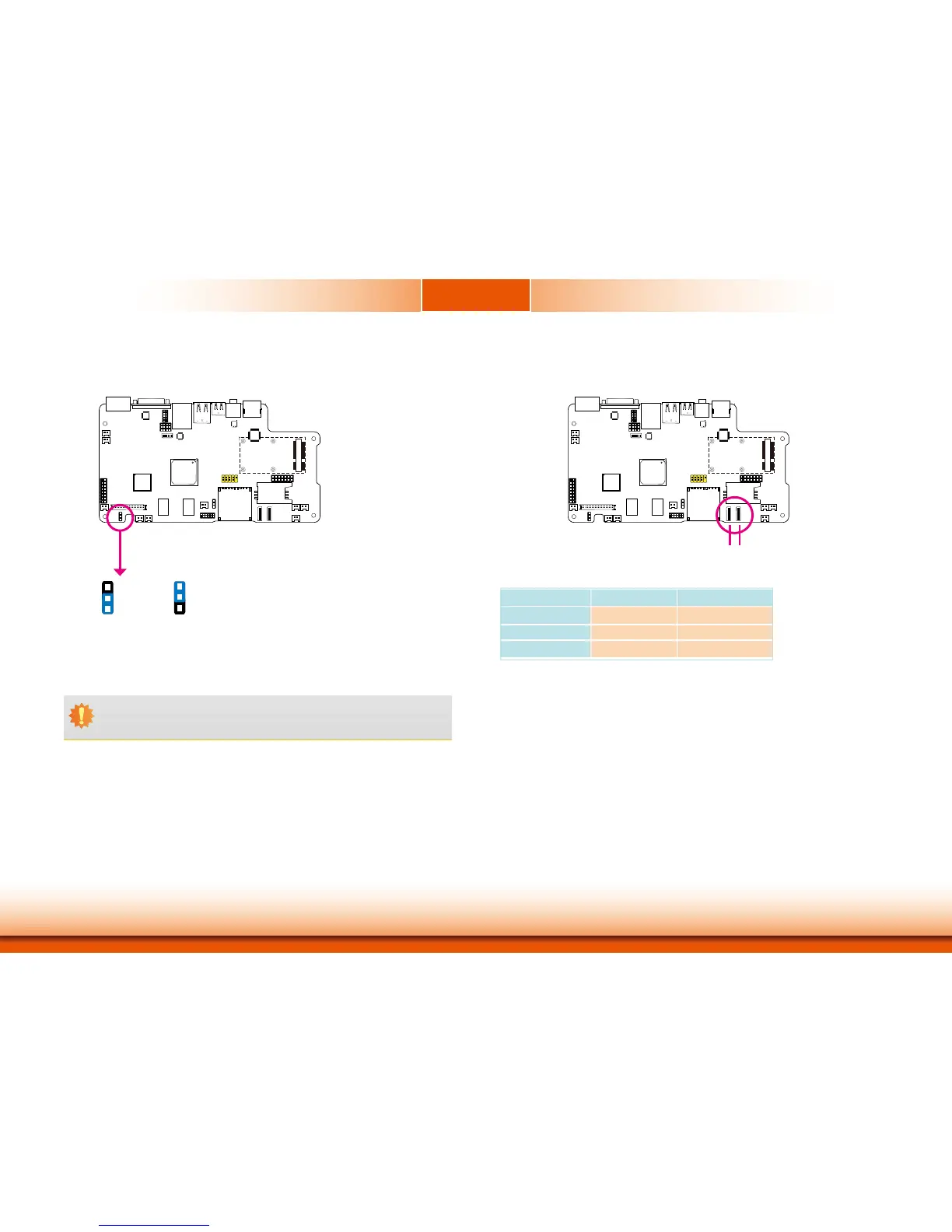

Panel Power Select MMC/SD Mode Select
2-3On:
+3.3V (default)
1-2On:+5V
J11 is used to select the power that supplies with the LVDS panel.
Important:
Before powering-on the system, make sure J11’s setting matches the LVDS panel’s
specification. Selecting the incorrect voltage will seriously damage the LVDS panel.
J11
3
1
2
3
1
2
SW28 SW29
MMC/SD Mode SW29 SW28
Program Mode
All off 5,6On
eMMC Boot
2,3,4,7On 1On
SD Boot
2On All off
SW28andSW29areusedtosettheMMC/SDCardsocketviatheselectionsofProgramMode,
eMMC Boot, or SD Boot.
