Chapter 3 Ports and Connectors
Chapter 3

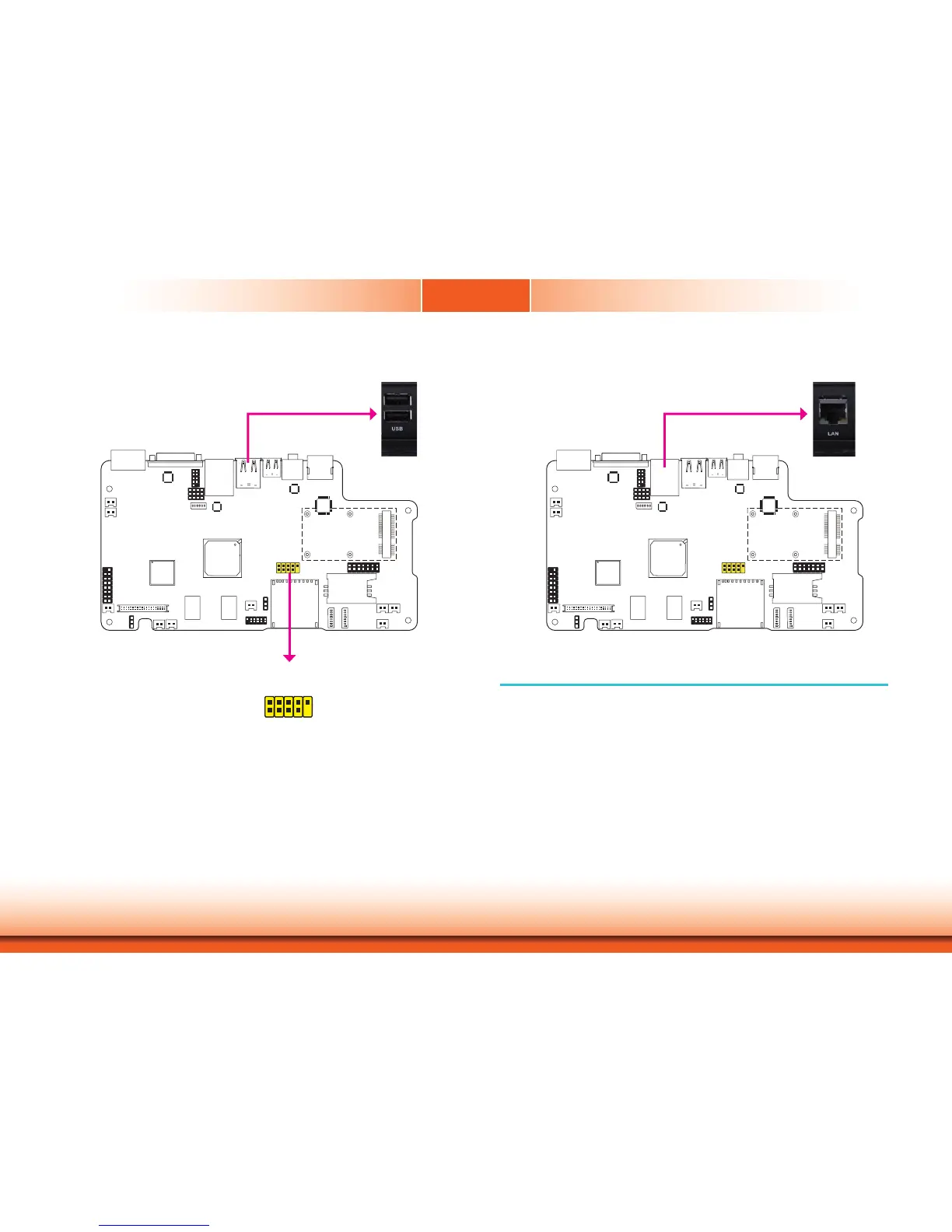

USB 2.0/1.1 Ports
USB allows data exchange between your computer and a wide range of simultaneously acces-
sible external Plug and Play peripherals.
The system board is equipped with two onboard USB 2.0/1.1 ports (USB 4-5). The 10-pin con-
nector allow you to connect two additional USB 2.0/1.1 ports (USB 6-7). The additional USB
ports may be mounted on a card-edge bracket. Install the card-edge bracket to an available
slot at the rear of the system chassis and then insert the USB port cables to a connector.
LAN Port
The LAN port allows the system board to connect to a local area network by means of a
network hub.
Features
• SMSC 8710 10/100M Ethernet transceiver
LAN
10
VCC
-Data
+Data
GND
Key
VCC
-Data
+Data
GND
N.C.
9
1
2
USB 2.0
USB 6-7
USB 2.0
