Hardware Installation
1
LEDs

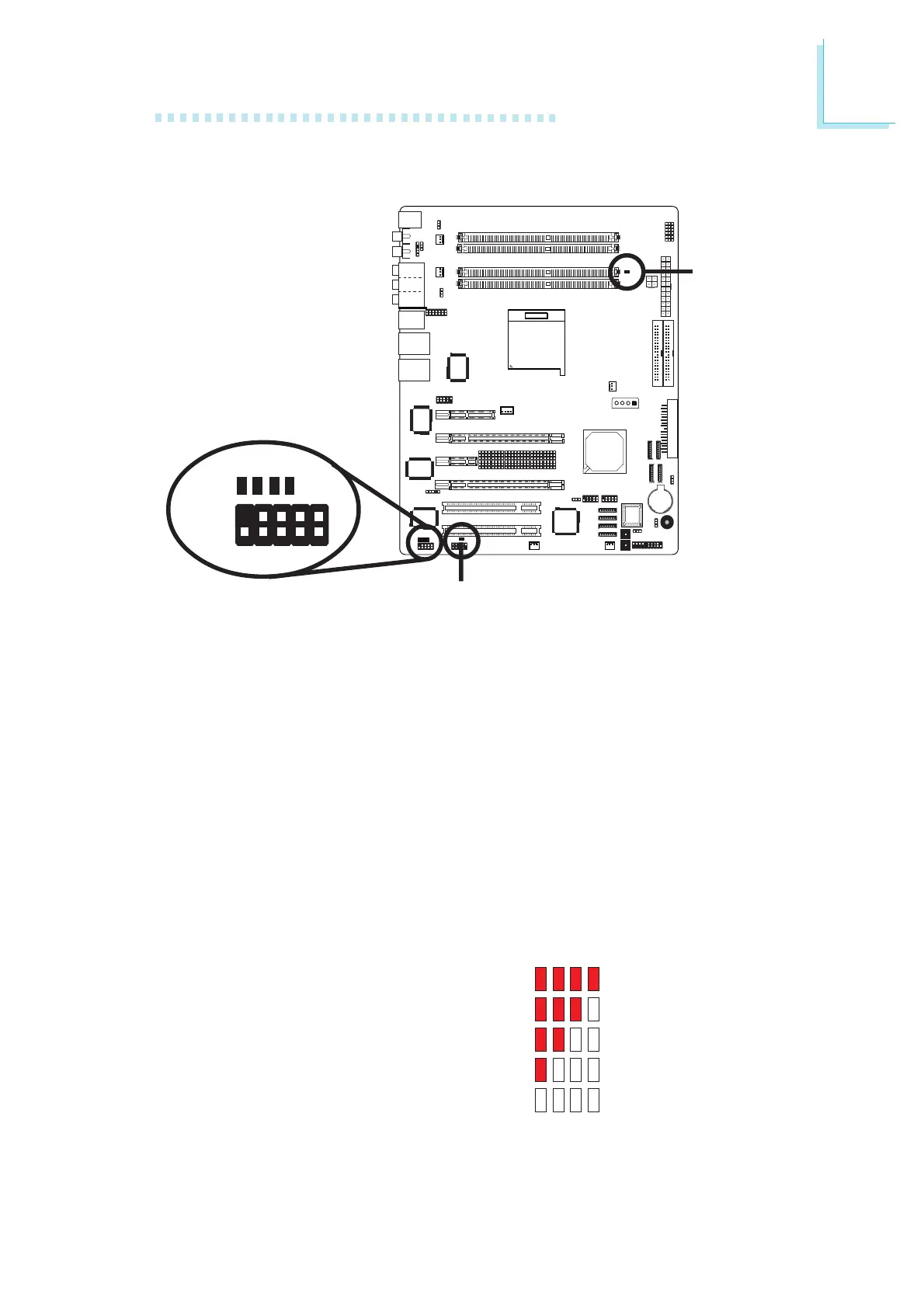

DRAM Power LED
This LED will light when the system’s power is on.
Standby Power LED
This LED will light when the system is in the standby mode.
Diagnostic LEDs
LED 1 to LED 4 are diagnostic LEDs. These LEDs will indicate the
current condition of the system.
Standby Power LED
DRAM
Power LED
Diagnostic LEDs
and connector
J15
1
210
9
System start-up
CPU detected
DRAM detected
VGA detected
System boot-up
1System Condition
1234
234
