Hardware Installation
Rear Panel I/O Ports
The rear panel I/O ports consist of the following:
• PS/2 mouse port
• PS/2 keyboard port
• S/PDIF-in jack
• S/PDIF-out jack
• Karajan audio module
- Line-in jack
- Front right/left jack (Line-out)
- Mic-in jack
- Center/Subwoofer jack
- Rear right/left port jack
- Side right/left port jack
• 1394_1 port
• USB ports
• LAN 1 Gigabit Phy port
• LAN 2 Gigabit PCI port (for “nF4 SLI” and “nF4 Ultra” models
only)

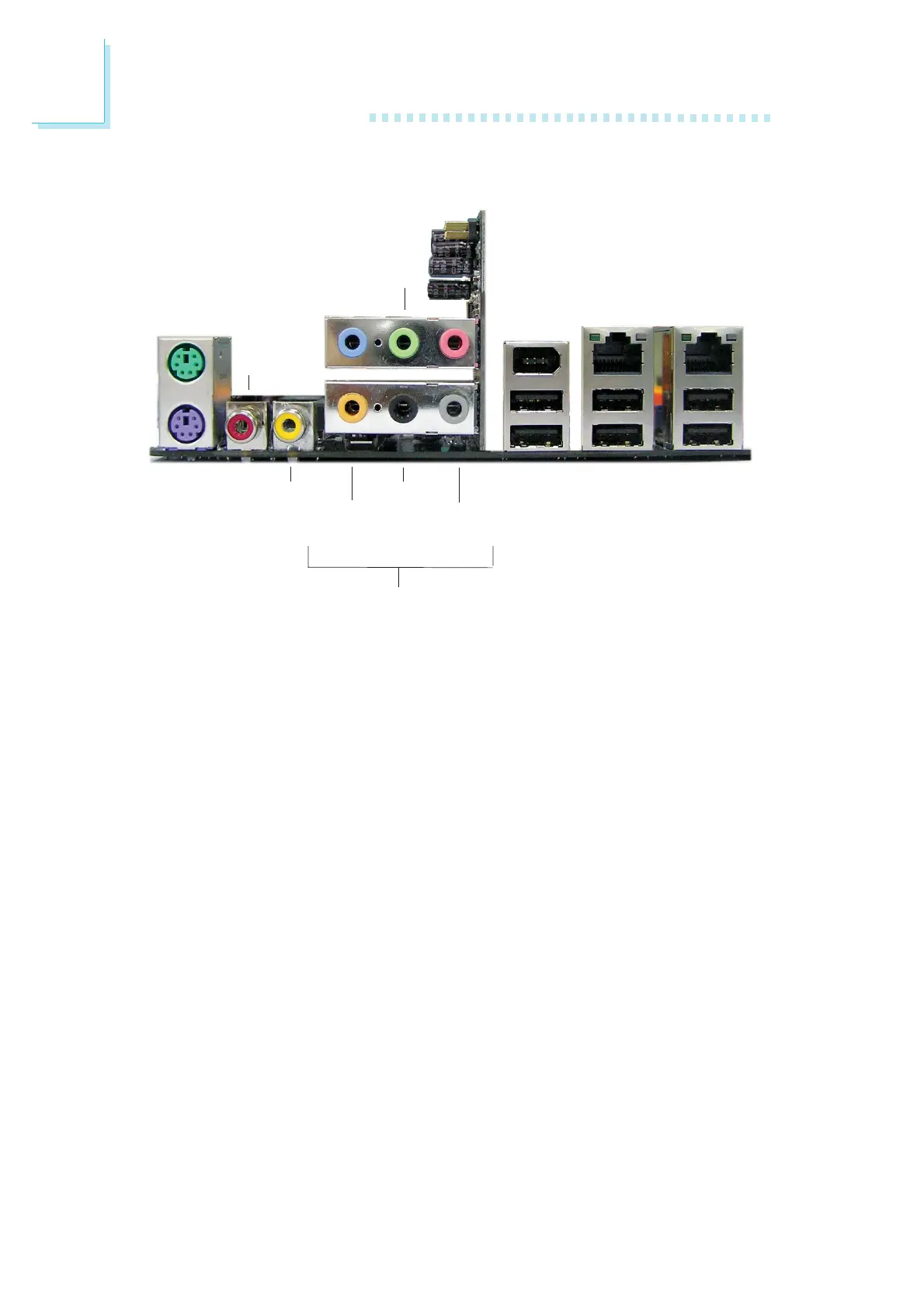

PS/2
Mouse
PS/2
K/B
S/PDIF-in
S/PDIF-out
Line-in
Front R/L
(Line-out)
Mic-in
Center/
Subwoofer
Rear R/L
Side R/L
1394_1
USB 1-2 USB 3-4 USB 5-6
LAN 2LAN 1
Karajan audio module
