Hardware Installation
1
Cooling Fan Connectors

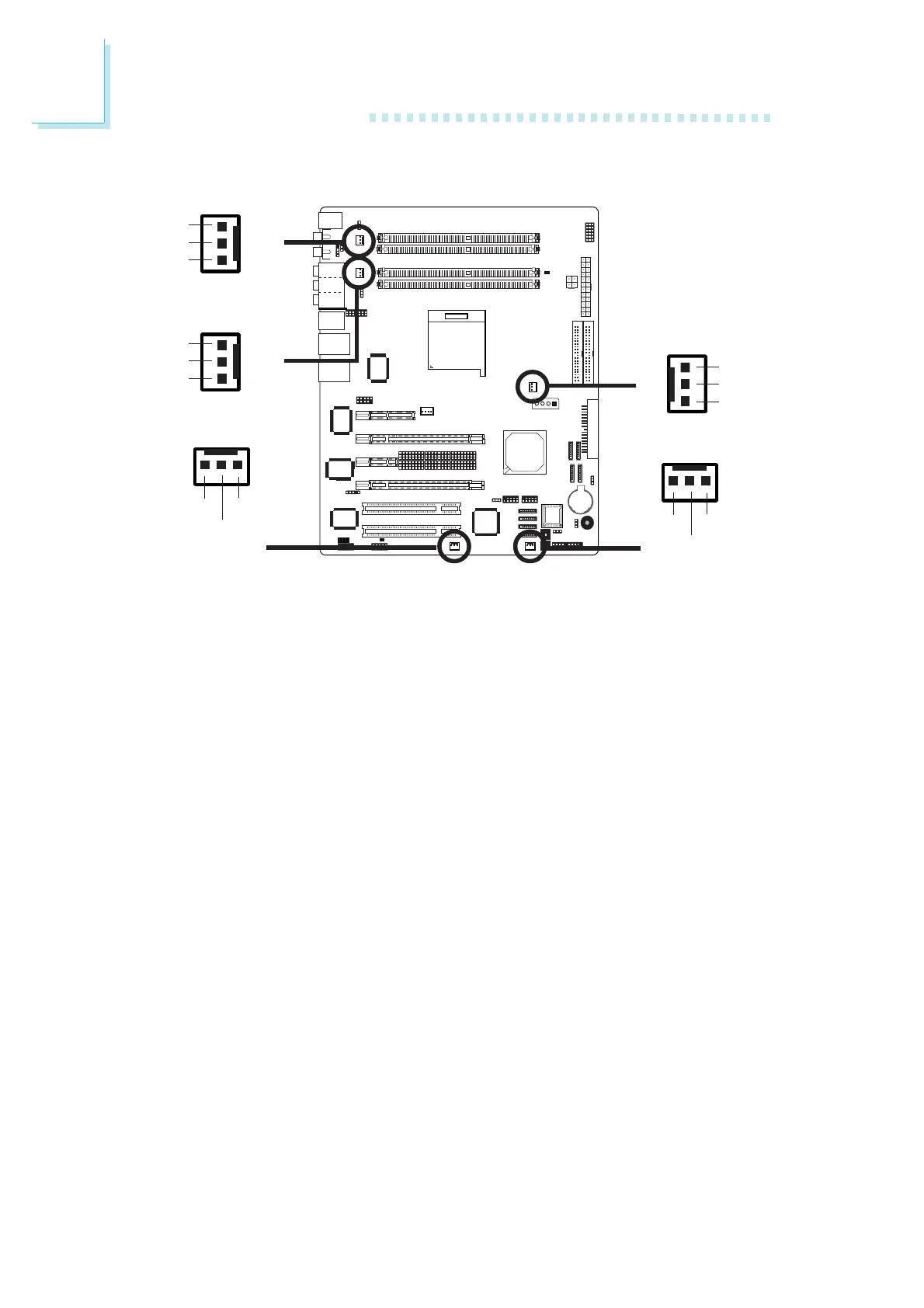

Connect the CPU fan’s cable connector to the CPU fan connector
(J31) on the system board. Fan 2 (J32), Fan 3 (J30), Fan 4 (J9) and
Fan 5 (J6) are used to connect additional cooling fans. The cooling
fans will provide adequate airflow throughout the chassis to prevent
overheating the CPU and system board components.
BIOS Setting
The “PC Health Status” submenu of the BIOS will display the current
speed of the cooling fans. Refer to chapter 3 for more information.
X
X
X
Fan 3
Fan 2
X
1
3
Ground
Power
Sense
X
CPU fan
1
3
Ground
Power
Sense
1
3
Sense
Power
Ground
31
Ground
Power
N. C.
Fan 5
31
Ground
Power
N. C.
Fan 4
